HLC-D60
Healicom
Product Description

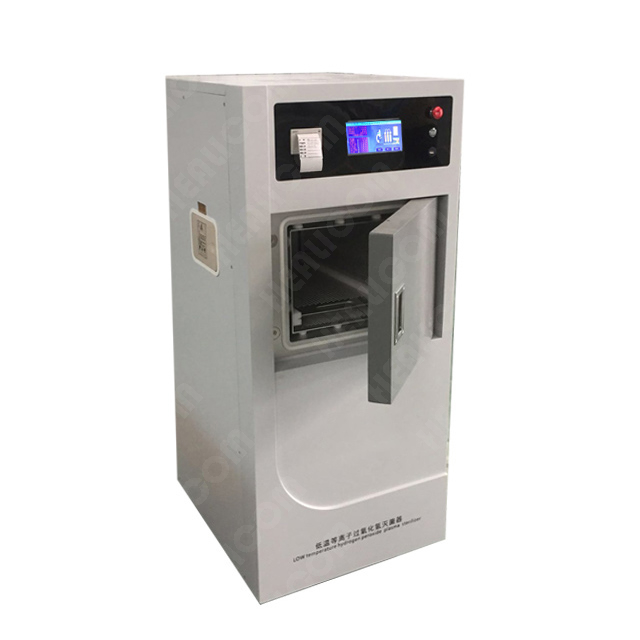

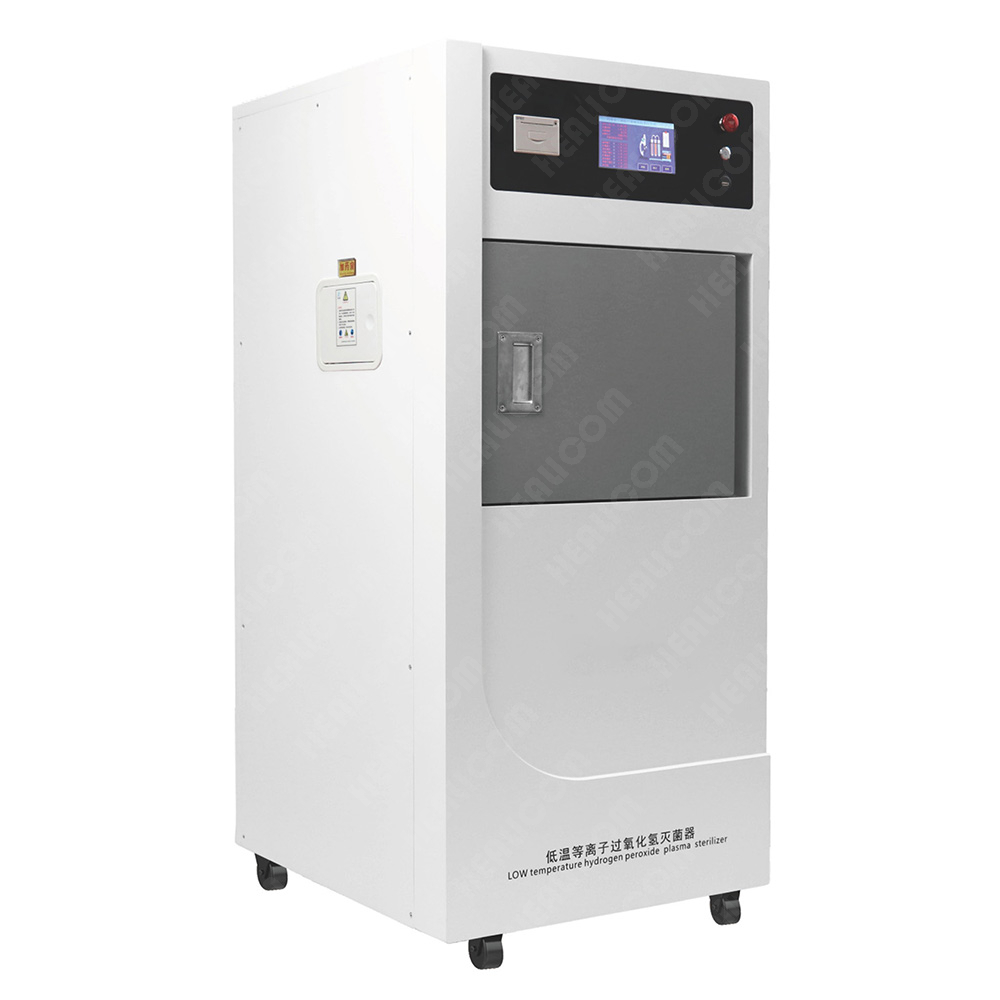

Low-temperature plasma hydrogen peroxide sterilizer is suitable for rapid sterilization of all kinds of medical surgical
instruments in hospital operating room and disinfection supply center.Microcomputer control, touch operation, automatic lifting door.
Hydrogen peroxide H2O2 plasma sterilizer applicable to sterilizer the medical instruments that are thermal instability or
nonmoisture tight. It is not applicable to the sterilization of liquid, powder or cotton fabrics. All the medical instruments that meet the some conditions can be processed by this type of sterilizer.
| Technical Specifications | |
| Product name | Hydrogen Peroxide low temperature plasma sterilizer |
| Chamber volume | 60L |
| Machine Size | 750×630×1510mm(L×W×H) |
| Power supply | AC220V, 50Hz or AC110V, 60HZ |
| Chamber materials | 5052 Aluminum alloy |
| Sterilization temp | 50ºC ±5ºC |
| Sterilization agent | 60% H2O2 |
| Sterilization time | 35 minutes (fast cycle) or 55 minutes (strengthen cycle) |
| Control system | Siemens PLC, touch screen control. The process is fully automatic. |
| Record | Built-in thermal printer, real-time print out data USB port available for historical data download |
| Sensors | Built-in sensors automatically detect temp & pressure to ensure the efficiency and accuracy of the condition. |
| Protective functions | Overvoltage and over-temperature protection functions available |
| Filters | Oil-mist exhaust filtration system and air filter. The air filtration accuracy is less than or equal to 0.2μm |
