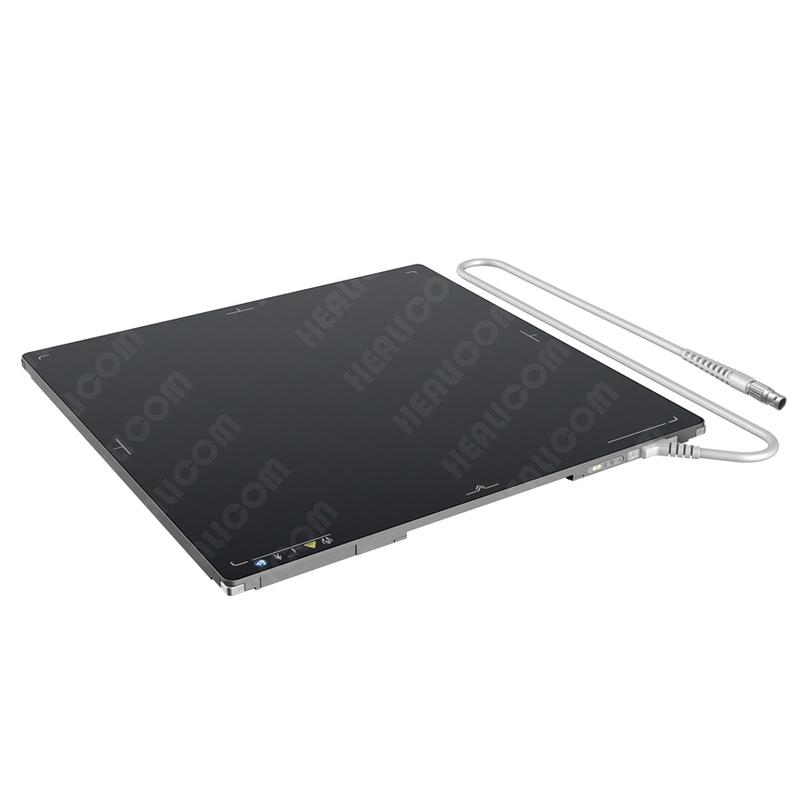

Venu 1717X
Healicom
Product Description
1. Cassette detector per ISO 4090, fits in bucky
2. 139 μm pixel pitch, with 16 bit ADC for more image details
3. Direct deposition CsI for better image quality with lower dose
4. Stable iSync+ Automatic Exposure Detection (AED)
5. Highly reliable, flexible tether
6. Supports a fast and efficient workflow
| Technical specifications | |
| Detector Technology | Amorphous Silicon |
| Scintillator | Csl |
| Active Area (inch) | 17 × 17 |
| Pixel Matrix | 3072 × 3072 |
| Pixel Pitch (um) | 139 |
| Spatial Resolution (lp/mm) | 3.6 |
| AD Conversion (bit) | 16 |
| Power Dissipation (W) | 30 |
| Data Interface | GigE |
| Trigger Mode | AED (optional) / Software / Prep |
| Preview Image Time (s) | 3 |
| Full Image Time (s) | 5 |
| Dimensions (mm) | 460 x 460 x 15 |
| Weight (kg) | 4 |
| Operating Temperature (°C) | 5~35 |
| Storage & Transport Temperature with Package (ºC) | -10 ~ 55 |
| Operating Humidity (% RH) | 30~80 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH) | 10~90 (Non-Condensing) |
