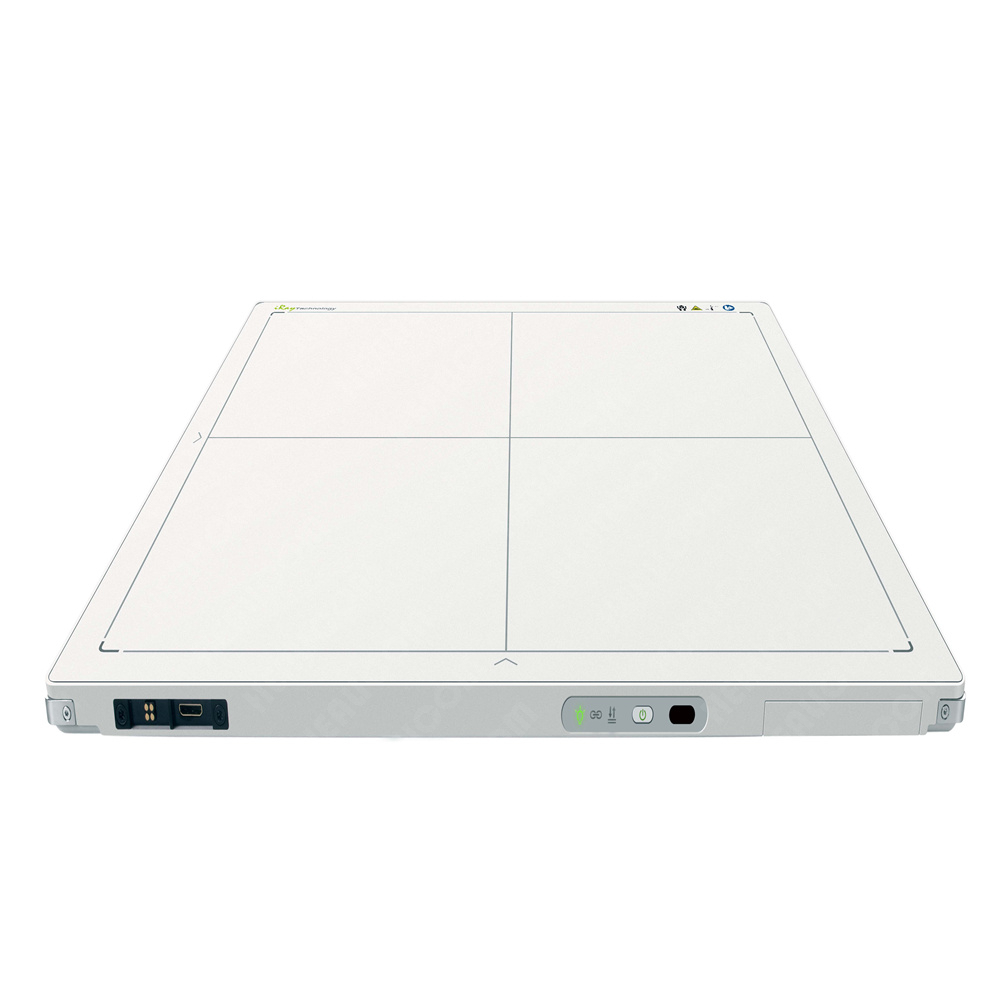

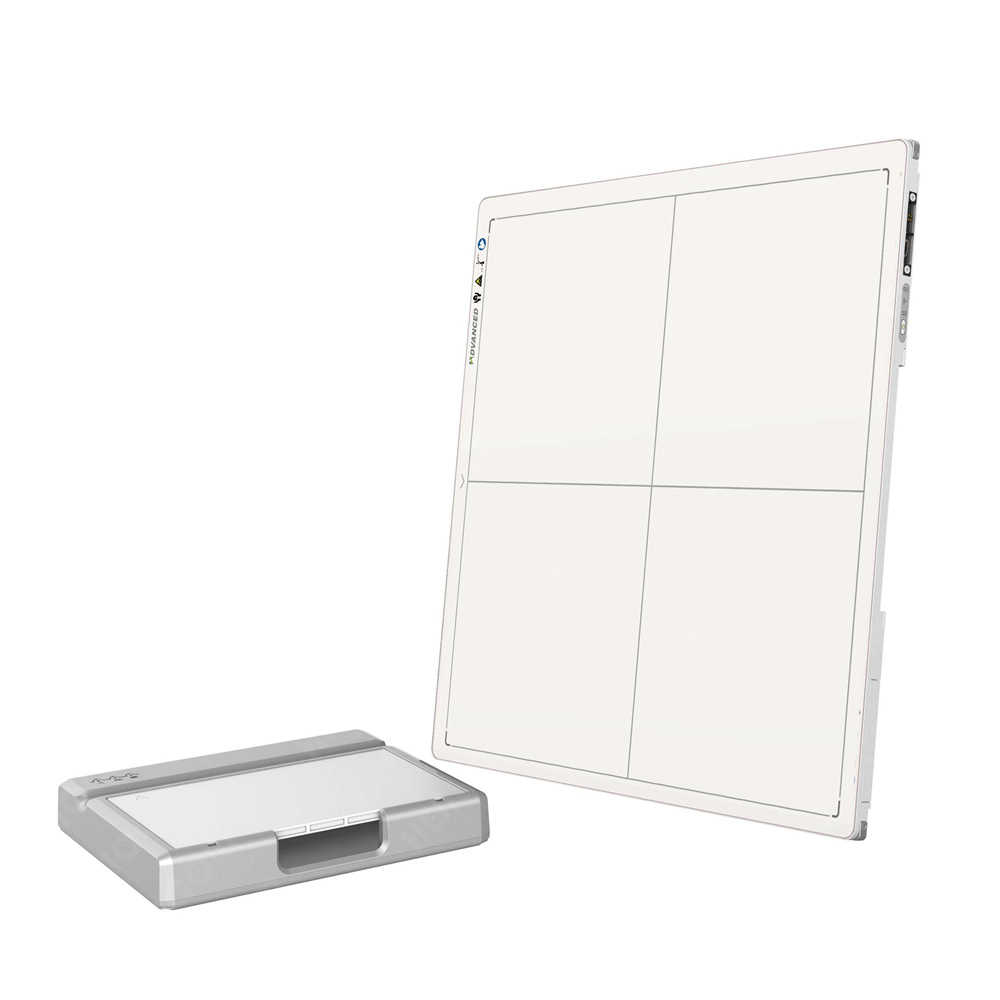

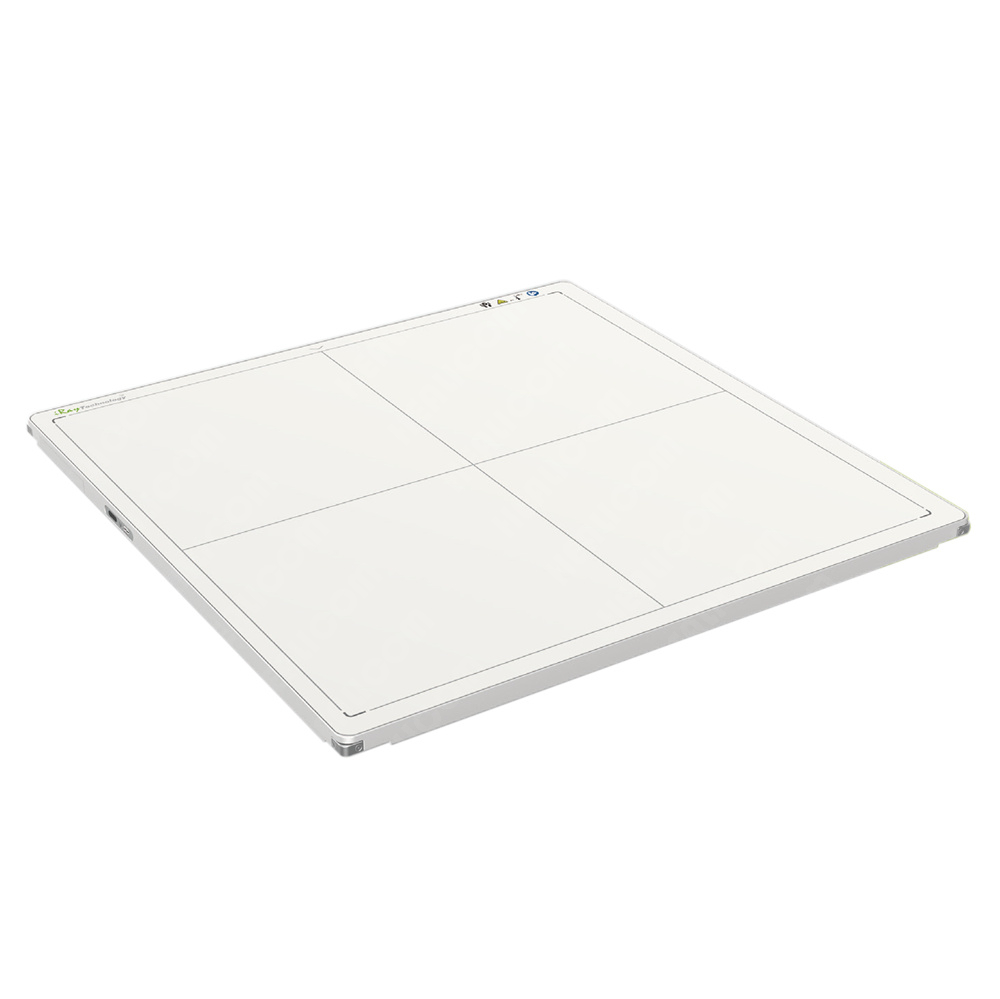

Mars 1717V Medical Wireless x-ray digital DR flat panel detector

Mars 1717V is a smart 17×17 inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.
Availability:
Quantity:

PDF Export

  • Mars 1717V
  • Healicom

Product Description

Features

1. Wireless cassette detector per ISO 4090, fits in bucky

2. 139 μm pixel pitch, with 16 bit ADC for more image details

3. Direct deposition CsI for better image quality with lower dose

4. Stable iSync + Automatic Exposure Detection (AED)

5. Dual band (2.4 and 5 GHz) wireless support with easy sharing

6. Long battery life and smart workflow


Technical Specifications
Detector Technology
Amorphous Silicon
Scintillator
Csl
Active Area (inch)
17 × 17
Pixel Matrix
3072 × 3072
Pixel Pitch (um)
139
Spatial Resolution (lp/mm)
3.6
AD Conversion (bit)
16
Battery Autonomy (h)
8
WIFI
2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode
AED (Optional) 1 Software
Full Image Time (s)
5
Dimensions (mm)
460 x 460 x 15
Weight (kg)
4.6
Static Loading
150kg Uniformly
Ingress Protection
IPX1
Operating Temperature (°C)
5~35
Storage & Transport Temperature with Package (ºC)
-20 ~ 55
Operating Humidity (% RH)
10 ~ 90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH)
5 ~ 95 (Non-Condensing)
