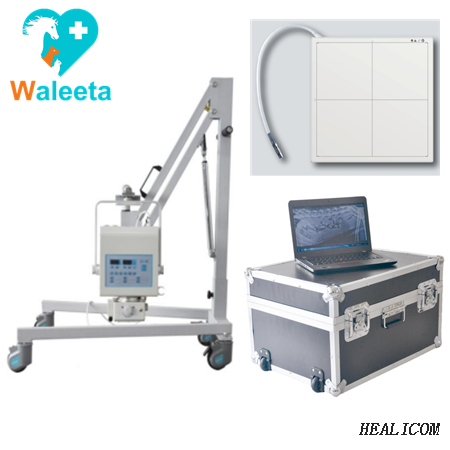

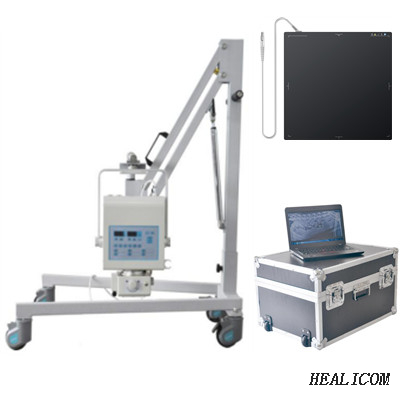

High Quality WTX-04DR Digital Flat-pannel Detector Portable Aluminum Box Digital X-ray Machine

Availability:
Quantity:

PDF Export

  • WTX-04DR
  • Healicom

Product Description

High Quality WTX-04DR Digital Flat Pannel Detetor Portable Aluminum Box Digital X-ray Machine


Applicable scope

4 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in pet clinic, etc.



Characteristics

1. Deft and concise

2. 6 periods of digital LED display

3. 48 kinds of presupposed anatomy memory pattern choices

4. Accuracy control method of simulation and double digital loops

5. High precision control of tube voltage, tube current

6. Failure self-protection, self-diagnosis




Specification





Model

WTX-04DR

Input power

Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;

Power capacity: ≥5kVA; Inner resistance≤0.5Ω

Maximum output power

P =110kV×36mA=4kW

Nominal power

100kV,40mA,0.1s,4kW

Frequency

≥40kHz

KV adjusting range

40kV~110kV, step adjustment is 1 kV

mA adjusting range

36mA~60mA

mAs adjusting range

1mAs-190mAs,shifted adjustment

adjusting range

0.04s~3.2s

Toshiba -ray tube

Focus:0.6/1.6mm;

Anode heating capacity:76kHU

Size

290×260×230 mm

Weight

18.8kg

Accessories

1.Remote control  2.Aluminum box 3.Stand machine frame

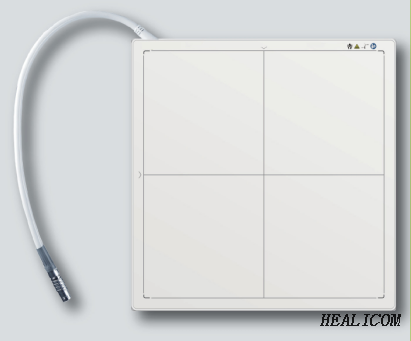

VENU1717X

1.Light weight design/IP54 protection/ fast and efficient workflow/excellent image quality with lower dose

2.Venu1717X is a full size CsI based fixed A-Si flatpanel detector. Its cutting-edge design qualifies itfor high-end X-Ray DR System application.

3.Innovative A-Si portable detector for human and veterinary use Venu1717X
