WTE-9000A
Healicom
Product Description

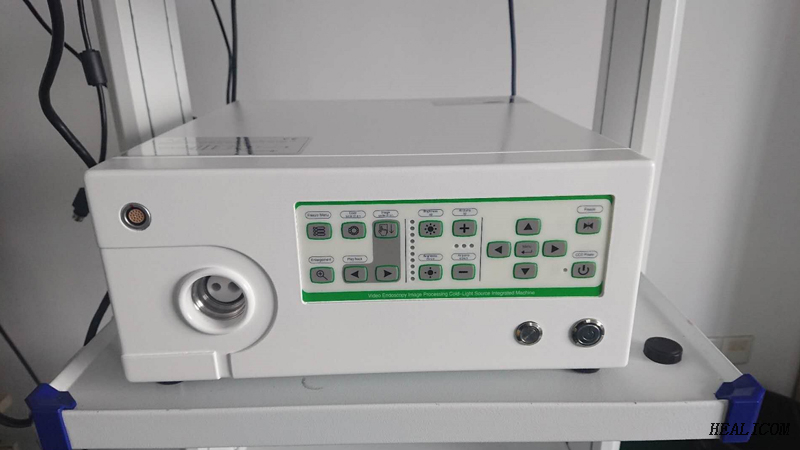

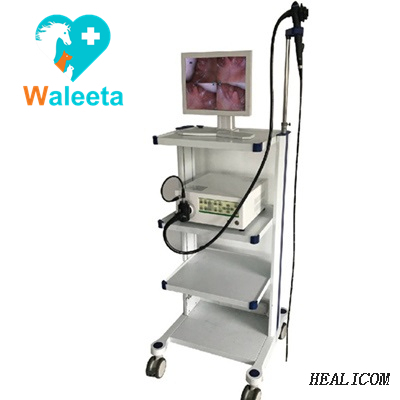

High Quality WTE-9000A 19'' LCD Monitor Trolley Endoscope Process&Light Source Veterinary Endoscope
1-1 | Top diameter | ≤Φ8.0mm |
1-2 | Input tube | ≤Φ8.0mm |
1-3 | Biopsy channel | ≥Φ2.0mm |
1-4 | Working length | ≥1500mm |
1-5 | Total length | ≥1800mm |
1-6 | Field of view | ≥140º |
1-7 | Depth of field | ≥3-100mm |
1-8 | Image solution | ≥480000pixels (CCD) |
1-9 | Bending angles | ≥ up210º down≥90º left&right≥100º maximum 230 |
1-10 | Image frozen | 4 images frozen,stroe,playback. |
1-11 | warranty | One year |
2-1 | Contrast adjustment | 0-128 |
2-2 | Image adjustment | color adjustment level: 0-128,vessel enhancement |
2-3 | Metering mode | AVE/PEAK |
2-4 | Image enhance | 0-30 |
2-5 | White balance | Auto/manual white balance |
2-6 | Pump | pressure 30-80Mpk,air supply 4L/min-10L/min |
2-7 | illuminance | ≥200000Lx,LED light source 30000hours life. |
