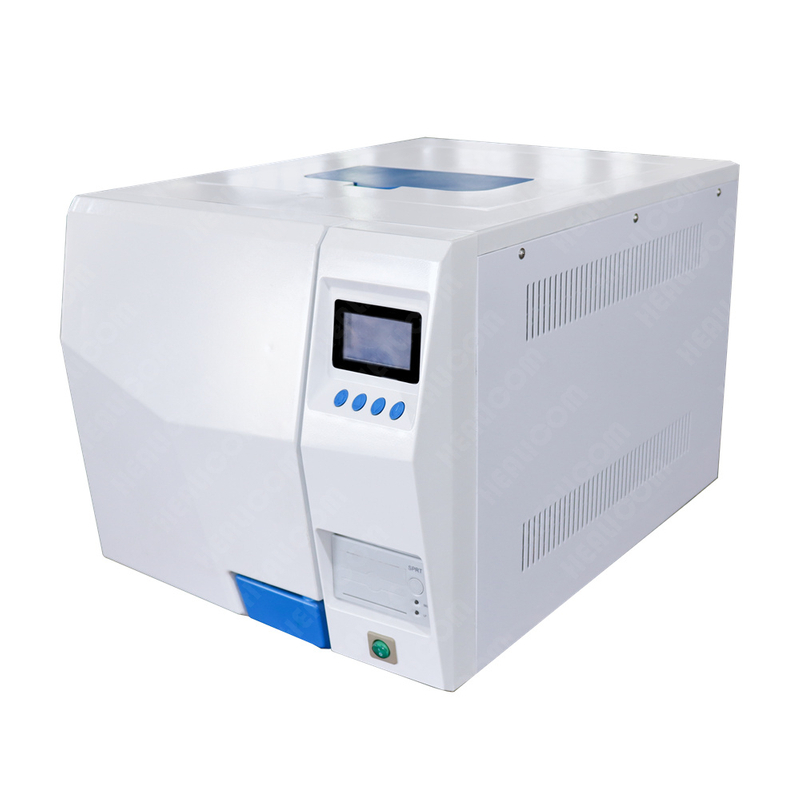

HTS-AD
Healicom
Product Description
Characteristics
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrumentis less than 0.2%.
• LCD display working status, touch keys.
• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,multi apertures and
inset pipes. It makes sure the instrument can be sterilized completely.
• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
• It is installed with BOWIE&DICK which measures the penetration of water steam.
• It has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.
• Built-in mini printer which can record the sterilizing information.
• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.
• It inactivates the HIV, HBV, BSE, and bacillus efficiently.
• This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.
Technical specifications | ||
Model | HTS-20AD | HTS-24AD |
Sterilizing chamber volume | 20L φ250×420 | 24L φ250×520 |
Working pressure | 0.22Mpa | |
Working temperature | 134ºC | |
Temperature adjust range | 105ºC-134ºC | |
Time for sterilization | 0-99min | |
Heat average | ≤±1ºC | |
Power | 1.5KW/AC220V 50Hz | |
Sterilizing plate | 340×200×30mm (3piece) | 400×200×30mm (3piece) |
