HS-A
Healicom

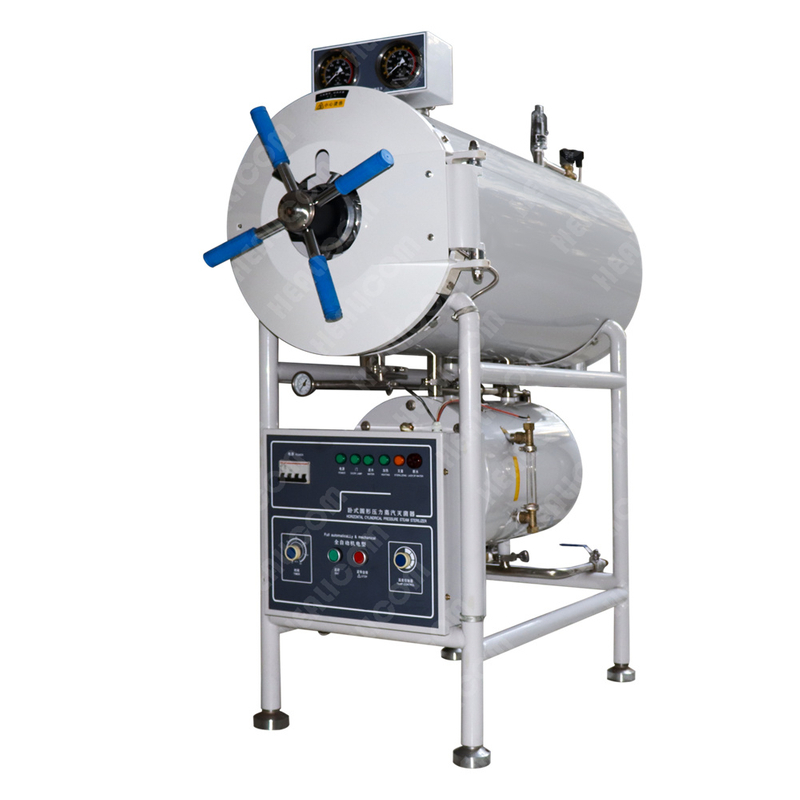

Product Description
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
Technical specifications
Model | HS-150A | HS-200A | HS-280A | HS-400A | HS-500A |
Sterilizing chamber volume | 150L φ440×1000 | 200L φ515×1000 | 280L φ600×1000 | 400L φ700×1100 | 500L φ700×1300mm |
Working pressure | 0.22Mpa | ||||
Working temperature | 134ºC | ||||
Temperature adjust range | 40ºC-134ºC | ||||
Time for sterilization | 0-60min | ||||
Time for drying | 0-60min | ||||
Heat average | ≤±2ºC | ||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz |
Dimension(mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Package dimension(mm) | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
G.W/N.W | 320/240kg | 350/260kg | 465/365Kg | 530/420Kg | 580/470Kg |
