HO-500 Medical Full Digital Ophthalmic A B Ultrasound Scanner

HO-500 A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HO-500

  • Healicom

Product Description

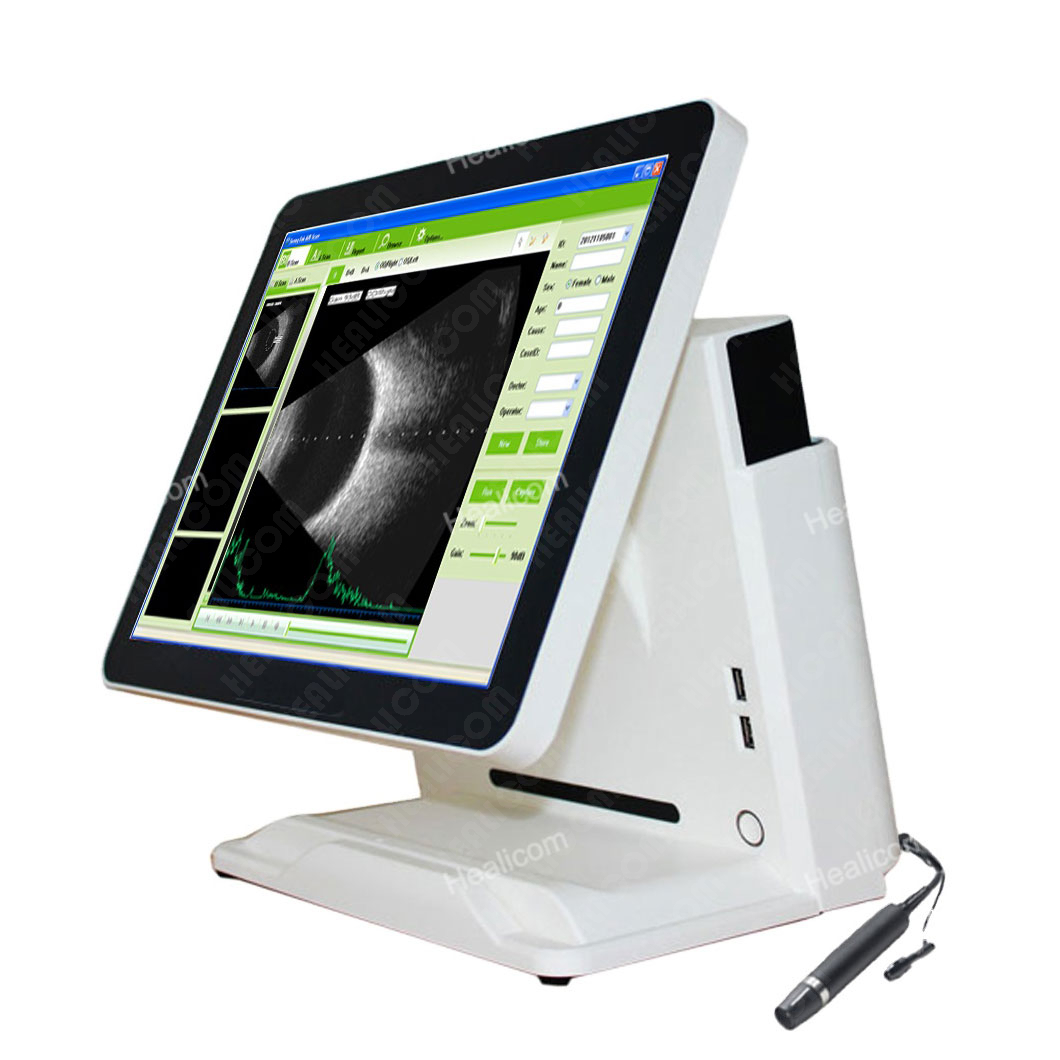

HO-500 Medical Full Digital Ophthalmic A B Ultrasound Scanner

18

Product Name
Ophthalmic A / B Ultrasound Scanner
Model
HO-500
B scan
Frequency
10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode
Sector Scanning
Magnify
Multi continuous magnification,Real-Time magnification
Resolution
Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision
Lateral ≤10%; Vertical≤5%
Depth
60mm
Enhance the part of vitreous body and retina
Gain of probe
30dB-105dB
Scanning Angle
53°
Gray Scale
256
False Color
Multi colors. OCT
Measurement type
Multi group distances, perimeters and areas
Image post processing
multiple curves processing, Pseudo-color processing curve
Movies
100 images movie review, AVI JPG format image output
A scan
Frequency
10MHz, with LED
Depth
40mm
Precision
±0.05 mm
Measurement
Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode
Phakic / Aphakic / Dense / Various
IOL IOL Formula
SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS
Stat. Calculation
Average and standard deviation
Store
10 Scanning results for each eye
Others
Display Mode
B, B+B, B+A, A
Hint
preset keyword
Case Search
Multi-keywords
Screen
15 inch LCD
Built-in battery
can use 4 hours
