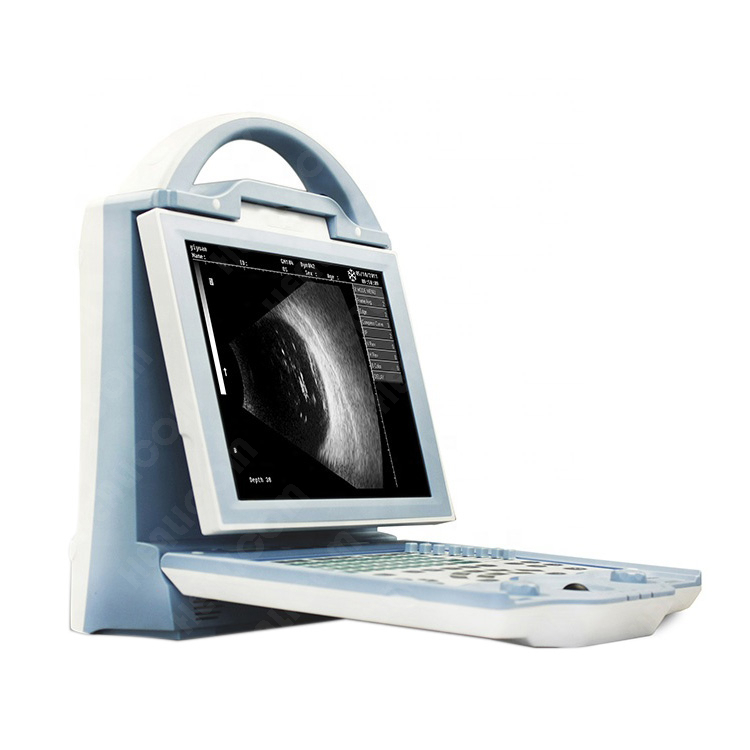

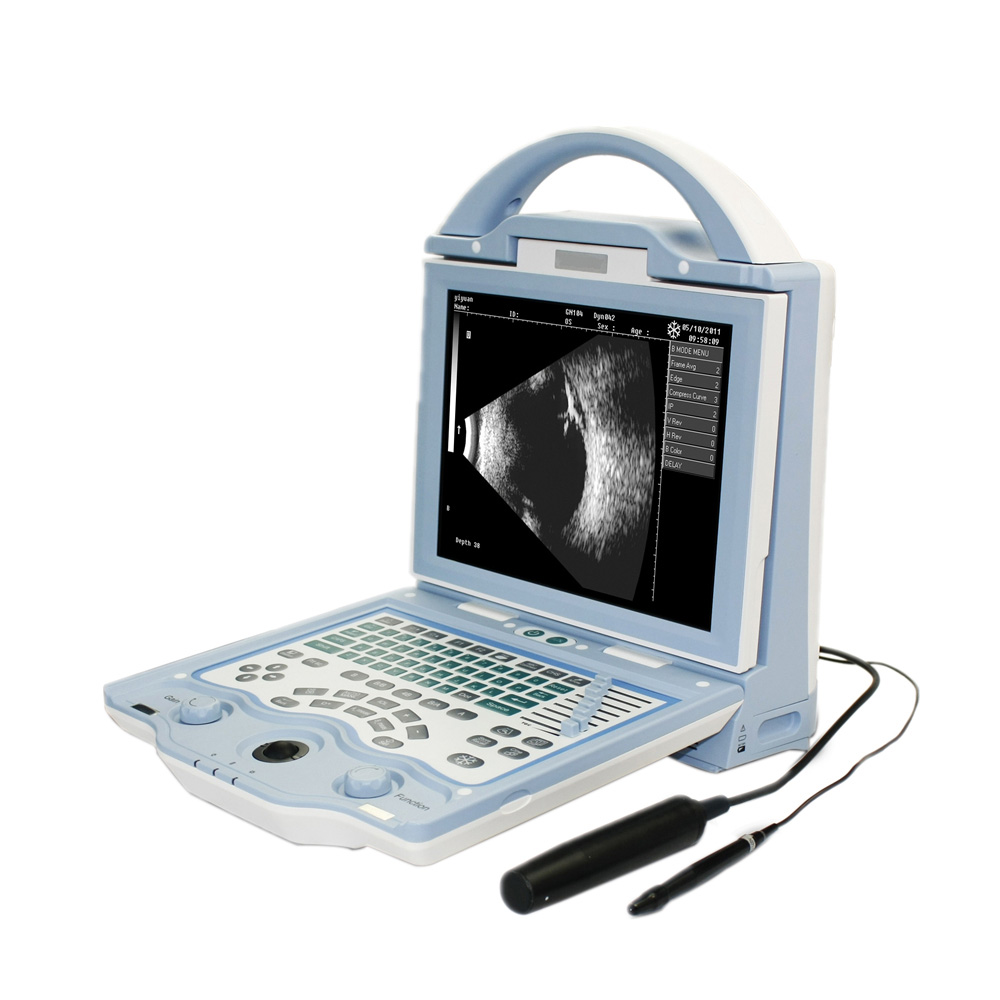

HO-300 Medical Portable Full Digital A / B Ophthalmic Ultrasound Scanner
![]()
Abundant data storage • Built-in 8GB D disk can store data, images and reports

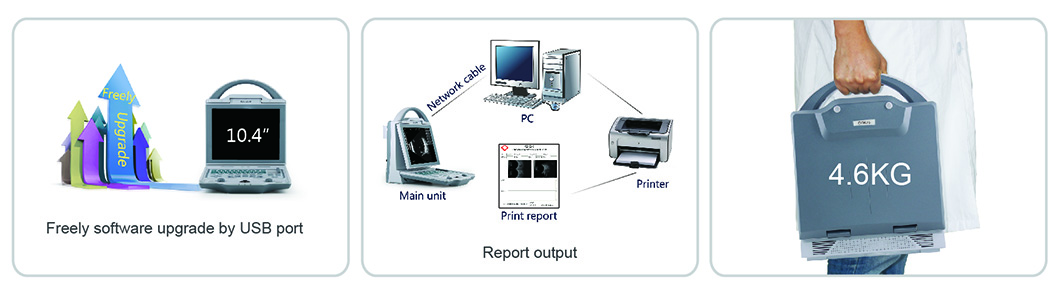

• USB Support U disk, software upgrade and one-key storage
• DICOM3.0 Network port makes data transmission easily
Practical workstation
• The system comes with simple, practical, easy-to-work software to print and manage data
• Report-print, screen copy, IOL report, case reports with images
![]()
A scan parameter
• 10MHz with Fixation Red Light
• Resolution: 0.01mm
• Accuracy: ±0.1mm
• Measuring Range: 15~40mm
• Measuring parameters: ACD, Lens, Vitreous body, AL
• Measuring method: Contact and Immersion
• Modes: Support Normal, Cataract, Aphakic and Special eye model
• IOL formulas: SRK-T, SRK-II, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS Save up to 100 group of results

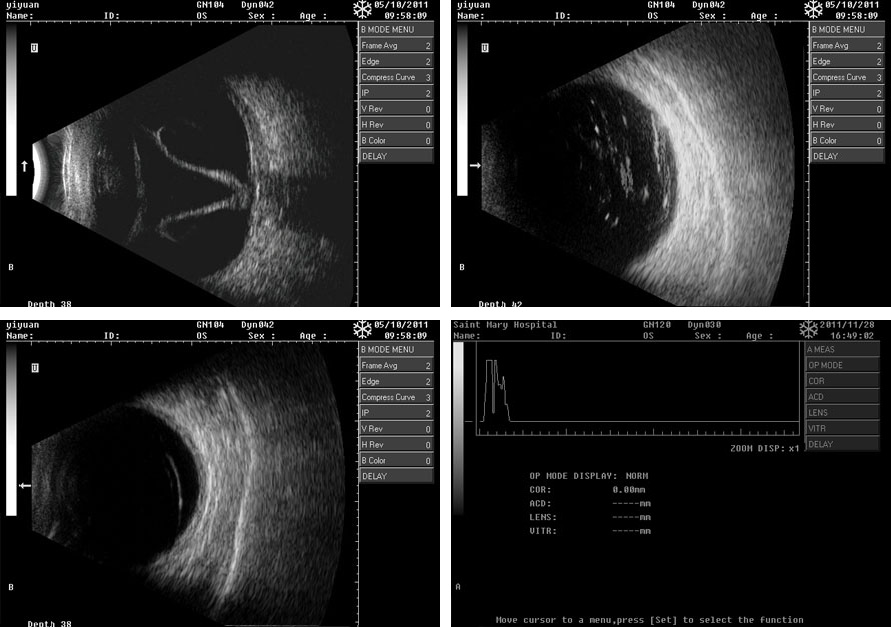

B scan parameter
• 10MHz probe, 10 frames/sec
• Scanning Angle: 53°
• Gain: 0~120dB adjustable, 8 steps manually adjustable TGC
•Distance, circumference, area, volume and angle measurement
• Pseudo-color: 8 kinds
• Cineloop: 128 frames, measurement available
• Post processing: 8 groups of curves
| Standard configuration | Optional configuration |
| Main unit | Battery |
| 10MHz Mechanical sector B probe | Video recorder |
| 10MHz imported A probe | Ethernet switch |
| Foot switch | Immersion shell |
| Network cable | Print BOX |
![]()
