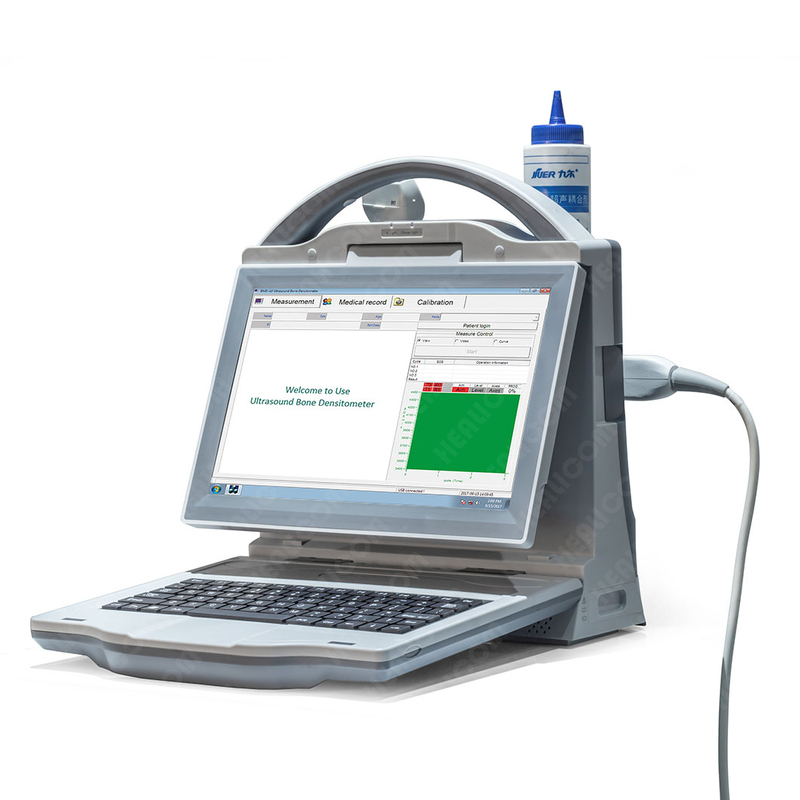

HMD-A3
Healicom
Product Description
Features:
1. Using the full dry technology, makes diagnostic more convenient.
2. The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
3. The better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
4. Use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
5. With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
6. With a special correction system, to correct the system error effectively, get more accurate measurement results.
7. Multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
8. It with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between
the age of 0 and 100.
9. English menu
10. the first one pass EMC test
11. CE certificate.
12. ROHS certificate
13. LVD certificate.
12. ISO Certificate.
| Technical Specifications | |
| Measurement parts | radius and Tibia |
| Measurement mode | double emission and double receiving |
| Measurement parameters | Speed of sound (SOS) |
| Analysis Data | T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk) |
| Measurement Accuracy | ≤0.25% |
| Measurement Reproducibility | ≤0.25% |
| Measurement time | <25 seconds |
| Probe frequency | 1.20MHz |
| Date analysis | it adopt a special intelligent real-time data analysis system, it selects the adult or child databases according to the age automatically |
| Temperature control | Perspex sample with temperature instructions |
| Probe measurement navigation | this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed, improving the data Accuracy |
| Probe crystal indication | it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception |
| Daily Calibration | automatic calibrating after power on |
| Monitor | 10.4’ color HD color LED monitor |
