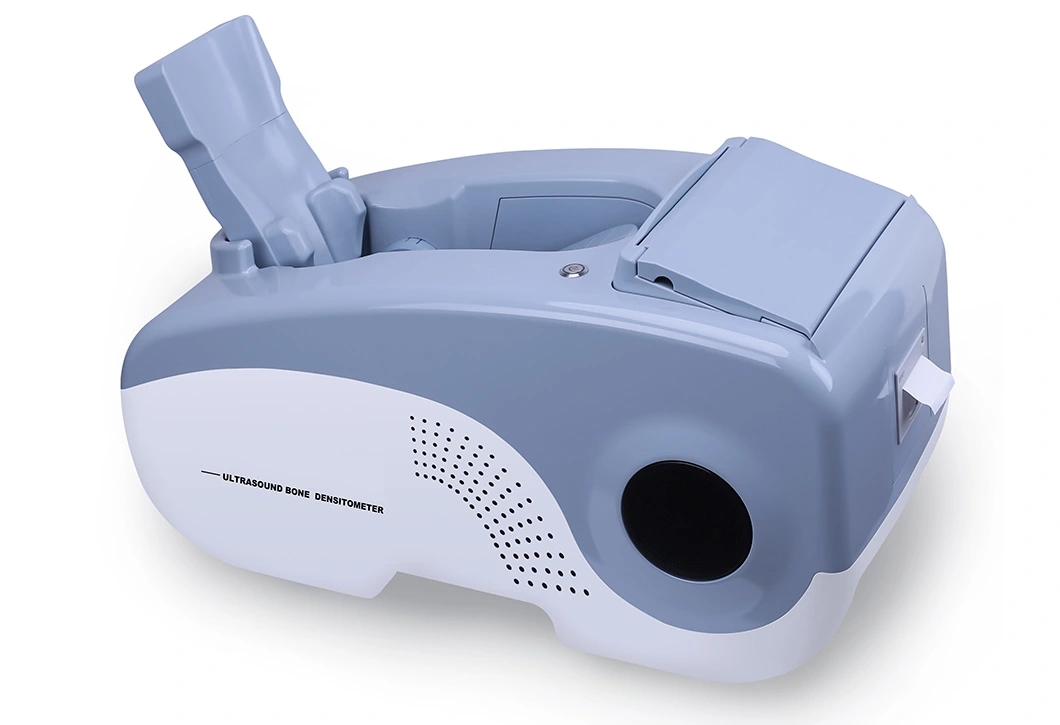

HJ3000
Healicom
Product Description
• The equipment applies oil balloon probes, with elegant appearance and comfortable feelings. Measurement results are accurate as well as
stable. Used a new hardware, the software interface is much more beautiful, more convenient to operate and easier to learn, bringing users
excellent experience.
• This equipment is suitable for all kinds of health and medical institutions, and can be used in diagnosis and assessment of the elderly
osteoporosis and teenager bone growth.
Comparison Table | ||
Models | HJ 3000 | HJ 3000+ |
Probe | Fixed | Automatic Adjustment |
Built-in printer | O | √ |

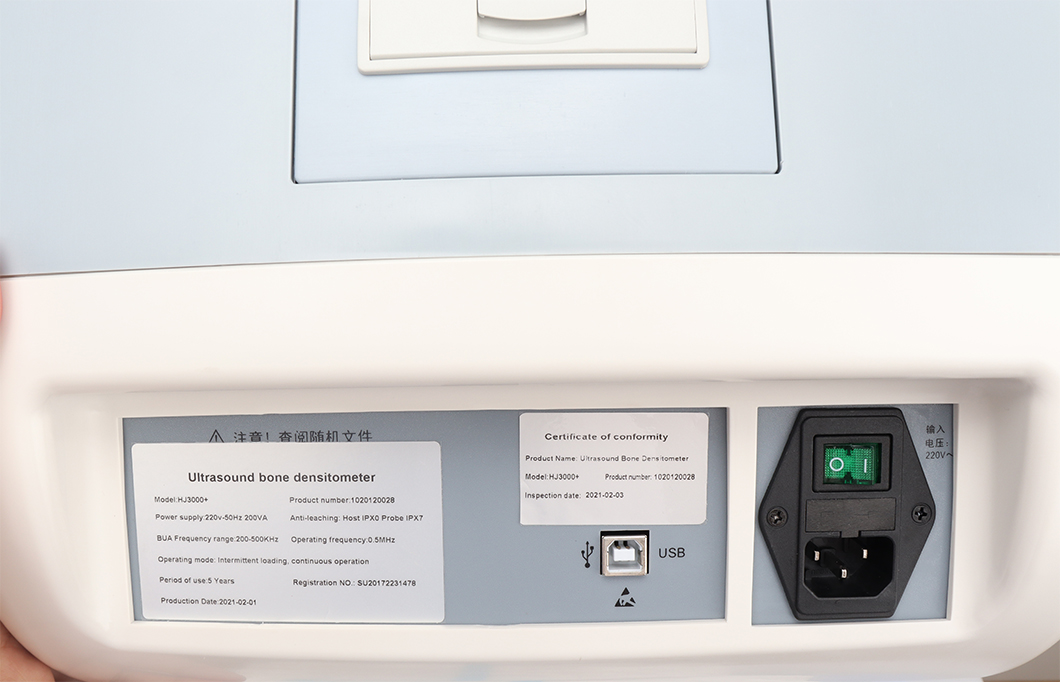

USB Interface | One | Two |
Charging port | O | √ |
Subject group | Adult | Adult + Child |
Applications
Functions
Faster
• Measure quickly and simply, especially suitable for a large number of patients census
More Accurate
• Oil balloon Transducer, searching for the best signal al utomatically
• Temperature compensation system, improving the measurement accuracy
• Use global bone density database, according to patients race to select database
• According to patients'foot size, choosing the different foot plate to reduce errors
More Economical
• The oil balloon is special, which can be used permanently in the equipment life cycle
• Consumables are ultrasound transmission gel and printing paper, economical Safer.
• Painless, non-trauma and non-radiation, can be measured repeatedly
• QUS quantitative ultrasound measuring, especially suitable for pregnant women, children and other special groups
More Authoritative
• Use WHO' S Osteoporosis Diagnosis Standard
More Convenient
• OSTEO HJ3000+ Model Adult / Child calf support can be replaced
• Built-in printer can print quickly
• Can be connected to tablet, can be used anywhere
Product Parameters
Measurement Part: Calcaneus
Measurement Method: Single Element Flat Type, Double-sided ultrasound transmission and reception
UItrasound Parameter: BUA,SOS,OI
Transducers Frequency: 0.5MHz±5%
Measurement Time: ≤25s
Ultrasonic probe diameter: 31.75mm
Operating system: Windows xp / 7 / 8 / 10
Operating Temperature: 10-40°C
Humidity: 30- 70%
Electrical Power Requirement: AC220±10%, 50Hz
Dimension (mm): 645mm x 330mm x 360mm
Weight: 13kg
