HMA-32
Healicom
Product Description

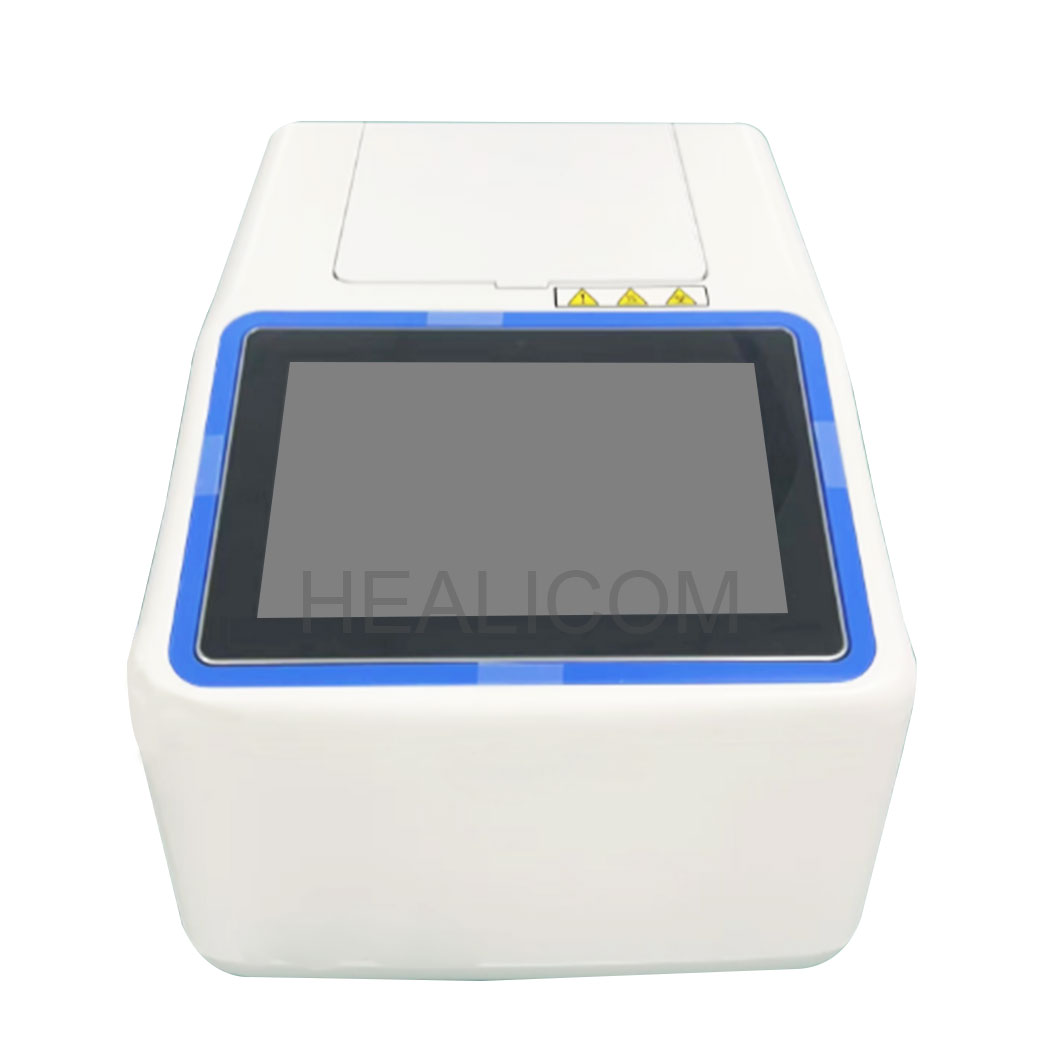

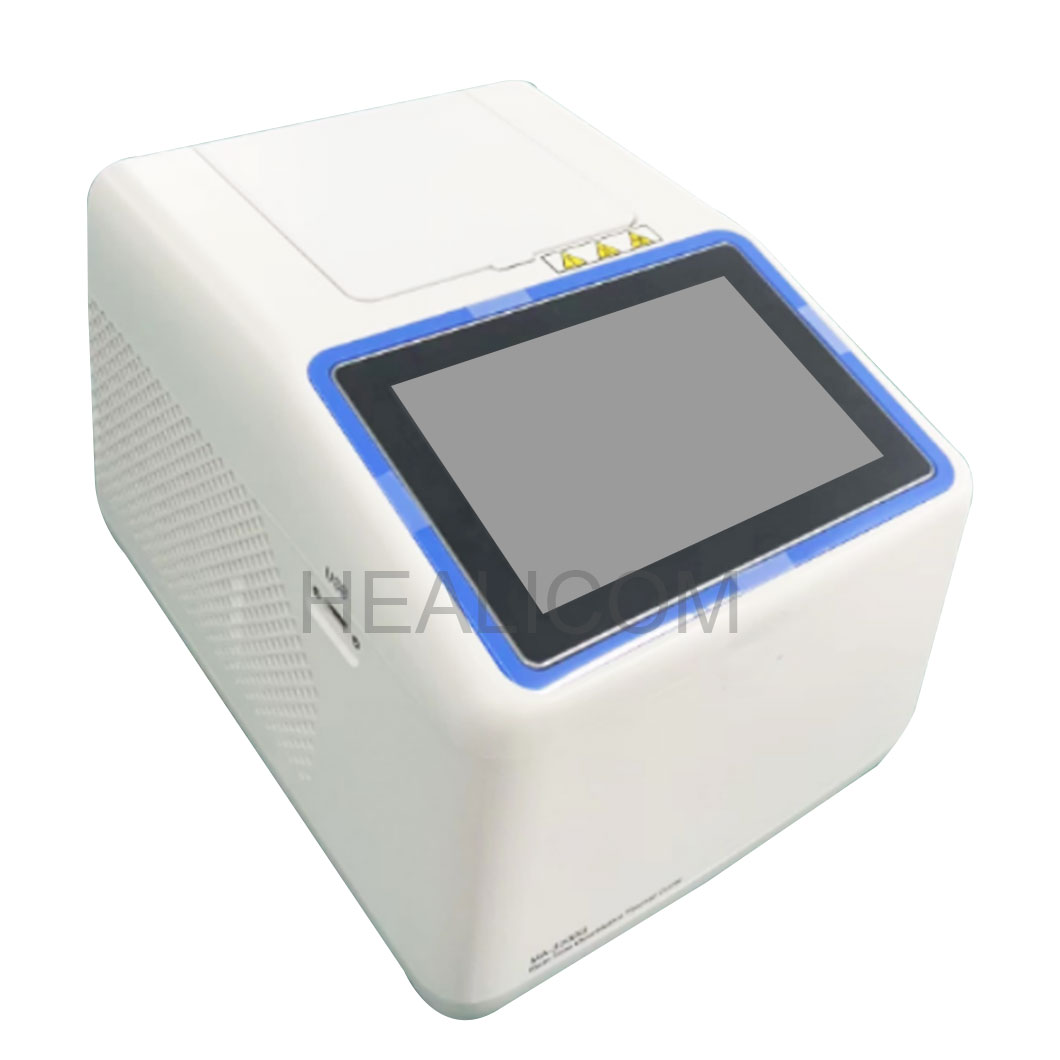

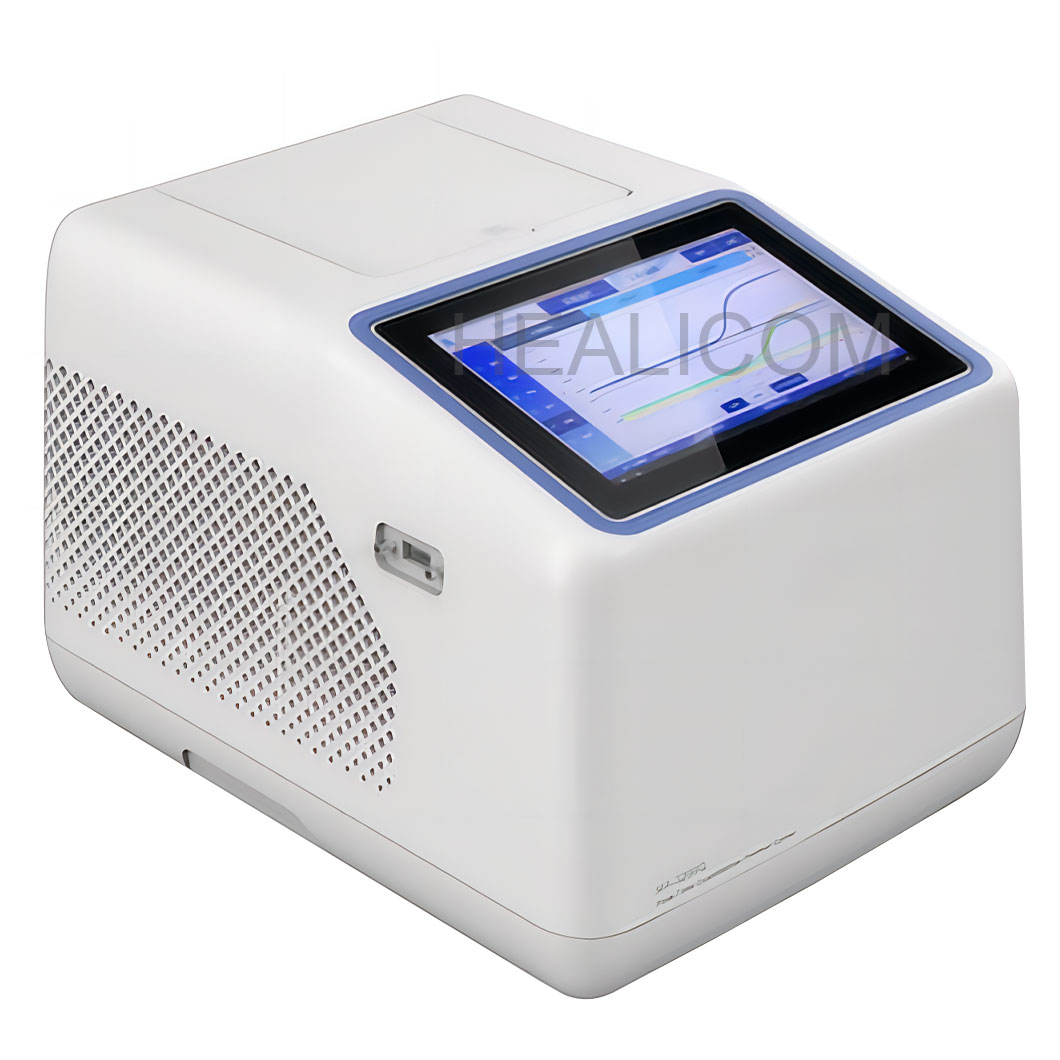

HMA-32 Real Time PCR Syste
· Support multiple connections to one computer and LlMS/LlS system
| SPECIFICATIONS | ||
| Basic | Sample Capacity | 32x0.2ml |
| Applicable Consumables | 0.2ml single tube, 8x0.2ml tube strip | |
| PCR Volume Range | 15-120μL | |
| Working Temperature | 15-30°C | |
| Storage Temperature | -20-55°C | |
| Ambient Relative Humidity | s85% | |
| Dimensions and Weight | 370*280*250mm (W*D*H),9.7kg | |
| Power Supply | 220 V 50 Hz.450VA | |
| Temp. Control System | Heating/cooling Method | Peltier independent and intelligent temp. control over 2 zones 4°C-100°C |
| Temperature Range | 4°C-100°C | |
| Ramp Rate | Heating: 5.2°C/S, Cooling: 5.2°C/s | |
| Temperature Accuracy | ±0.1ºC | |
| Temperature Uniformity | ±0.2ºC | |
| Detection System | Excitation Source | LED |
| Detection Device | PD | |
| Light Propagation Medium | Optical fibers for Space | |
| Detection Channels | 4 | |
| Excitation Range | 1st Channel: 470nm+10nm 2nd Channel: 525nm+10nm 3rd Channel: 570nm+10nm 4th Channel:628nm+10nm | |
| Detection Range | 1st Channel: 520nm+10nm 2nd Channel: 570nm+10nm 3rd Channel: 628nm+10nm 4th Channel:670nm+10nm | |
| Dye Compatibility (name) | FAM/SYBR Green/Eva Green/LC Green/Fluorescein; VIC/HEX/TET/Cy3/JOE; ROX/Cy3.5/Texas Red; Cy5 etc | |
| Detection Sensitivity | z1 copy | |
| Confidence Coefficient | 99.90% | |
| Sensitivity | Allowed 1.5-fold in single reaction | |
| Sample Detection Repeatability | CVs1% | |
| Sample Linearity | z0.99 | |
| Software | Software Language | Chinese/English |
| Control Method | 8 inch touch screen operation and data analysis, multiple connections, support LlMS/LlS system | |
| Software Function | Realtime monitoring, automatic identification and calculation of positive and negative results, automatic establishment of standard curve, absolute/relative quantification, multiple quantification, melting curve, gene mutation, Tm value determination, quality control graphic analysis , PCR amplification efficiency, etc | |
| Output | EXCEL/WORD/PDF | |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
