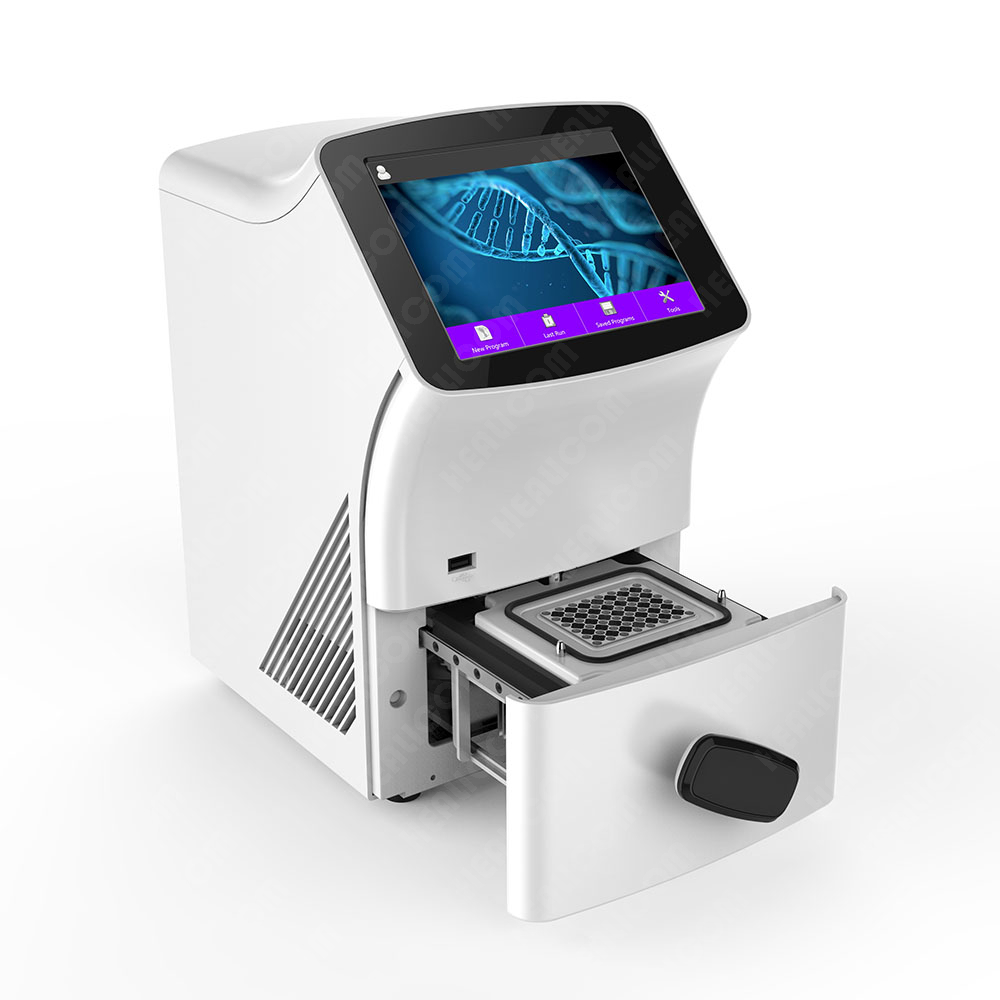

H1000+ 7 Inch LCD Touch Screen 4 Channel Real-Time PCR Analyzer System

Availability:
Quantity:

PDF Export

  • H1000+
  • Healicom

Product Description

H1000+ 7 Inch LCD Touch Screen 4 Channel Real-Time PCR Analyzer System

Feature:

1. The new powerful Peltier technology, fast ramping rate up to 7℃/s.

2. Sample block capacity: 48 wells * 2/4 channels. White PCR tubes could be used. In quantitative PCR experiments, white tubes

offer the highest sensitivity and shield background.

3. T-OpticaI technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.

4. Simultaneous detection of wells, not in sequence.

5. User could view qPCR process and run PCR protocol through self-contained 7" TFT LCD and touch screen.

6. Special designed optical system for qPCR, avoiding more moving parts problems like overheat, wear and off center. Not optical

fiber based, avoiding break and block.

7. Long life LED lamps to excite fluorescence and detect with SSLP CCD imaging technology.

8. Sample wells with temperature gradient function, convenient to optimize PCR conditions.

9. The drawer design of sample block, makes it easier to pick and place PCR tubes and plates.

10. The qPCR analysis software could be upgraded for free.


PERFORMANCE
Sample Block Capacity
48 wells *0.1ml
Reaction Volume
10-50ul
Tubes Option
Low-profile white or clear 0.1 ml PCR tube/8-tube strips with optical flat cap
Healing &Cooling Technology
New generation Peltier technology allow 1.000.000 cycles
Control Methods
Operate via PC control or Iimited function on instrument
Language
English
Communication Ports
USE 2.0& LAN
Display
7”Color TFT Touch Screen
TEMPERATURE
Block Temp Range
0℃—105℃
Max Heating Rate
7℃/sec
Max Cooling Rate
5℃/sec
Temp Uniformity
±0.2℃at90℃
Temp Accuracy
±0.1℃(10 seconds after reach 90℃)
Display Resolution
0.1℃
Heat Lid Temp Range
30℃—112℃
Temp Control Mode
Block & Sim-tube mode
Gradient Range
30℃-100℃
Temp Differential Range
1℃-24℃
OPTICAL MODULE
Excitation
Long life LED
Detection
High sensitivity photoelectric detector
Dynamic Range
1—10¹º
Detection Sensitivity
≥1 copy
Calibrated Dyes at Installation
Channel 1:FAM、SYBR;
Channel 2:VIC、HEX、TET、JOE、CY3、TAMARA、NEDChannel 3:ROX、TEXAS-RED;
Channel 4:CY5
Fluorescence Excitation Range
300-800nm
Fluorescence Detection Range
500-800nm
Date Export Formats
Excel. TXT
OTHER FEATURES
Power
Global switch power supply:100V-240V,50-60Hz
Consumption
400W
Net Weight
8.2kg
Dimensions(L×W×H)
320×205×380mm
COMPUTER
Operating Systems
Windows7、Windows10、WindowsXP
