HCA-20C Factory Price Medical Hospital High Frequency Mobile Digital C Ram X-ray Machine C-Arm Radiography Imaging System

Availability:
Quantity:

PDF Export

  • HCA-20C
  • healicom

Product Description

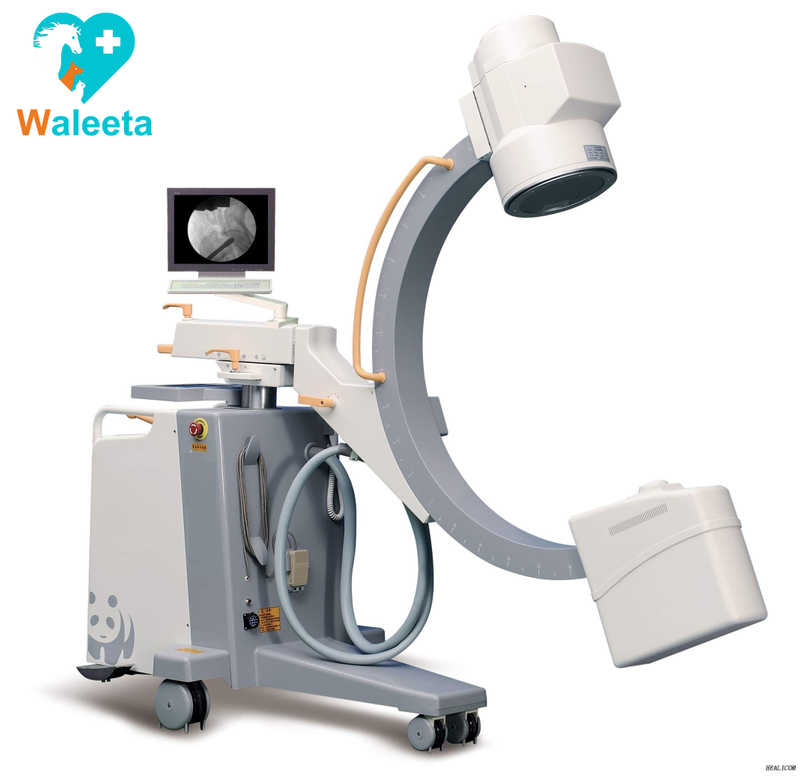

Digital High Frequency Mobile C-Arm X-ray Machine

Product Description

 HCX-20C USD20200.00 C.jpg

Application:

Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.

General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty .


Feature
1. With HF & HV generator, inverter, and High quality image intensifier, the x ray generator can work stably. It also reduces the damage for the doctors caused by radiation.
2. 10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis.
3. Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4. With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.
5. Equipped with unique block line wheels, it can avoid accident when the machine moves.
6. Large free space in arc: the space can reach 800mm, which is convenient for operation.
7. 9"/6"/4.5" three fields of vision: it facilitates diagnosis of partial enlargement.
8. CCD camera with rotation function: range of camera rotation: 360°.
9. Original Korean linear slide rail can make the the movement of the machine flexibly.
10. Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.


Main specification

HF generator

110KV, 3.5KW , 40kHz / 120KV, 5KW , 40kHz





Fluoroscopy mode

Fluoroscopy mode40~110kv /120kv 0.5~5mA

 (KV manual and automatic);

Pulsd fluoroscopy 40~110kv /120kv  0,5-5mA

Boost fluoroscopy 40~110kV /120kv 5~10mA;

Photography 40~110kV /120kv  1~250mAs



X ray tube

Dual-focus fixed anode:0.6mm/1.5mm

Dual-focus rotating anode:0.3mm/0.6mm

 Italy IMD Technology

Image intensifier

Three fields of vision 9, 6, 4.5   French Thales Brand

CCD camera

Japanese Watt Brand, 360° rotation





Image system

5 Degree recursive Noise Reduction

Frame freezing

Thousands of image data storage

Image conversing and rotating

Screen display with image comparison

Support one click print,print the image report

Equip with Dicom 3.0 network port

Support Dicom 3.0 standard data export function



Mechanical motion specifications

Verticaltravel:0-400mm Horizontaltravel:0~200mm(electric for optional)                      Rotation about horizontal axis:±180° (electric for optional)

Slipping along the circular arcrail  (electric for optional)





C-arm dimension

Distance of focal spot to image generator(SID):1000mm

Depth in arm≥650mm                                                 Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm







Standard configuration

High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

image processor:1set

24'' LCD high definition display 1 set

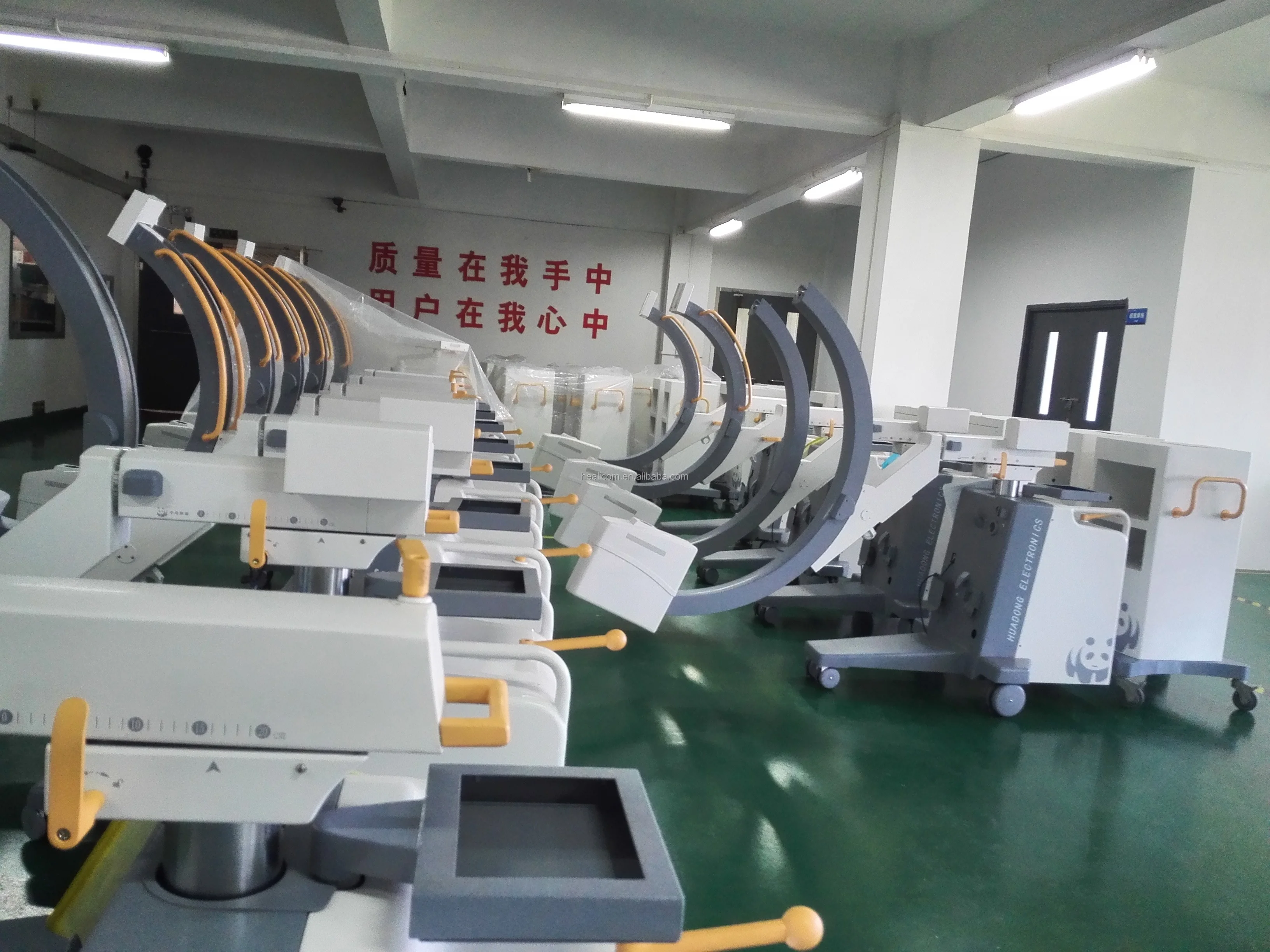

workshop(ult)

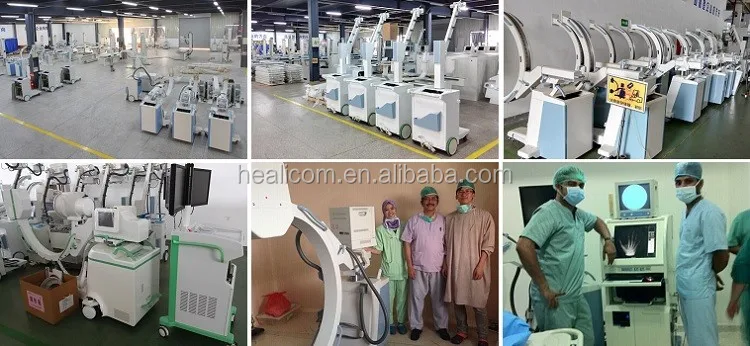

X-ray .jpg

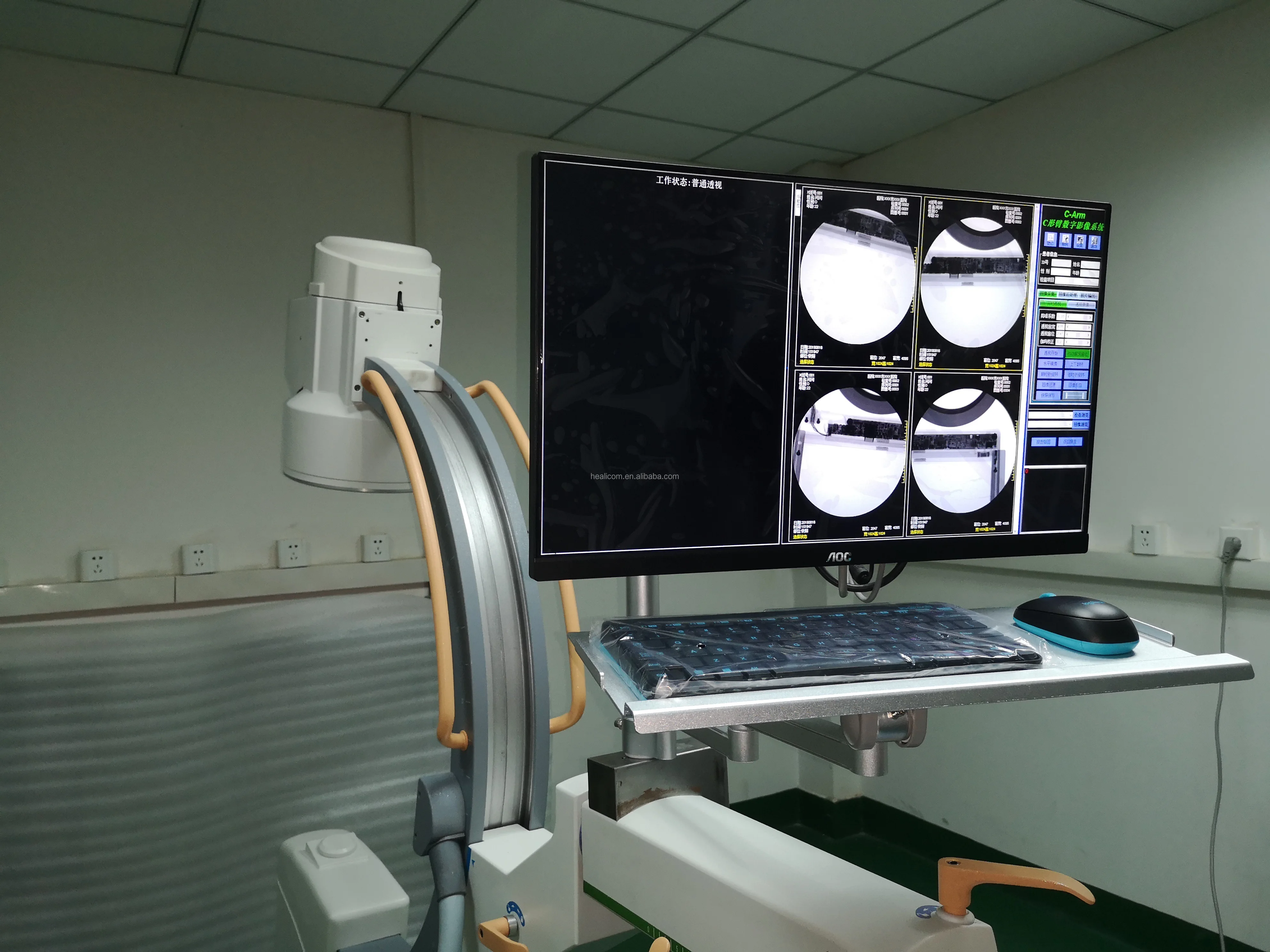

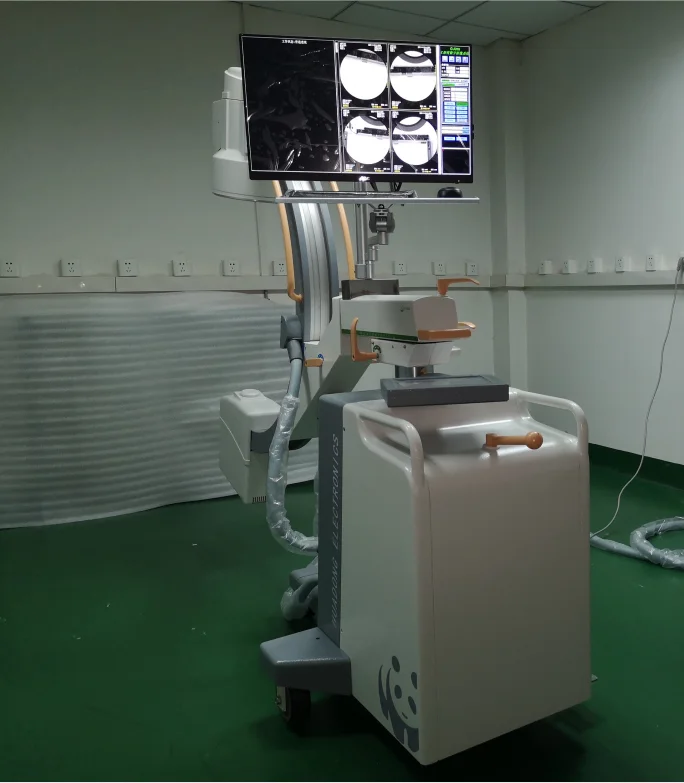

Detailed images
