  • WTK-100 VET

  • Healicom

Product Description

Product Description



Best Price Veterinary Medical Equipment WTK-100 VET Veterinary Animal Infusion Pump

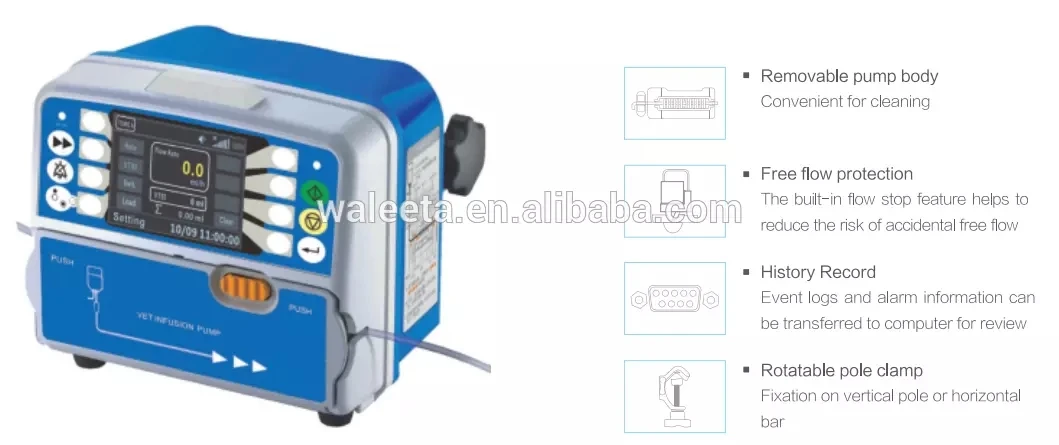

Feature

·         History records

·         Mini-size, light weight, easy operation

·         KVO function, KVO starts automatically when infusion is finished

·         Anti-reverse rotation detection

·         Various visual and audible alarms

·         Real time display

·         3 adjustable occlusion pressure settings

·         Removable pump body, convenient for cleaning

·         Free- flow protection

·         Double CPU ensuring safe infusion

Specification



 Infusion rate

 0.1-1200ml/h

 Infusion accuracy

 ±5%

 Applicable infusion set

 Various brands of standard infusion set

 Volume to be infused (VTBI)

 0-9999ml

 Volume infused

 0-36000ml

 KVO rate

 1-5ml/h

  Bolus rate

 300-1200ml/h

 Infusion mode

 Rate mode, Drip mode, Time mode, Body weight mode

 Purge rate

 600ml/h

 Air  bubble detection

 Ultrasound sensor detection with four levels of air in line alarm

 Occlusion pressure

 (400-160.0)Kpa 3 adjustable occlusion pressure: low-middle(default)-high

    Function

 Removable pump body for easy cleaning

 KVO

 Adjustable buzzer volume

 Anti-bolus(diminishes the unwanted volume of Bolus injected to the patient after removal of occlusion)

 Ultrasound sensor detection with four levels of air in line alarm adjustable

 Intelligent pressure detection alarm

 Anti-reverse detection

 History records and can be looked up through computer

 Screen simultaneously display the infusion rate, drip rate, VTBI, Volume infused, real time etc.

 Bolus

 Alarm

 Use battery, Door open, Occlusion, Almost done, Forget operate, Infusion completion Battery exhausted, malfunction etc.

 Power supply

 DC:12±1.2VAC:100-240V,50/60HZ

 Power consumption

 25VA

 Nurse call interface

 Optional

 Wireless monitoring system

 Optional

 Classification

 Class I, type CF

 Dimension

 145*100*120mm( L*W*H)

 Weight

 1.4KG


Waterproof level  IPX3
 Occlusion pressure  (400-160. 0)KPa 3 adjustable occlusion pressure: low, middle, high
 Battery  Rechargeable Li_Polymer battery, 7.4V 1900mAh
 Battery charging time  10 hours with power on, 3 hours with power off
 Battery operating time  About 6 hours at 25ml/h
 Operating conditions   Temperature: 5℃-40℃, Relative humidity:10-95 %, Atmosphere pressure: 86-106kPa
 Transport conditions  Temperature: -20-60, Relative humidity:10-95 %, Atmosphere pressure: 50-106kPa
 Storage conditions  Temperature: -20-45, Relative humidity:10-95 %, Atmosphere pressure: 50-106kPa

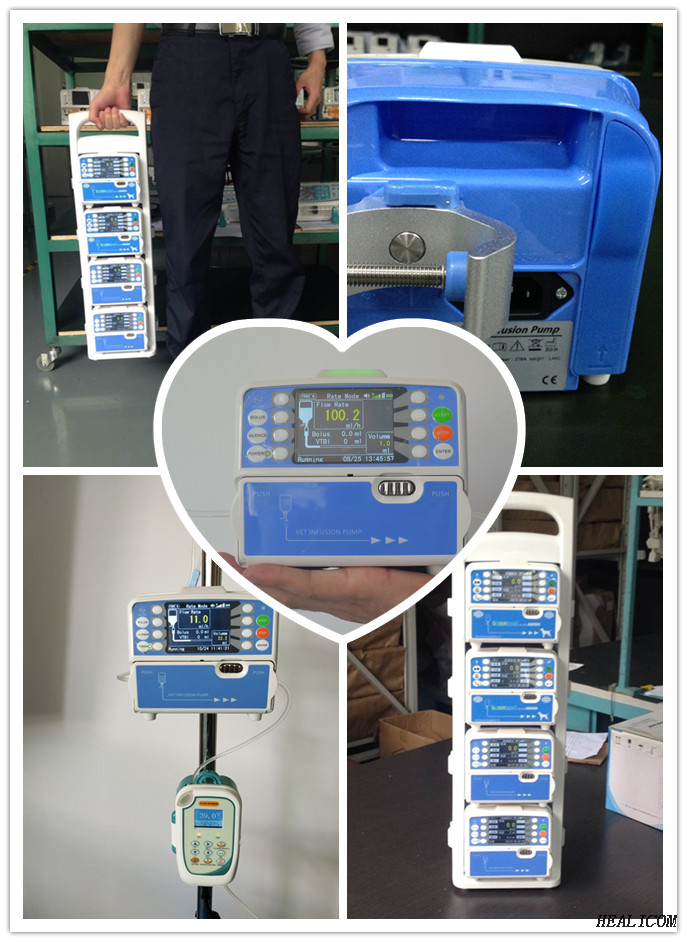

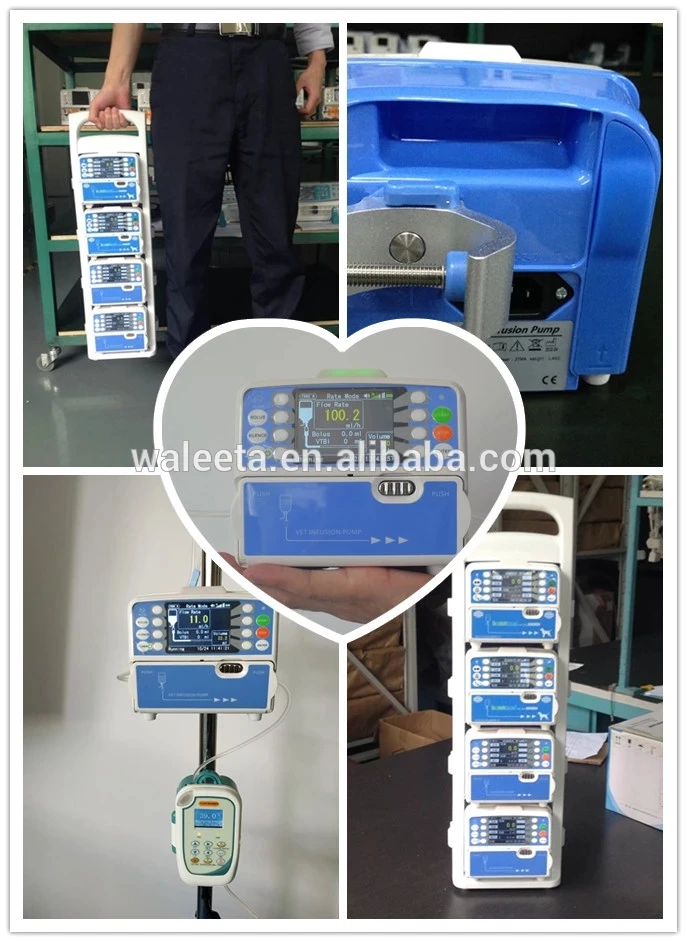

Real Images
