WTX-04
Healicom
Product Description

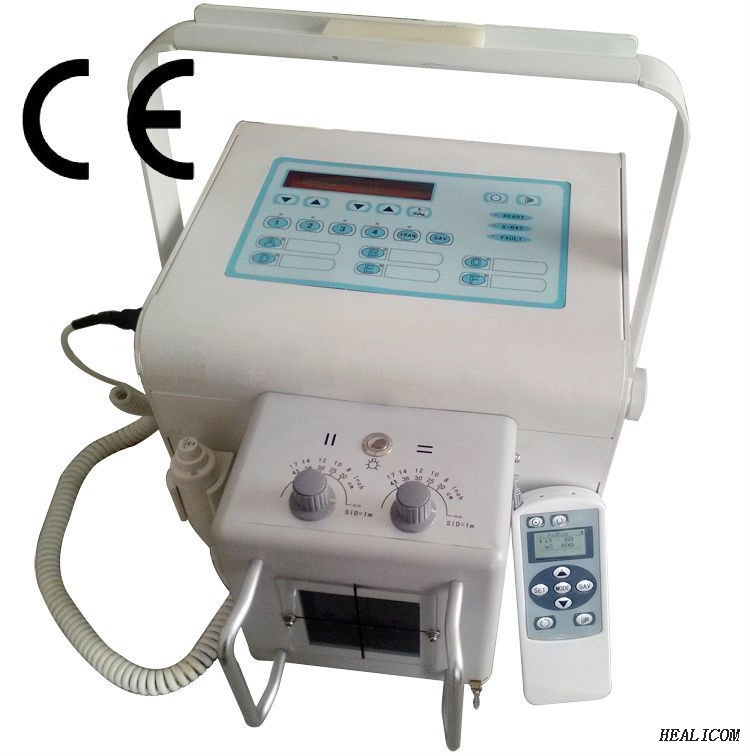

WTX-04 Veterinary Portable X-ray machine for animal
Application:
The 4KW Veterinary high frequency X-ray system is mainly suitable for extremities check, especially for rescues or diagnosis in Field operation sites, battlefields, stadiums, etc.
Features
Deft and concise
6 periods of digital LED display
48 kinds of presupposed anatomy memory model choices
Accuracy control method of simulation and digital double loop
High precision control of tube voltage, tube current
Failure self-protection, self-diagnosis
Optional:
Specification:
Model | WTX-04 |
Input power | Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA; Inner resistance≤0.5Ω |
Maximum output power | P =110kV×36mA=4kW |
Nominal power | 100kV,40mA,0.1s,4kW |
Frequency | Frequency |
kV adjusting range | 40kV~110kV,Continuous adjustment step 1 kV |
mA adjusting range | 36mA~60mA |
mAs adjusting range | 1mAs-190mAs, Shifted adjustment |
s adjusting range | 0.04s~3.2s |
X-ray tube | Brand:Toshiba Focus :0.6/1.5mm; Anode heat capacity:35.5KJ |
X-ray machine size | 290×260×230mm |
Weight | 18.8kg |
Accessory | Standard: hand switch, remote control, suitcase, machine frame(optional) |
