HX-30AY
Healicom
Product Description

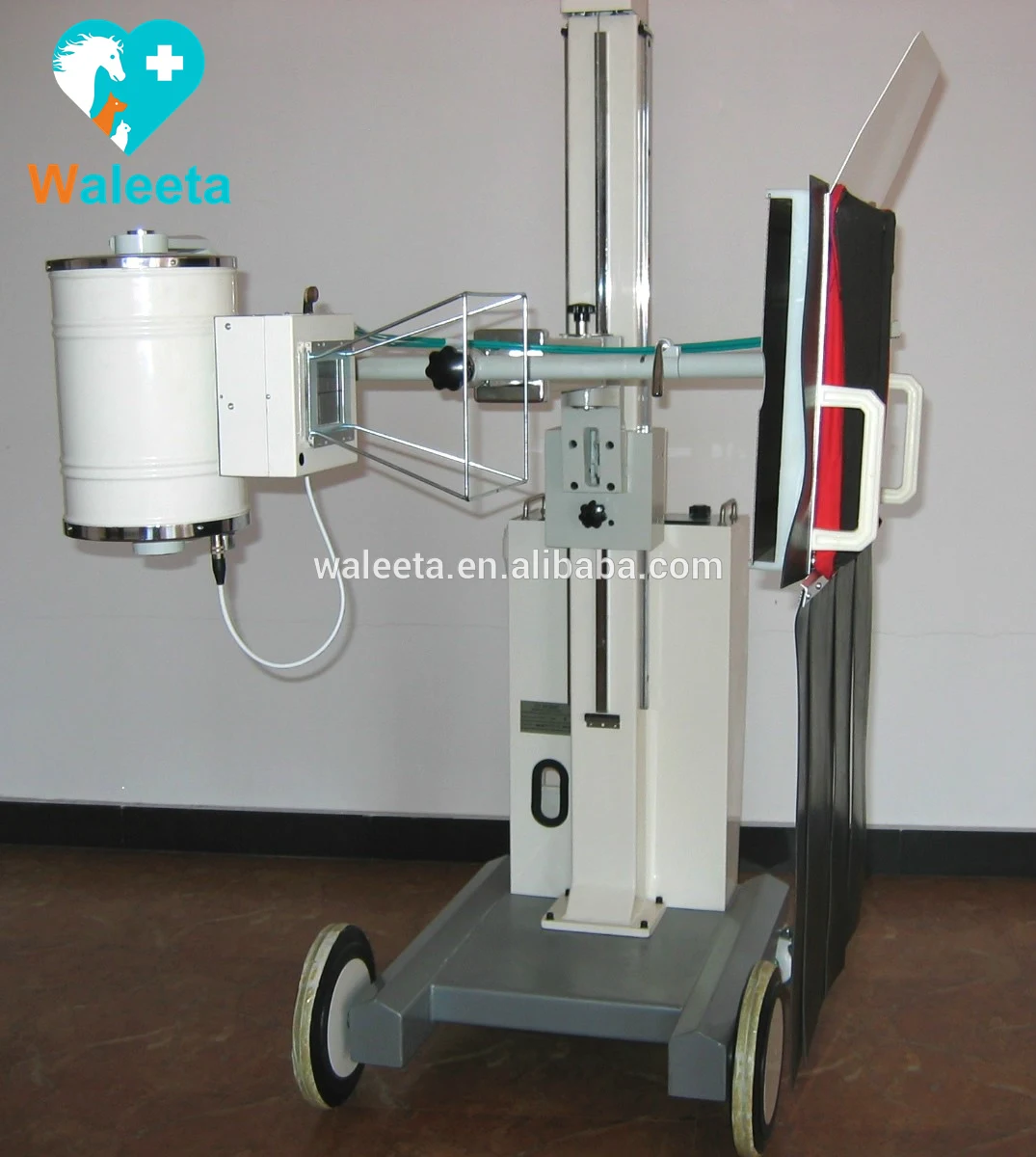

High Quality HX-30AY Veterinary 30mA Mobile X-ray Machine (Photography & Fluoroscopy) vet xray system
General Description:
Used in ward and emergency treatment room for fluoroscopy and radiography.
Combined x-ray generator, single focus, full ware rectification. It is precise, safe, reliable and flexible.
Remote control device ( control range ≥5m ) is used.
Technical Specification:
| X-ray generator | Stationary anode, single focus, and bridge silicon rectification, the x-ray generator is an oil-immersed self-cooled unit. |
| Max rated capacity | 85kVp, 30mA |
| Power supply | Voltage: 180~240V Frequency: 50Hz Power: ≥ 3kVA Resistance: ≤0.7Ω |
| Voltage adjustment range of x-ray tube | 50~85kVp, divided into 8 steps |
| Range of the timer | 0.2~10s |
| Fluorescent screen size | 280mm × 350mm |
| Distance between the focus to the screen | 700mm |
| Tube head carriage movement range | Vertical:1100mm Horizontal:160mm |
| The rotation angle of tube head carriage | 90° |
| The rotation angle of the controller and the accessory case | 80° |
| Specification of X-ray tube | Model XD1-3/100 fixed anode single focus 2.3mm |
| Transport dimension | 1180× 820× 2030mm, 1.96m³ Net Weight: 98 kg Gross Weight: 164kg |
