WTX-05DR
Healicom
Product Description

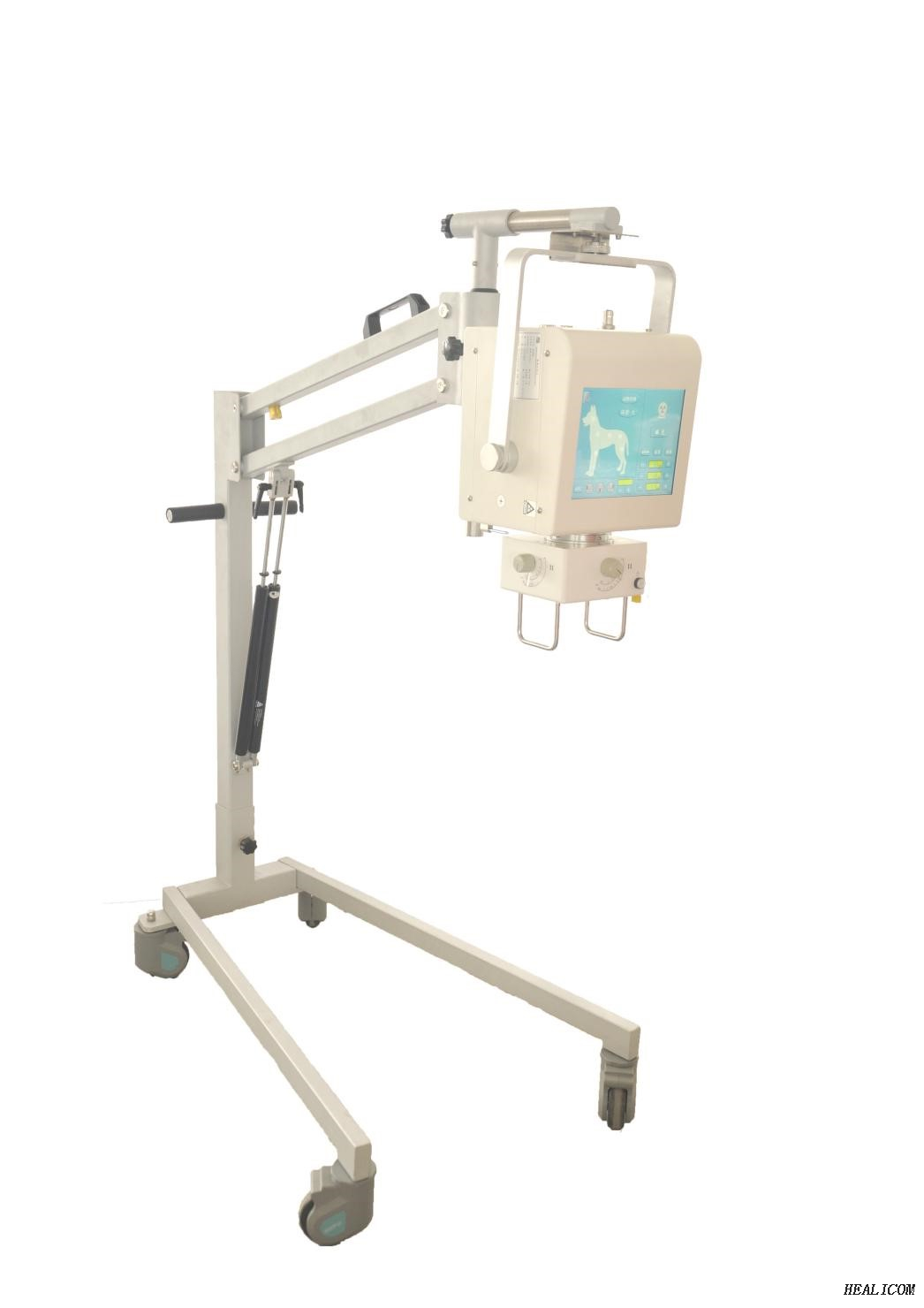

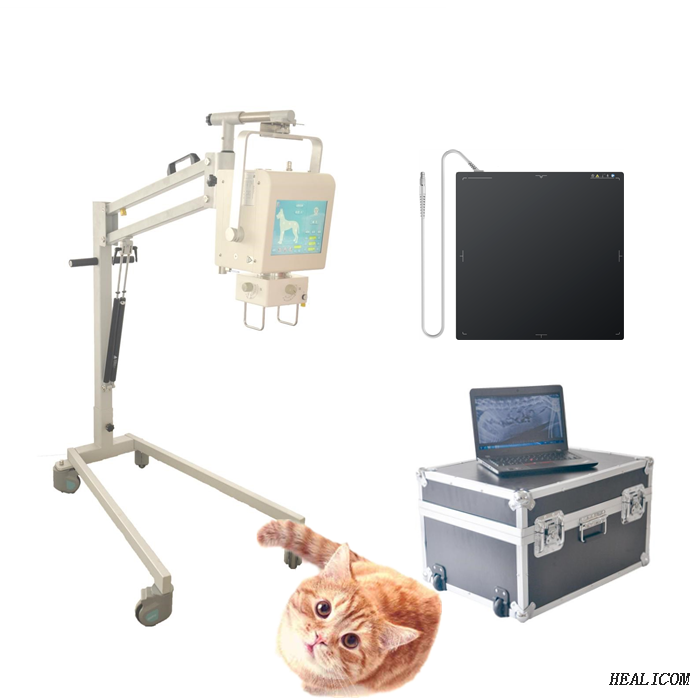

WTX-05DR Veterinary Digital Portable X-ray machine
Feature:
1. Profession Veterinary Acquisition Software:
Support different brand of X-ray generators
Support Multi- languages
Support RIS/PACS/DICOM Printer Connection
Support professional tools
2. Professional and efficient DR workstation:
Patient management
Image capture
Image post-processing
Print and storage
It can be widely used for equine/large animal,Companion,exotic and mixed animal practices,easy to use,ultra-durable,and create digital images of superior quality.
Characteristics:
Deft and concise
6 periods of digital LED display
Failure self-protection, self-diagnosis
High precision control of tube voltage, tube current
48 kinds of presupposed anatomy memory pattern choice
Accuracy control method of simulation and double digital loops
X-ray tube complete surrender by lead for protect X-ray leaking
Technical Specification:
Main Component Tech Spe. | ||
Voltage | AC220V ± 22V | |
Generator | Power | 5kW |
kV Range | 40~110kV | |
mA Range | 20~100mA | |
mAs Range | 0.2-200mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 0.01S~4S | |
X-ray tube | Anode heat storage | 56KHU |
Focus | 1.8mm | |
Inherent filtration | 1mm Al/75Kv | |
Light source | LED | |
Touch Screen | Dimension | 10.4inch |
Physical Spe. | ||
Main Unit | Weight | 19 kg |
Dimension | 290×265×230 mm | |
