WTX-30
Healicom
Product Description

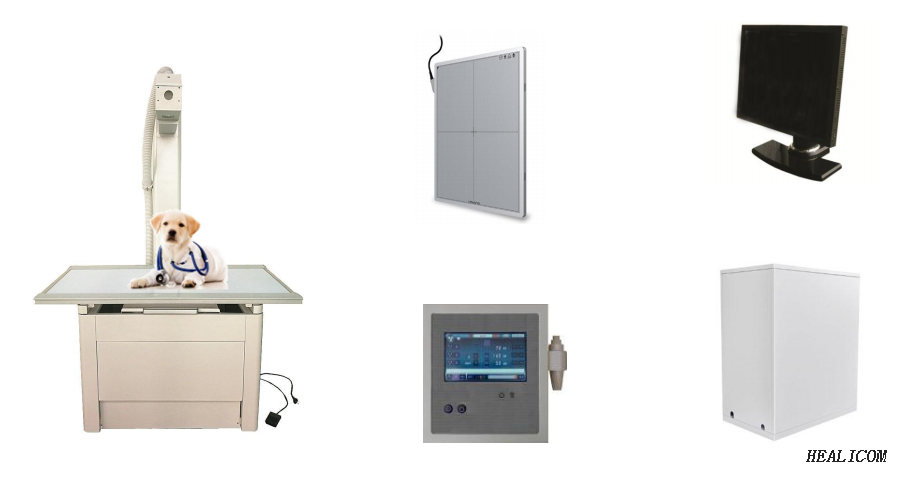

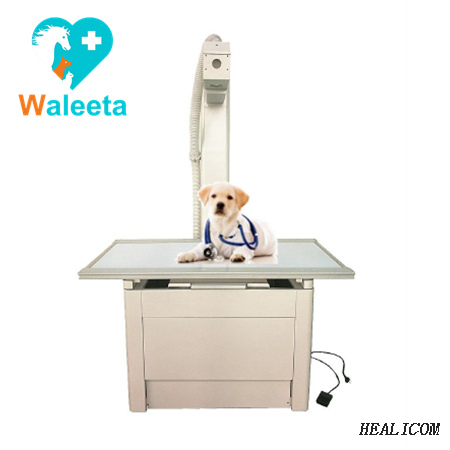

Best Sale WTX-30 Collimator Table Radiology T Veterinary Stationary X-ray Machine
The 300mA high frequency veterinary DR X-ray machine is mainly used for the radiology examination of the chest,limbs, pelvis and lumbar vertebrae.
1.Microcomputer control, liquid crystal display, easy to operate.
2.New design high frequency high voltage generator
3.The exposure conditions are stable and accurate, reducing the radiation dose while reducing the generation of soft rays, effectively protecting animals and doctors
4.Simple and convenient body position display.
5.The exposure parameters are automatically set according to the shape and location of the animal, and can be saved and corrected.
6.Reassuring security features.
7.The fault self-diagnosis function can quickly and accurately determine the fault status, and can automatically protect and display the fault code, which is accurate, convenient and timely.
8.Using digital flat panel detectors, stable performance, greatly reducing X-ray dose
| Component | Performance parameter | |
| X-ray high frequency highvoltage generator | Power supply | Rated power supply voltage: 220V ± 10%; output frequency: 40kHz ± 1%; output power 32kW; |
| Radiology conditions | Phototube voltage range 40~150kV, 1KV step; tube current range 50~320mA; 6-speed adjustable | |
| Exposure time range: 2-5000ms; mAs range 1-250mAs; mAs accuracy ≤±5%+0.2mAs | ||
| APR storage capacity: 2400 data | ||
| Auxiliary output power:24VDC 2A 220VAC 5A | ||
| X Ray Tube component | Maximum tube voltage:125KV; Maximum power:21/43KW; Double focus 1.0/2.0; | |
| Manual X Ray Collimator
| Maximum irradiation field: 440mm×440mm (SID=100cm); Light field average brightness: >160lux;Photo ratio: >4:1; light bulb: 24V/150W; | |
| Light field light single lighting time: 30S; focus - mounting surface distance mm (can be adjusted as required): 60, inherent filtering (75kV): 1mmAl | ||
| Radiology Table | Table surface size | Length 1.4 m * width 0.72 m * height 0.85 m, column height 2 m |
| Radiology format | 5″×7″,8″×10″,10″×12″,11″×14″,12″×15″,14″×14″,14″×17″″ | |

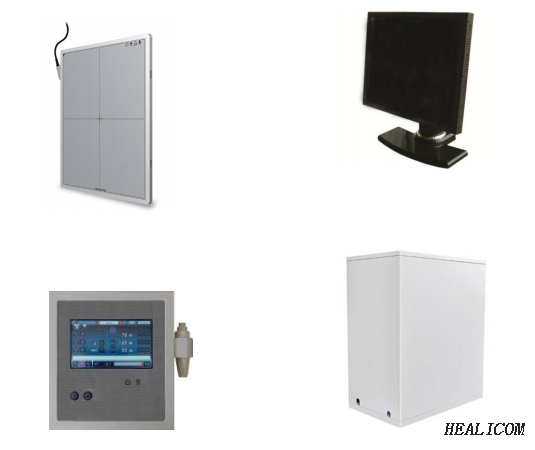

| Digital flat panel detector | Type: amorphous silicon + cesium iodide; imaging size: 14" × 17"; spatial resolution: 3.3 lp / mm; detection gray level (A / D bit number): 14 bit; Data interface: Gigabit Ethernet; holographic acquisition time: ≤ 4s | |
