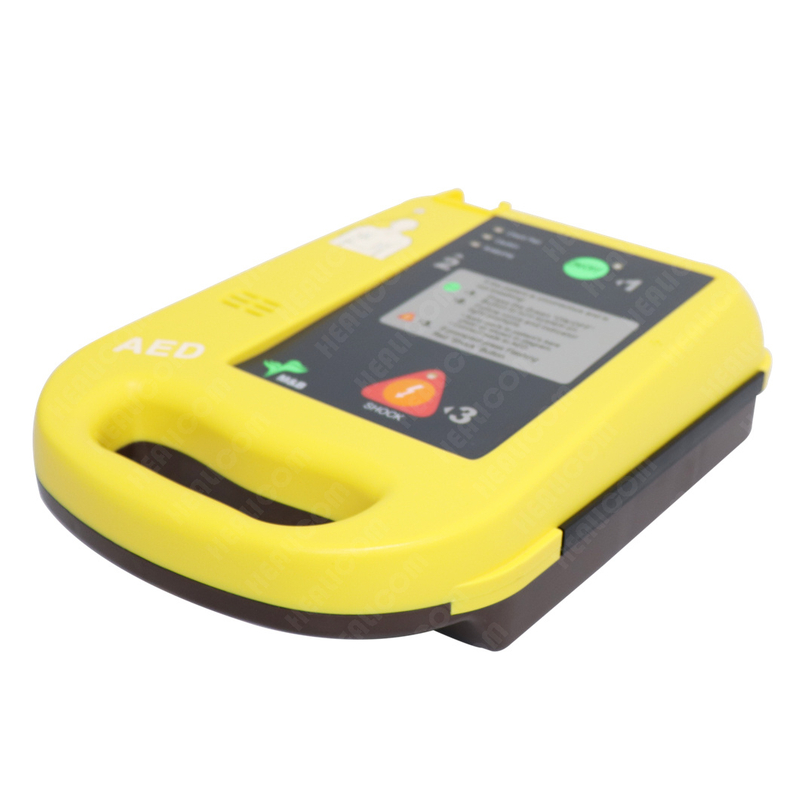

AED7000
Healicom
Product Description
Features
1. Three-step defibrillation process
2. Two-button operation
3. Extensive voice and visual prompts for the operator
4. Biphasic energy output
5. Lock-out protection to prevent inadvertent defibrillation
6. Continuous event recording for reporting each use to a printer or computer
7. Weekly self-test to ensure readiness
| Tecnnical Specifications | |
| Output | Biphasic Truncated exponential |
| Energy Sequence | 150,150,200J |
| Charge Time | 8 sec. to 150J |
| 10 sec. to 200 J (New battery) | |
| Analysis Time | 9 sec. |
| The maximum time from the initiation ofrhythm analysis to readiness for discharge with a new battery | Less than 30 seconds |
| The maximum time from the initiation ofrhythm analysis to readiness for discharge after 6 shocks | Less than 35 seconds |
| The maximum time from the initially switching power to readiness for discharge | Less than 25 seconds |
| Audible Prompts | 20 audible prompts |
| Visual Prompts | LED prompts |
| Controls | Two buttons- On/Off. Shock |
| Output Energy Accuracy | ±15% into any impedance from25 to 175 Ω |
| The Maximum Voltage | 120±50V |
| Output disabled when the patient impedance is outside limits | 20Ω to 200Ω |
| Part No | CR123A-4*2 |
| Non-rechargeable | 12V DC. 3.0Ah |
| Capacity | 100 discharges at 200 Joules or 120 discharges 150Joues |
| Shelf Life (25ºC±15ºC) | 10 years(5 years storage +5 years standby) 5 years standby(after installation) |
