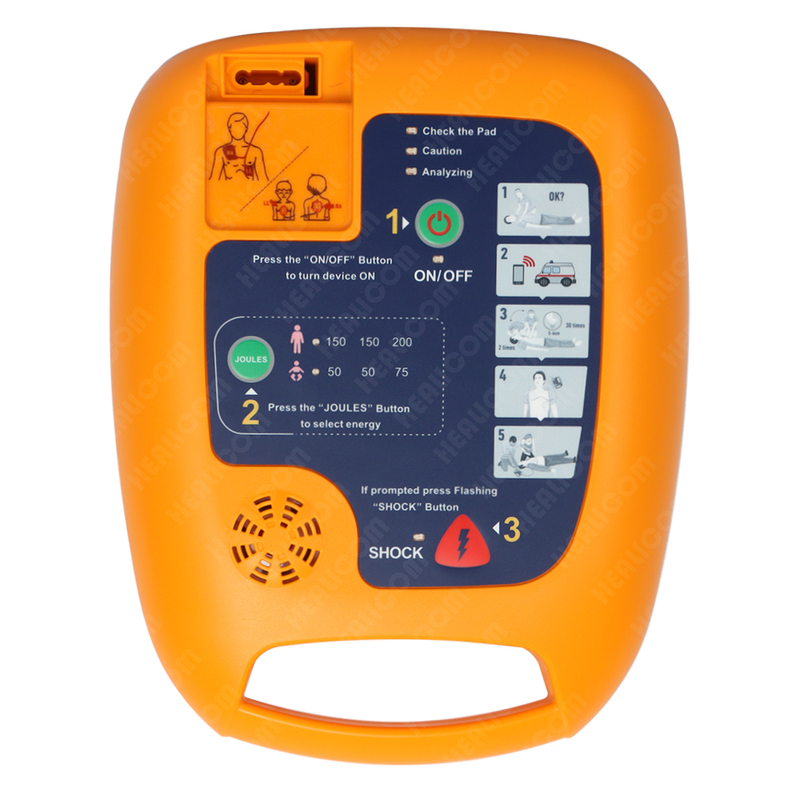

AED5000 Medical Portable AED Automated External Defibrillator

AED5000 Medical Portable AED Automated External Defibrillator

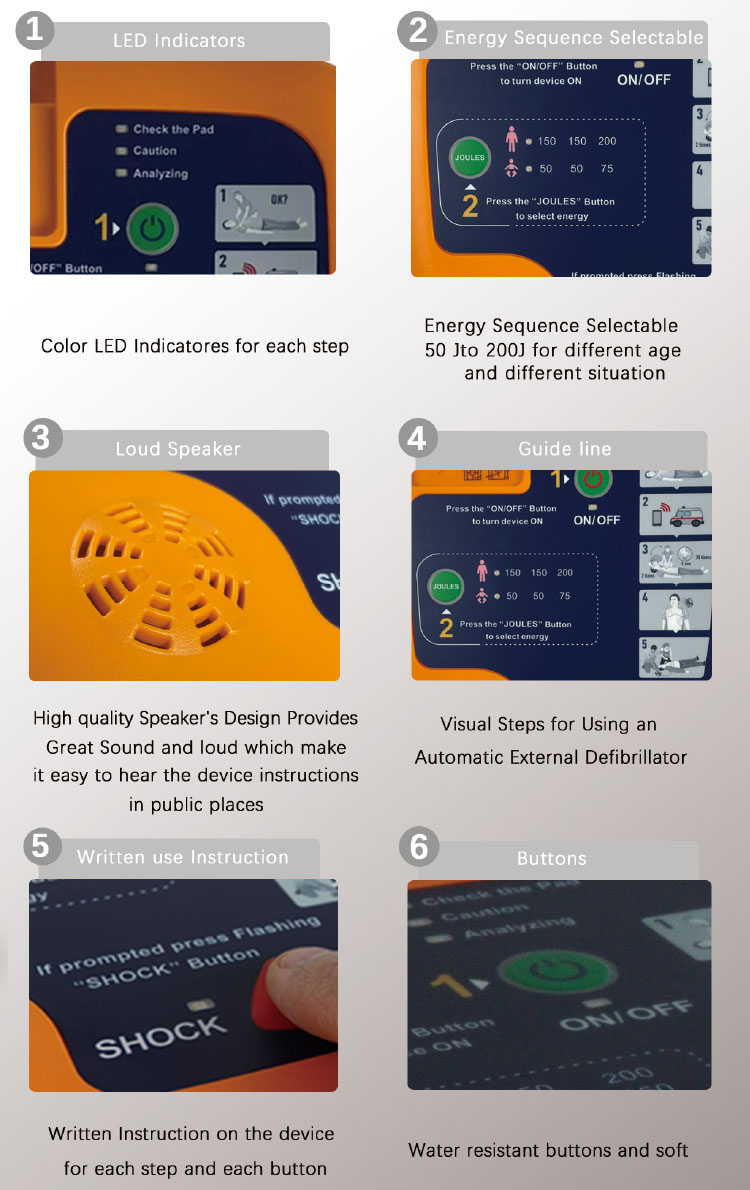

Advantages:

* 2 Languages to choose

* 5 Levels of sound volume

* Adult / Child Mode Button

* Infra-Red for data transmission

* Daily, Weekly and Monthly Self-test

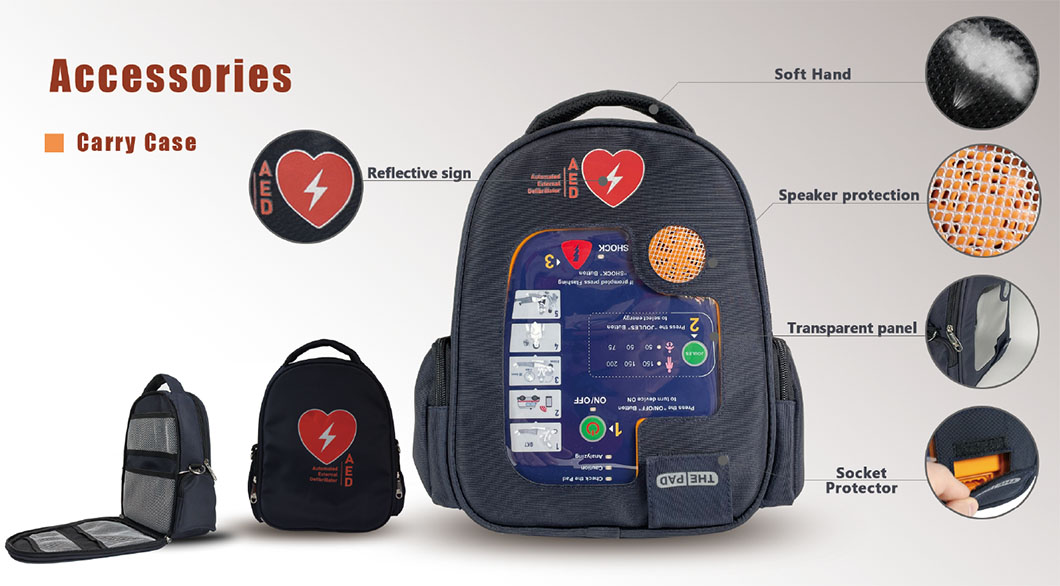

* Using the AED while in the bag

1. Data Communications

AED storage software supports AED to receive data, which is sent through infrared , Meditech AED storage software supports reading and setting of ECG waves, Setting of AED language, Reading, analysis, deletion of storage data can be achieved by Meditech AED storage software as well.

2. Case Management

Meditech AED storage software makes selected data file as a case record and stores cases by ACCESS database.

Case Management supports data importing and data deletion, which can respond to ECG waveform of data file by selecting cases.

3. Memory Playback

he interface display status information recorded in the running of the AED, including type, event time, description, waves.

Event type includes on event, self-test event, analyzing event, charging event, discharging event, CPR starting event, CPR stopping event. The event time displayed is when the event happened.

Description shows the parameter information. "OHM" represents the detected impedance of the patient. Pxower parameter represents the voltage of the finishedcharging; ”need to shock" represents that shock advised after analyzing "no need to shock" represents that no shock advised after analyzing.

4. ECG

Waveform gain can be set as 5mm/mv, 10mm/mv, 20mm/mv;

Waveform speed can be set as 12.5mm/s, 25mm/s, 50mm/s:

5. Print

Print page can preview selected page in the playback interface, which can be used for printing basis information.

Technical Specifications
Self-test	Daily, Weekly, Monthly
Mode	Adult, Child
Waveform	Biphasic truncated exponential
Energy	200-Joules max.
Energy Sequence	Child Mode: 50/ 50/ 7 5 Joules Adult Mode: 150/150/200 Joules
Charge time (New, at 25°C)	Less than 6 sec. to 150Less than 8 sec. to 200
Voice Prompt	Extensive voice prompt
Visual Indicators	LED prompts
Control	Two buttons: ON/OFF, Shock
ECG storage	1, 500 events.
Data transmission	Infrared
Power	Battery non- rechargeable
Type	12V, 2800mAh Li-MnO2 Cell
Dimensions	Depth (D):80mm / Width (w): 240mm / Length(L): 300mm
Weight (with battery)	1.9Kg (4.2 Pounds)
