AED100
Healicom
Product Description

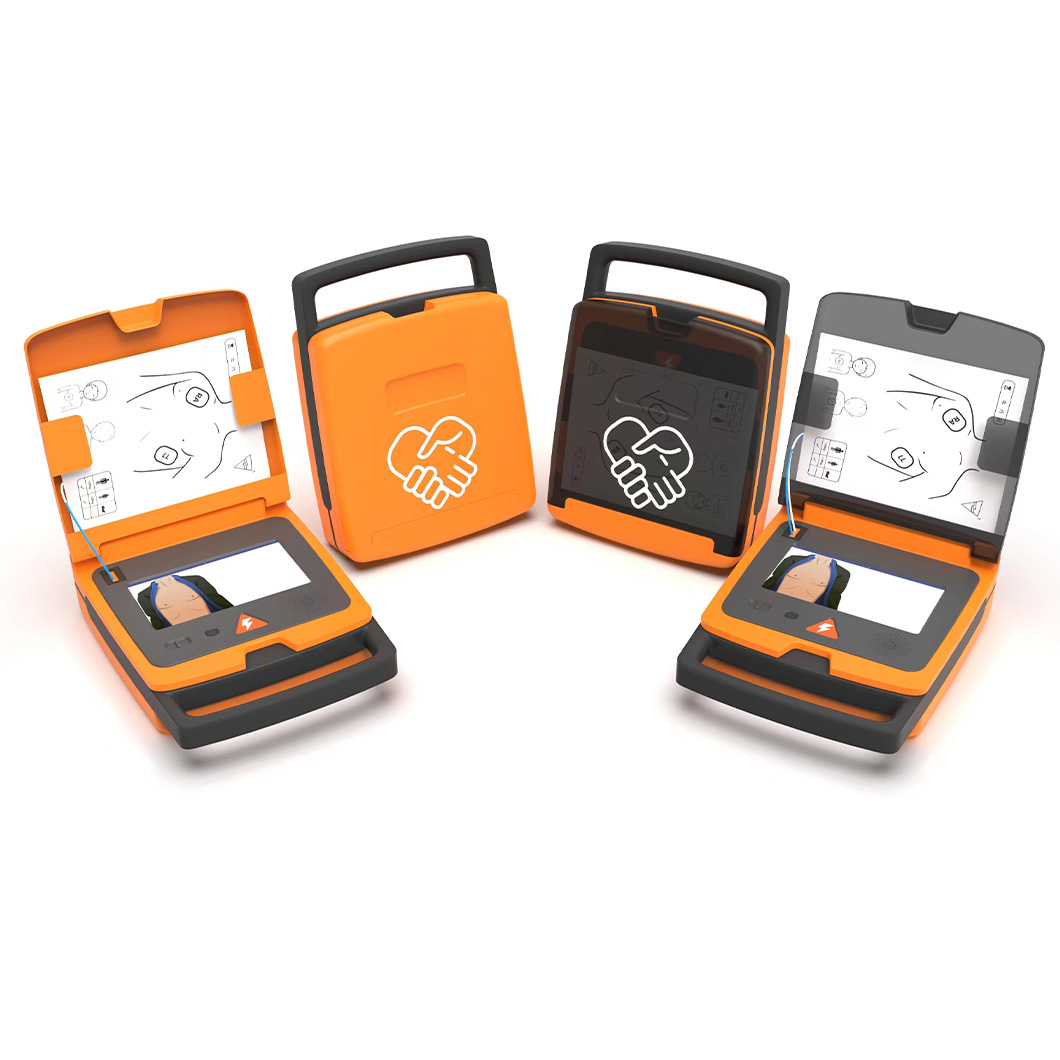

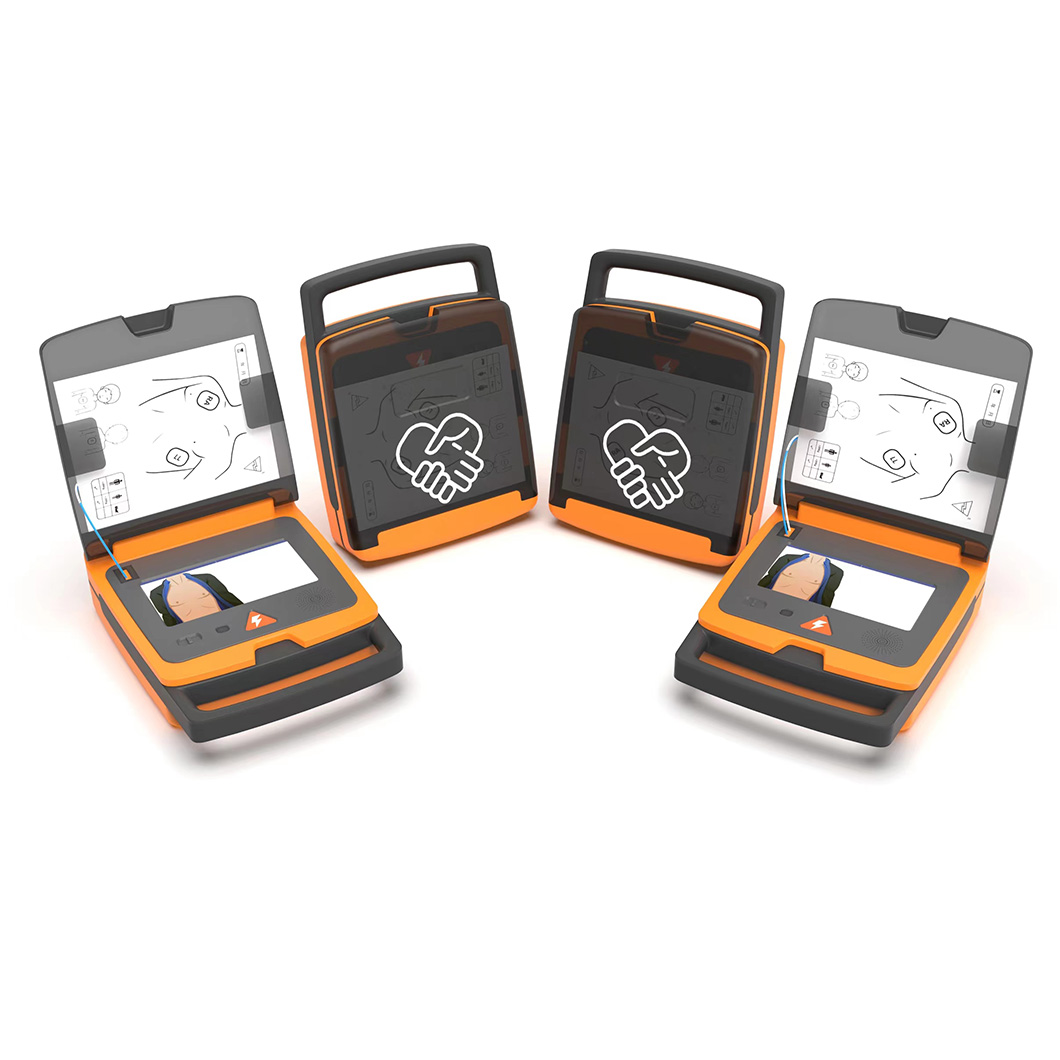

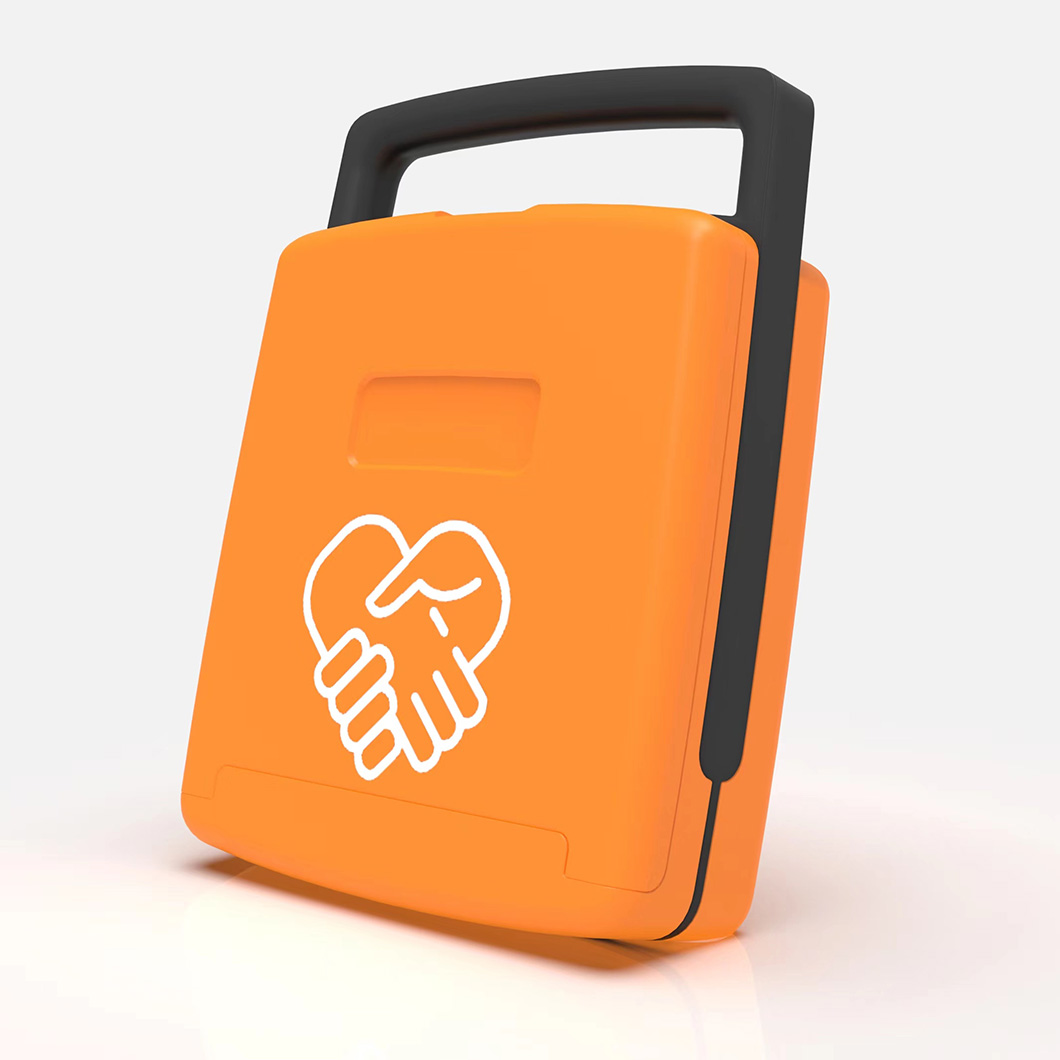

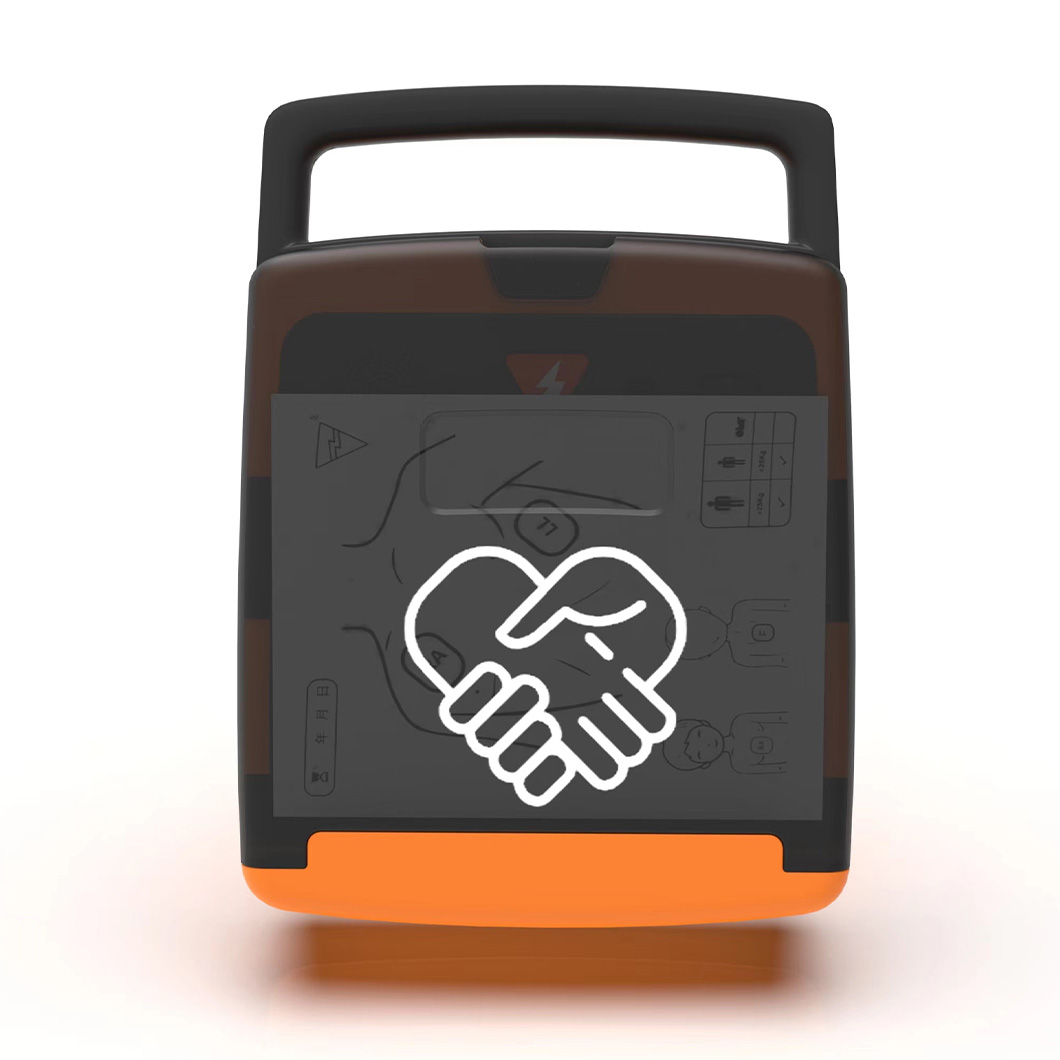

AED100 Portable Biphasic AED Automated External Defibrillator
| Technical Specifications | |
| Defibrillator | |
| Output | Biphasic Truncated exponential |
| Energy Sequence(child) | 50J,50J,50J |
| Energy Sequence(Adult) | 150J,200J,200J |
| Charge Time | 6 sec.to 150J 8 sec. to 200 J(New battery) |
| Analysis Time | 6 sec. |
| The maximum time from the initiation ofrhythm analy-sis to readiness for discharge with a new battery | Less than 10seconds |
| The maximum time from the initiation ofrhythm analy-sis to readiness for discharge after 6 shocks | Less than 10 seconds |
| The maximum time from initially switchingpower on toreadiness for discharge | Less than18 seconds |
| Visual Prompts | LED prompts; Automatic Self-test |
| Controls | Four buttons: On/Off, Shock, Adult/child, CPR |
| Output Energy Accuracy | ±10% into any impedance from 25 to 175Q |
| The Maximum Voltage | 1400±50V |
| Output disabled when the patient impedance is outsidelimits | 20Ω to 200Ω |
| Battery | |
| Part No | CR123A-4x2 |
| Non-rechargeable | 2.8Ah |
| Capacity | 120 discharges at 200 Joules |
| Shelf Life(25°C+15C) | 5 years standby (after installation) |
| Physical | |
| Dimensions | 280 x 209 x 80 mm |
| Weight | 2.5 kg |
| Operating Temperature | 0°c to 40°C |
| Operating Humidity | Relative humidity between 30% and 95%(non-condensing) |
| Storage Temperature(without battery) | -20°C to 55°C |
| Storage Humidity(without battery) | Up to 93%(non-condensing) |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
