Installing a new imaging system requires meticulous site planning and a deep understanding of structural engineering. Improper room dimensions or inadequate structural support can delay installation by weeks and force late-stage architectural modifications. These oversights inflate project budgets by tens of thousands of dollars before the equipment even arrives on site. Facility managers and radiology directors must balance strict spatial requirements, radiation safety compliance, and patient workflow within existing architectural footprints.
You need a comprehensive framework for evaluating facility readiness from the ground up. This guide details exact dimensional baselines, environmental controls, and structural prerequisites required to successfully house a CT scanner. We will walk you through the necessary imperial and metric measurements, shielding standards, and HVAC demands to ensure a seamless installation process that meets all original equipment manufacturer specifications.

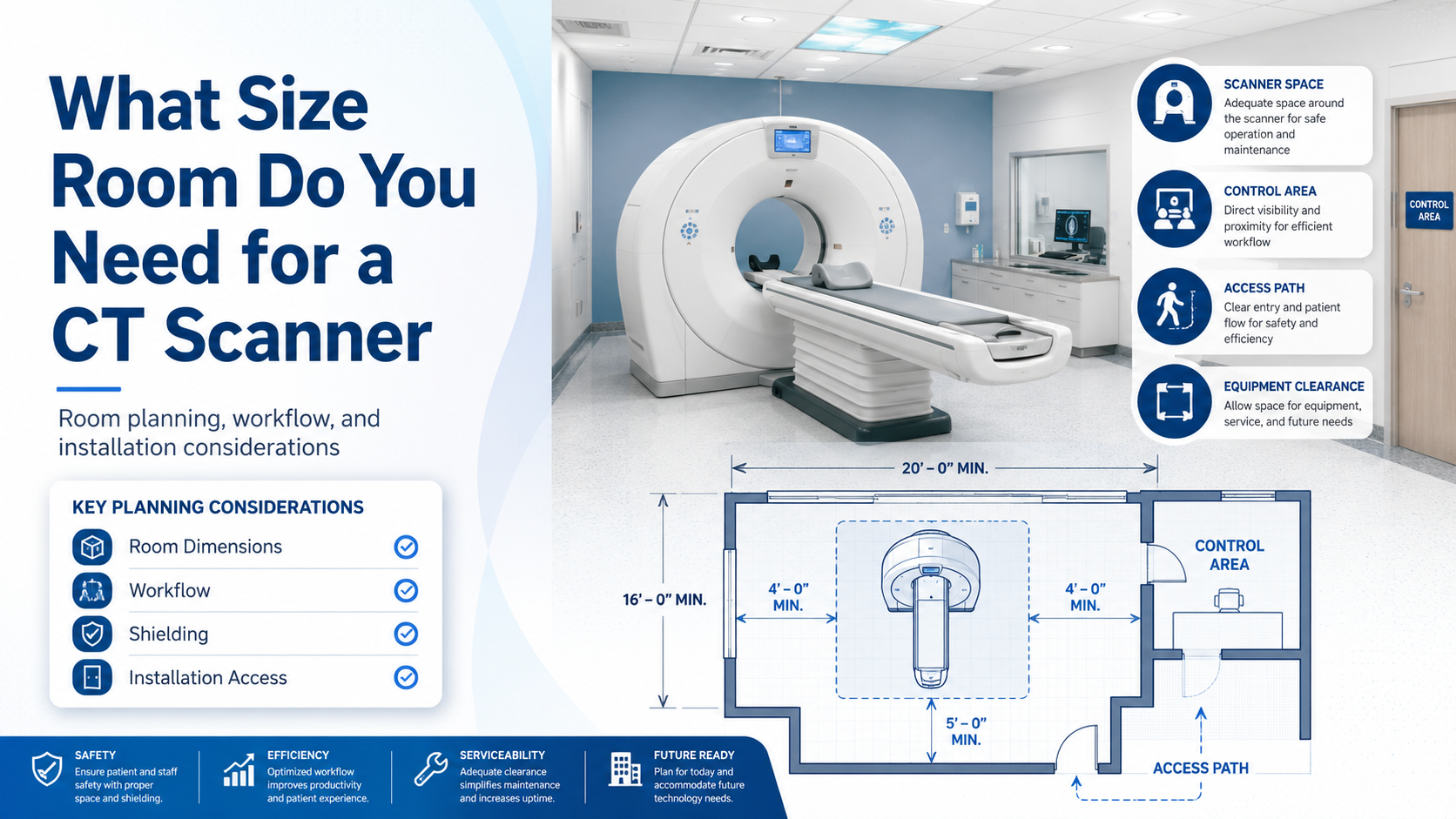

Baseline Dimensions: A standard CT scan room requires a minimum footprint of approximately 27' x 15' (8.2m x 4.6m), or 400–450 square feet. Alternative configurations may utilize a 20' x 24' (6.1m x 7.3m) footprint, with a minimum ceiling height of 9' (2.7m) to accommodate the gantry, table travel, and clinical workflow.
Multi-Room Configuration: Total space planning must account for three distinct zones: the primary scan room, the operator control room, and the dedicated equipment/power room.
Structural & Shielding Prerequisites: Facilities must verify floor weight-bearing capacity (often exceeding 4,500 lbs for the gantry alone) and implement physicist-calculated lead shielding in walls, door frames, and viewing windows.
Environmental Strictness: Continuous HVAC operation is mandatory, maintaining ambient temperatures between 64°F and 75°F (18°C to 24°C) and humidity between 30% and 70% to prevent hardware drift and electronic failure.
Industry-standard layouts typically dictate a narrow configuration of 27' x 15' (8.2m x 4.6m). Alternatively, a wider layout of 20' x 24' (6.1m x 7.3m) works well for specific architectural constraints where a long rectangular room is not feasible. You must distinguish between absolute minimum clearance boundaries and recommended operational space. Recommended space allows for code-blue emergencies, unobstructed stretcher access, and the movement of multiple medical personnel around the table simultaneously.
Bore size and slice-count directly impact the physical footprint. A 70cm bore requires less clearance than an 80cm wide-bore system designed for bariatric patients or interventional procedures. Similarly, a 16-slice machine demands less accessory cabinet space compared to a 256-slice spectral system, which requires massive data processing towers and larger power distribution units. When laying out the room, you have to account for the maximum extension of the patient table. If the table extends fully and hits a wall or a sink, the room fails inspection.
Contractors must mark the floor with tape during the design phase to visualize the exact footprint of the gantry and the table travel path. This physical walkthrough prevents spatial conflicts that look fine on a blueprint but fail in reality.
Layout Type | Dimensions (Imperial) | Dimensions (Metric) | Total Area | Best Use Case |
|---|---|---|---|---|
Narrow Configuration | 27' x 15' | 8.2m x 4.6m | 405 sq ft | Standard outpatient imaging centers with linear hallway access. |
Wide Configuration | 20' x 24' | 6.1m x 7.3m | 480 sq ft | Trauma centers requiring multi-stretcher access and crash carts. |
Bariatric/Wide-Bore | 24' x 24' | 7.3m x 7.3m | 576 sq ft | Hospitals utilizing 80cm bore systems with ceiling hoists. |
A minimum ceiling height of 9 feet (2.7 meters) is strictly required across the entire scan room. This vertical space accommodates ceiling-mounted contrast injectors, overhead structural supports, and surgical lighting if the room doubles for interventional procedures. It also provides room for radiation shield suspension systems that doctors pull down during fluoroscopy-guided biopsies.
Adequate height ensures technicians can easily remove the gantry cover during routine servicing. If the ceiling is too low, field engineers cannot lift the heavy plastic cowlings off the machine to access the X-ray tube or detector array. You also need space above the drop ceiling for heavy-duty Unistrut framing. This steel framing supports the ceiling-mounted injector rails, which can weigh several hundred pounds and experience dynamic loads when moved rapidly.
You must maintain a clearance of 3 to 4 feet on all sides of the patient table. This space allows for safe patient transfer from wheelchairs, gurneys, or hospital beds. Ancillary equipment requires dedicated spatial mapping. You must account for crash carts, IV poles, anesthesia machines, and ventilator clearance. In a trauma setting, you might have a respiratory therapist, an anesthesiologist, and two nurses all standing around the table while the technologist operates the machine.
Room length must accommodate the full longitudinal travel of the patient table. The cradle extension must operate fully without contacting walls or perimeter equipment. If a patient is 6'5" and the table extends outward, there must still be room for a technician to walk behind the table. Never place fixed cabinetry or sinks in the direct line of the table's maximum extension path.
The primary scan room serves as the central area housing the gantry, patient table, and injector. This room requires an open, unobstructed layout. An open design facilitates rapid patient positioning during emergencies. It also allows staff to easily clean biological spills without navigating around tight corners or unnecessary furniture.
Flooring in the primary scan room must be seamless, medical-grade vinyl. Seams trap bacteria and contrast media spills. The floor must also be perfectly level. We pour self-leveling epoxy compounds before laying the vinyl to ensure the gantry sits perfectly flat. If the gantry is tilted even a fraction of a degree, the internal rotating mass will wear out the bearings prematurely, leading to catastrophic tube failure and massive repair bills.
The control room houses technologist workstations, host computers, and communication intercom systems. Ergonomic positioning relative to the viewing window is non-negotiable. Technologists need an unobstructed direct line-of-sight to the patient's face on the table. This ensures patient safety and compliance during the scanning procedure. If a patient panics or has an allergic reaction to the contrast dye, the technologist must see it instantly.
Control rooms need dimmable lighting to reduce glare on the diagnostic monitors. The desk should be custom-built to hide the massive bundles of CAT6 and fiber optic cables running from the host computers to the equipment room. Do not just push a standard office desk against the wall; build a dedicated console with integrated cable management trays.
System cabinets, power distribution units (PDUs), and transformers require a dedicated footprint. Water-to-air cooling systems also reside here if the specific machine utilizes liquid cooling for the X-ray tube. You must isolate this room to manage acoustic decibel levels. The cooling fans in these cabinets sound like jet engines.
Main Disconnect Panel: Must be easily accessible for emergency shutdown.
Power Distribution Unit (PDU): Steps down and conditions the raw facility power.
Image Reconstruction Computer: The heavy-duty server that processes the raw slice data into 3D images.
Chiller Unit: Pumps coolant to the gantry (required for high-end spectral systems).
Isolation keeps electromagnetics and high heat generation away from patient and staff environments. This room needs its own dedicated thermostat and cooling supply. If the equipment room overheats, the system will automatically shut down to prevent melting the reconstruction servers, halting your entire imaging schedule for the day.
The combined weight of the gantry and table ranges from 4,000 to over 8,000 lbs. Structural engineering assessments are mandatory. Engineers must evaluate concrete slab thickness and sub-floor deflection limits. You cannot just place a machine this heavy on a standard commercial floor. We often have to cut out the existing concrete, dig down, and pour a reinforced, high-PSI concrete pad specifically for the gantry footprint.
Vibration isolation and strict floor leveling tolerances are critical. The floor must typically remain level within +/- 1/8 inch over a 10-foot span. If the building is near a train track or a busy highway, you must install vibration dampening pads under the concrete slab. Micro-vibrations will cause artifacts in the images, rendering them useless for diagnostic purposes.
Getting the machine from the delivery dock to the room is an often-overlooked requirement that causes massive headaches on installation day. You must measure minimum hallway widths and door frame clearances. Double doors or active partition walls are frequently necessary. The gantry is shipped in large crates on heavy-duty casters. If your hallway has a tight 90-degree turn, the riggers will not be able to make the corner.
Freight elevators must possess the weight capacities required for rigging and installation crews. A standard passenger elevator will fail under the load of a 5,000 lb gantry crate plus the rigging equipment. You must also check the floor loading capacity of the hallways leading to the room. We have seen heavy equipment crack terrazzo hallway floors because the point-load on the casters exceeded the tile's rating. Lay down heavy steel plates or thick plywood along the entire delivery path to distribute the weight.
A certified health physicist must calculate shielding requirements before any construction begins. These calculations rely on machine workload, room dimensions, and adjacent room occupancy. Waiting rooms require different shielding than exterior walls. A wall shared with a pediatric ward will require significantly more lead than a wall facing an empty parking lot.
Installation involves lead-lined gypsum board and lead-backed door frames. The drywall installers cannot just screw the boards to the studs like a normal room. Every screw hole must be covered with a lead disc, and every seam between the drywall sheets must be backed by a lead strip. If there is a gap of even one millimeter, radiation will leak through. Heavy-duty hinges are necessary to support the weight of lead-lined doors, which can weigh over 300 pounds each. Standard commercial hinges will sag within a month, causing the door to drag on the floor and fail to close properly.
Standard dimensions for lead-glass or lead-acrylic viewing windows start at 48" wide by 36" high. Widths of 96" are becoming common for multi-slice suites to give the technologist a panoramic view of the room. The glass requires specific lead-equivalency ratings. Typically, 1.6mm to 2.0mm lead equivalent is necessary to match the surrounding wall shielding profile.
The window frame itself must be lined with lead. The glass is incredibly heavy and requires specialized suction-cup lifting tools to install. Never attempt to cut lead glass on site; it must be ordered to the exact millimeter from the manufacturer. If the glass chips or cracks during installation, it loses its structural integrity and shielding certification, requiring a complete replacement.
Illuminated "X-Ray On" warning signs must sit above entry doors. These signs are hardwired directly into the machine's console. They only illuminate when the X-ray tube is actively producing radiation. Door interlock systems prevent exposure if a door opens during a scan. These systems must comply with state and local department of health regulations.
If someone opens the door while the machine is scanning, the interlock instantly cuts power to the X-ray tube. This protects the person walking in, but it ruins the scan, forcing the patient to receive a second dose of radiation and contrast dye. Therefore, access control is just as much about workflow efficiency as it is about safety. Install keypad locks or badge readers on the doors leading from the public hallway into the scan suite.
Operational parameters demand a temperature range of 64°F to 75°F (18°C to 24°C). Non-condensing relative humidity must stay between 30% and 70%. Fluctuations risk thermal expansion within the detector array. The detector array is the most sensitive and expensive part of the machine. If the room gets too hot, the microscopic gaps between the detector elements expand, causing image artifacts.
Condensation can form on high-voltage components if the humidity spikes, causing sudden sensor drift or catastrophic electrical arcing. We install dedicated humidity sensors in the room that tie directly into the building management system. If the humidity drops below 30%, static electricity builds up. A static shock from a technician touching the gantry can fry a circuit board worth thousands of dollars.
The gantry produces a high BTU/hr heat output during rotation. Power cabinets generate constant heat. You must install dedicated, 24/7 HVAC systems. Split systems independent of the main facility's night setback schedule are highly recommended. Hospitals often turn down the air conditioning at night to save money. You cannot do this in an imaging room. The equipment generates heat even when idle.
The HVAC ducting must be routed carefully. Do not place supply diffusers directly over the patient table. The cold air blowing down will make the patient shiver, causing motion artifacts on the images. Place the supply vents around the perimeter of the room and the return vents near the heat-generating equipment cabinets to pull the hot air away immediately.
Stable, dedicated three-phase electrical power is required. Installations typically use 480V or 208V at 100-150 KVA. You cannot share this electrical panel with any other equipment in the hospital. Elevators, HVAC compressors, or other heavy machinery on the same line will cause voltage drops. A voltage drop during a scan will cause the machine to abort the sequence.
Uninterruptible Power Supply (UPS) units require dedicated footprints. These battery backups keep the computers running during a power outage so the technicians can safely shut down the system without losing patient data. High-speed data drops are necessary for local storage, PACS integration, and rapid image transfer. Run redundant CAT6A or fiber optic lines from the control room to the hospital's main server room. A 256-slice scan generates gigabytes of data in seconds; a slow network connection will bottleneck your entire department.
Complete these steps before equipment delivery to avoid costly delays and contractor disputes:
Certified structural engineer sign-off on floor load capacity and vibration testing.
Certified health physicist calculation report completed, filed, and approved by the state.
Complete path of transit clearance check, physically measuring every door, corner, and elevator.
Dedicated HVAC system testing and balancing, running under full simulated heat load for 24 hours.
Electrical service installation, ground impedance verification (must be under 2 ohms), and PDU placement.
Conduit runs and cable tray installation, ensuring all under-floor troughs are clean and dry.
Lead shielding inspection by a third-party physicist using a Geiger counter before the drywall is painted.
Underestimating HVAC heat loads is a frequent error. Engineers often calculate the heat load based on the machine's idle state, not its peak scanning state. Failing to account for ceiling structural supports causes major delays when the injector arrives and there is nothing to bolt it to. Neglecting path-of-travel width restrictions halts delivery at the loading dock.
Ignoring local building fire-suppression system clashes with overhead gantry positioning creates compliance issues. You cannot have a fire sprinkler head directly above the high-voltage slip ring of the gantry. If that sprinkler accidentally discharges, it will destroy the machine. Coordinate with the fire marshal to position sprinkler heads around the perimeter of the room.
Retrofitting an existing clinical space presents structural challenges. You have to tear up floors, reinforce ceilings, and upgrade electrical panels in a building that is already occupied. This causes noise, dust, and disruption to patient care. Constructing a new modular room outside the main building offers timeline trade-offs. Modular buildings are pre-shielded and pre-wired at the factory, then dropped onto a concrete pad by a crane.
Administrators must assess which route yields the highest return on investment. If your hospital is landlocked, renovation is your only choice. If you have empty parking lot space, a modular build-out can be completed in half the time with zero disruption to the main hospital workflow. Evaluate your current facility constraints, budget, and timeline before making a decision.
A scan room is a highly engineered environment where every millimeter and every electrical volt matters. Spatial dimensions, structural integrity, and environmental controls are critical to operational uptime and regulatory approval. Cutting corners on the HVAC system or the floor leveling will result in a machine that breaks down constantly and produces sub-standard images.
Request preliminary site planning templates from the manufacturer early in the procurement phase to match specific scanner models to your available footprint.
Commission a formal site audit by a medical imaging architect and a structural engineer to verify floor loading and electrical capacity.
Consult a certified health physicist to draft the shielding plan before pulling any construction permits.
Perform a physical walkthrough of the delivery path with the rigging company to identify any choke points.
A: The standard minimum footprint is approximately 27 feet by 15 feet, totaling 400 to 450 square feet. A 20 feet by 24 feet configuration is also acceptable depending on architectural constraints and the specific model being installed.
A: A minimum ceiling height of 9 feet (2.7 meters) is required. This space accommodates the gantry, ceiling-mounted contrast injectors, structural supports, and allows technicians to remove the machine covers during maintenance.
A: The floor must support the combined weight of the gantry and patient table, which typically ranges from 4,000 to over 8,000 lbs. A structural engineer must verify the concrete slab capacity and deflection limits.
A: The room must maintain a continuous temperature between 64°F and 75°F (18°C to 24°C) and a non-condensing relative humidity between 30% and 70%. Dedicated 24/7 cooling is mandatory.
A: A certified health physicist must calculate the exact lead shielding requirements. They base this on machine workload, room dimensions, and the occupancy type of all adjacent rooms.
A: No. The system requires stable, dedicated three-phase electrical power, typically 480V or 208V at 100-150 KVA. It cannot share an electrical panel with other hospital equipment due to voltage drop risks.
