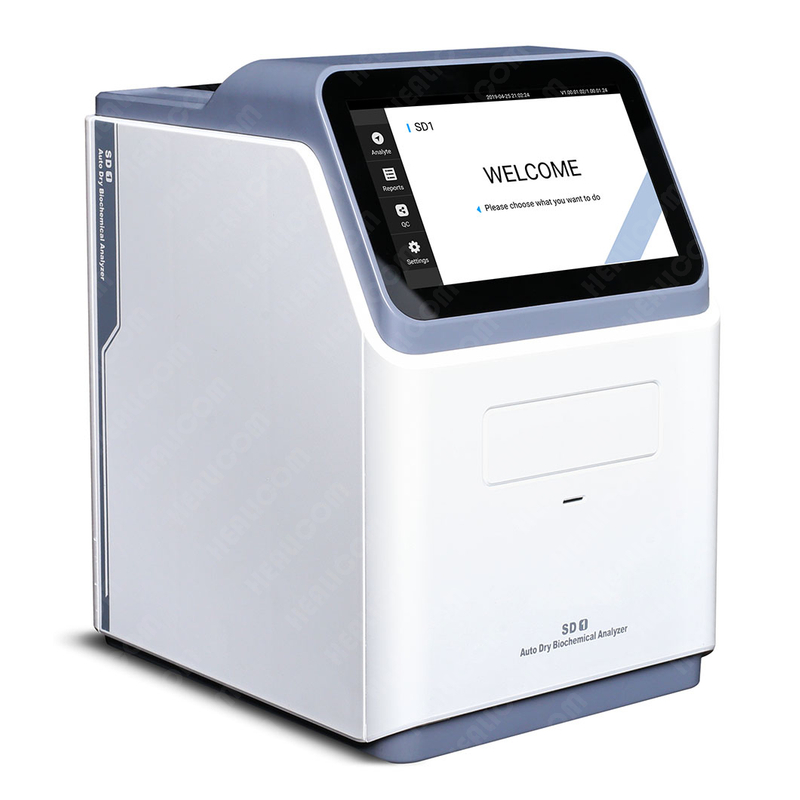

SD1
Product Description
Little sample volume required
Sample volume needed is 1/10 - 1/20 of traditional chemistry analyzer.
Easy to carry
4.6 kg. The portable analyzer designed to save space, use it anywhere anytime.
Large screen
The 7-inch large color capacitive screen, perfect human-computer interaction design, supports precise touch for operators of all ages.
Accurate result
Using the photoelectric colorimetric principle, the SD1 analyzer has many advantages versus traditional dry biochemistry analyzer
using the light reflection method. Dilution of test sample is guaranteed without random errors and cross contaminations.
Fast detection

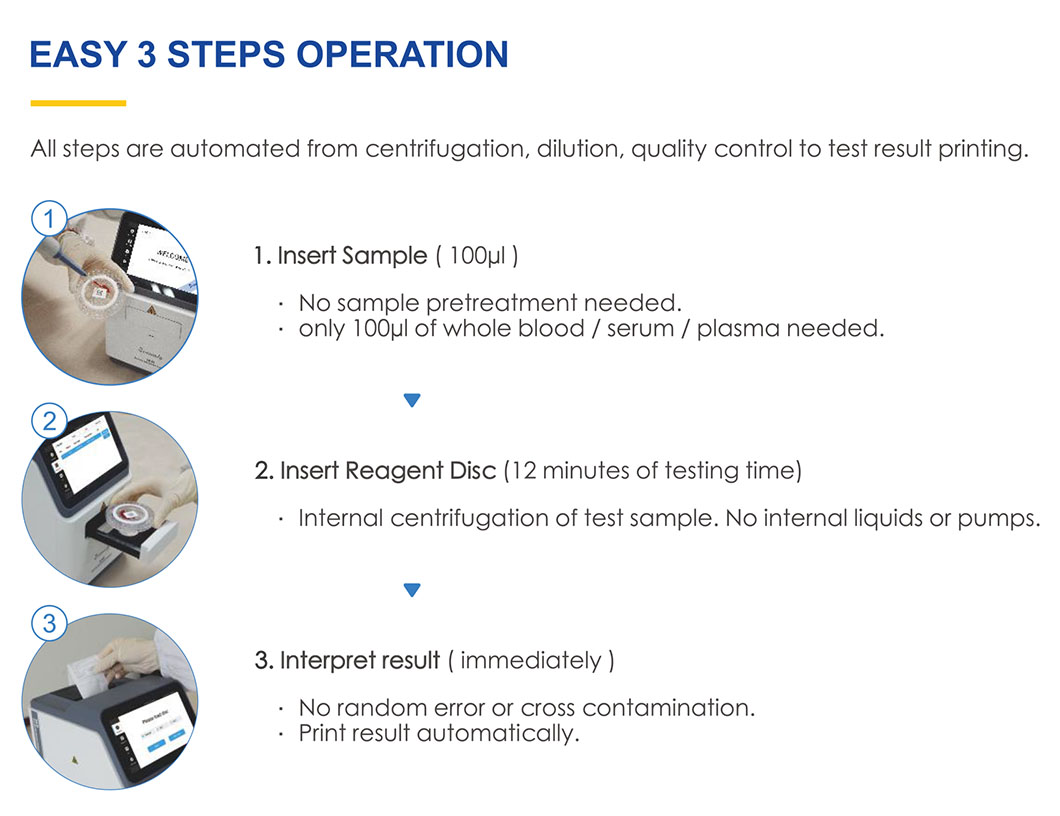

Simple 3-step operation, the whole process from adding anticoagulant whole blood to outputting results can be completed in about 12 minutes, helping you to quickly obtain comprehensive and reliable test results, reducing customer waiting time and improving customer satisfaction.
| Part Of The Reactive Discs | |
| Comprehensive 19 items | ALB，ALP，AMY，CHE，CK，Crea，DB，GLU，TB，TBA，TC，TG，TP，UA，UREA，GGT，ALT，HDL，AST |
| 10 items of electrolyte renal function | Ca，Cl，Crea，K，Na，Mg，PHOS，tCO2，UREA，UA |
| 8 items of kidney function | ALB，Ca，Crea，GLU，UA，PHOS，tCO2，UREA |
| 7 electrolytes | Ca，Cl，K，Na，Mg，PHOS，tCO2 |
| 6 glycolipids | GLU，TC，TG，HDL，ALT，AST |
| 4 items of blood lipids | TC，TG，ALT，HDL |
| Pancreas 2 items | AMY，LPS |
| Myocardial 4 items | CK，LDH，HBDH ，AST |
| Technical Specifications | |
| Sample Type | Anti-coagulation whole blood, serum, plasma |
| Sample Volume | 90-120 μl |
| Bar Code | QR Code |
| Testing Time | 12 minutes/sample |
| Testing Principle | Absorption spectroscopy, transmission turbidimetry |
| Testing Method | End point, kinetic, fixed time, turbidmetry etc |
| Temperature | 37±0.3℃ |
| Absorbance | 0-3.0Abs |
| Resolution | 0.001 Abs |
| Cross Contamination | 0 |
| QC & Calibrate | IQC Intelligent QC |
| Working Condition | Temperature:10-30℃ Humidity: 30%-70% |
| Light Source | 120v/20w, halogen tungsten lamp’s lifespan is over 2500 hours |
| Power Supply | AC220V, 50Hz |
| Power Rating | 120VA |
| Optical System | After the filter spectral, 8 wavelength synchronous detection: 340,405,450,505,546,600,630,850nm |
| Display | Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice |
| Storage | 500,000 results |
| Printer | Built-in thermal printer |
| Connectors | 4 USB ports, 1 LAN port |
| Weight | 4.6KG |
| Size | 200mm(L)*252mm(W)*299mm(H) |
