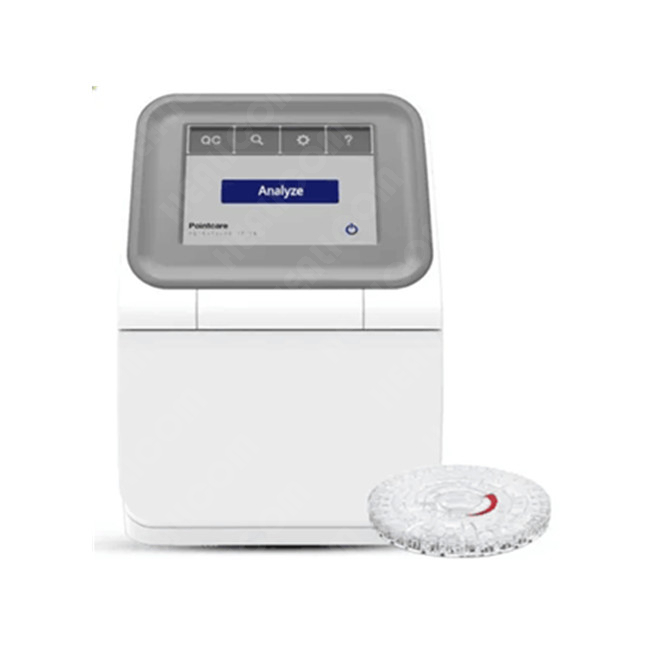

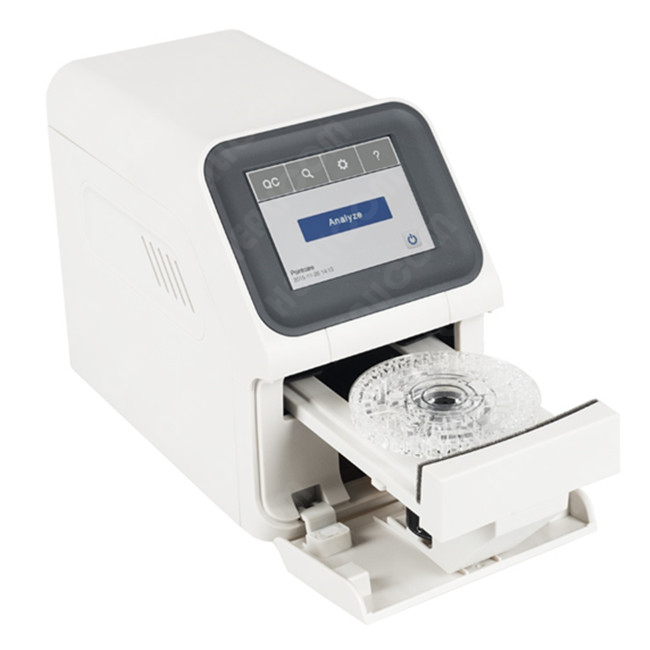

M4
Product Description
EASYTO USE
Fully automated system - no special operating skills required
• 4.3 inch capacitive touch screen
• 0.1cc whole blood, serum or plasma
• Barcoded prefabricated calibration information
• LIS compatible, no need to manually enter patient information
• Results can be printed on a hard copy via printer or transferred electronically, e.g. to a work station
• Ability to print reports with your practice logo by installing the MNCHIP medical data management platform
PRECISE MEASUREMENTS
Advanced technology ensures precise results
• Microfluidic discs with pre-installed reagent beads ensure accurate analysis of blood samples and reagents
• Stable measurement optics include a troboscopic xenon lamp, a wavelength selection system, and a multiple-wavelength detector
• Integrated quality control software monitors the entire process in real time (ensuring consistent analysis of blood samples, reagents, microfluidic discs and chemistry analyzer)
Technical Specifications | |
Sample Type | Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum |
Sample Size | 100μl |
Time to Results | About 10 minutes |
Parameters | Up to 17 parameters in one test, 32 parameters configured into 9 profiles |
Reagent Disc | Disposable, prepackaged with self-contained lyophilized reagent |
Calibration | Automatic self-calibration by scanning QR Code on the aluminum foil pouch |
Quality Control | Built-in Realtime Quality Control (RQC) system |
User Interface | Full-color touch screen |
Connection Interfaces | WLAN, USB port, Ethernet interface, compatible with HIS |
Print Mode | Optional external thermal printer, MNCHIP Medical Data Management Platform, HIS |
Reaction Temperature | 37℃±0.1℃ |
Data Capacity | More than 50,000 sets of patient and quality control data |
Operation Environment | Temperature 10-30℃, Humidity 40-85% |
Power Requirement | AC 100V-240V, 50-60HZ |
Dimensions | 21(L)*12.5(W)*17.5(H)cm |
Weight | 2.3kg |
