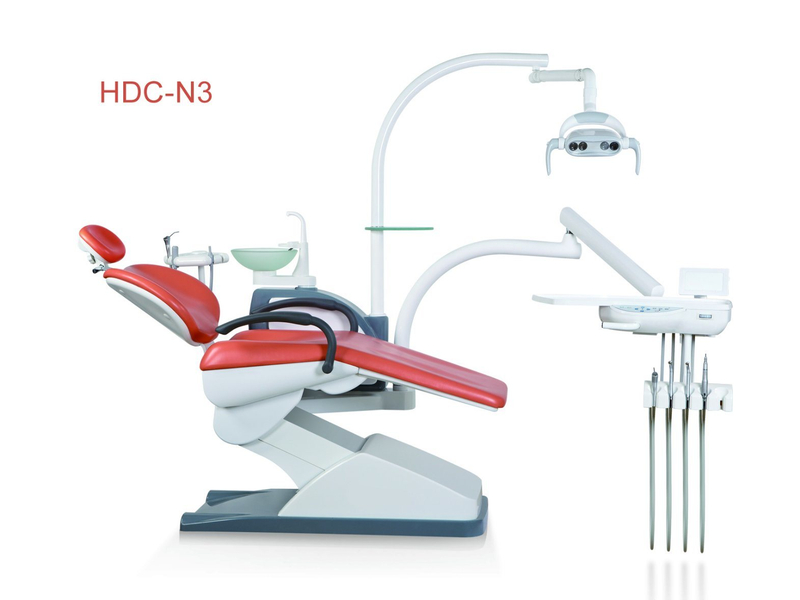

Hdc-N3 New Clinic Dental Chair


PDF Export

  • HDC-N3
  • ISO, CE
  • Luxury
  • 1 Year
  • 0.2_0.4MPa
  • 420-800mm
  • Curing Light
  • Dentle Chair
  • Carton
  • Jiangsu, China
  • New
  • Adult, Child
  • Ce ISO
  • 220V/AC(110V/AC)/50/60Hz
  • 0.55MPa
  • Endoscope System
  • Type 2
  • Healicom
  • CE, ISO
  • 9018909090

Product Description

Hdc-N3 New Clinic Dental Chair

Power supply:
Electrical supply: 220V/AC(110V/AC)/50/60HZ
Water supply: 0.2-0.4MPa
Air supply: 0.55Mpa
Master switch for air / water / electricity supply
Dental light
LED light with on/off and non-class intensity control sensor
Light intensity 15000-20000 lux
Color temperature 6000- 6500  K
Flexible arm, adjustable range ≥80 degree
3-axis rotation, vertical, horizontal, and axial & diagonal movements
Detachable handle
Dental treatment element
Chair mounted arms
Air-lock instrument arm
Three memory positions
Big instrument table with five instrument positions, plastic table pad
Three way syringe with removable tip
Main touch panel for all chair movement and cuspidor
Extra glass table for patient
Patient chair
Synchronized chair movement, 24V/DC motor
Wide chair and backrest
Heavy-Gauged Steel Framing. Epoxy-Painted
Fixed left armrest and rotatable right armrest
Backrest moving range: 75°- 180°
Chair moving range: 420-800mm, Max. Load: 225kg
Foot controller working for chair movement and handpiece
Water unit
180°rotatable & detachable glass spittoon
Timed cup filler spittoon flusher
Saliva ejector and air suction with outer filters
Automatic thermostat water-heating system
Pure water bottle made from safe material
Assistant element:
Three way syringe with warm water and removable tip
Saliva ejector and air suction with high quality tubing
Assistant touch panel for all chair movements and cuspidor
Dentist's stool
Dentist stool (high quality ) with big seat and flexibly backrest
Gas spring moving system
Casting aluminum stool base
Standard configuration:
 3-way syringe (cold/hot)                           2sets
 Powerful suction device                            1set
 saliva ejector                                            1set
 Dentists Stool                                            1set
 Sensor dental light                                    1set
 Warm water system                                   1set
 Purified water supply system                     1set
 Rotatable glass spittoon                           1set
 DC 24V electric driven chair                     1set
 Multifuctional assistant device                  1set
 LED x-ray viewer                                      1set
 2/4 holes high /low speed handpiece
 Endoscope system
 Curing light
 Fiber optical handpiece
 Built-in Ultrasonic Scale
 Electric micro motor
 Electrical supply 220V/AC(110V/AC)/50/60HZ
 Water supply  0.2-0.4MPa
 Air supply 0.55Mpa
Chair moving range 420-800mm
