HDC-N1
Healicom
Product Description

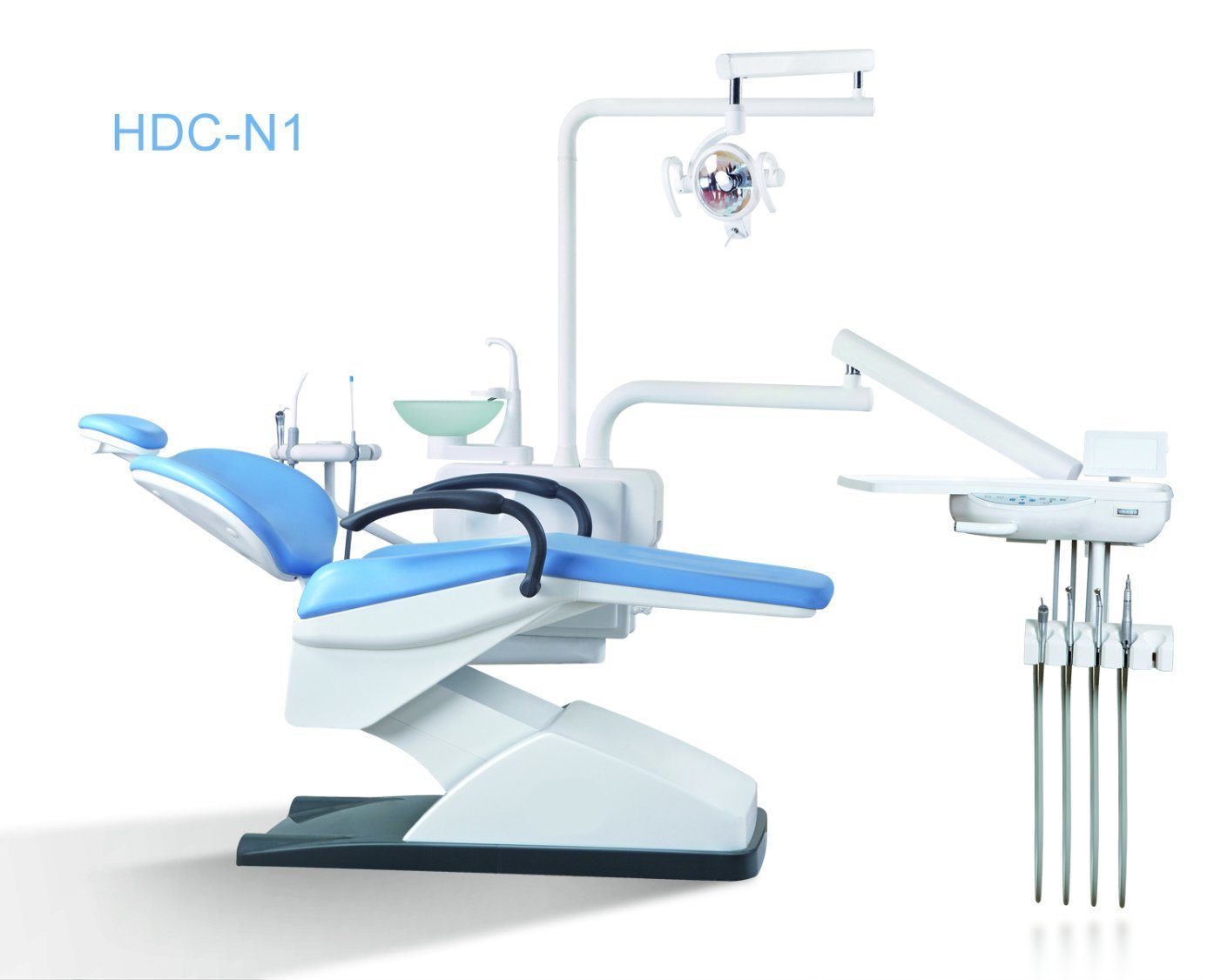

HDC-N1 Dental Equipment Electric Dental Unit Chair with High Quality
| Specifications | Power voltage | 220V-50Hz / 110V-60Hz |
Motor voltage | 24V | |
Air pressure | 0.5MPa-0.8MPa | |
| Water pressure | 0.2MPa-0.4MPa | |
| Dental light(Halogen light with two classes intensity) | Light intensity | 15000-20000 lux |
Color temperature | 5000K | |
| Flexible arm | adjustable range ≥80 degree | |
| Dental treatment element | Chair mounted delivery arms Air-lock instrument arm Big instrument table with five instrument positions, plastic table pad Three way syringe with removable tip Main touch panel for chair movement and cuspidor Extra plastic table for patient | |
| Patient chair | Motor driven chair, 24V/DC motor Wide chair and backrest Heavy-Gauged Steel Framing. Epoxy-Painted Backrest moving range: 75°- 180° Chair moving range: 420-800mm, Max. Load: 225kg Foot controller working for chair movement and handpiece | |
| Water unit | (1)180°rotatable & detachable glass spittoon (2)Timed cup filler spittoon flusher (3)Saliva ejector and air suction with outer filters (4)Automatic thermostat water-heating system (5)Pure water bottle made from safe material | |
| Assistant element | (1)Three way syringe with warm water and removable tip (2)Saliva ejector and air suction with high quality tubing (3)Assistant touch panel for chair movements and cuspidor | |
| Dentist's stool | (1)Dentist stool (high quality) with backrest (2)Gas spring moving system (3)Movable stool base | |

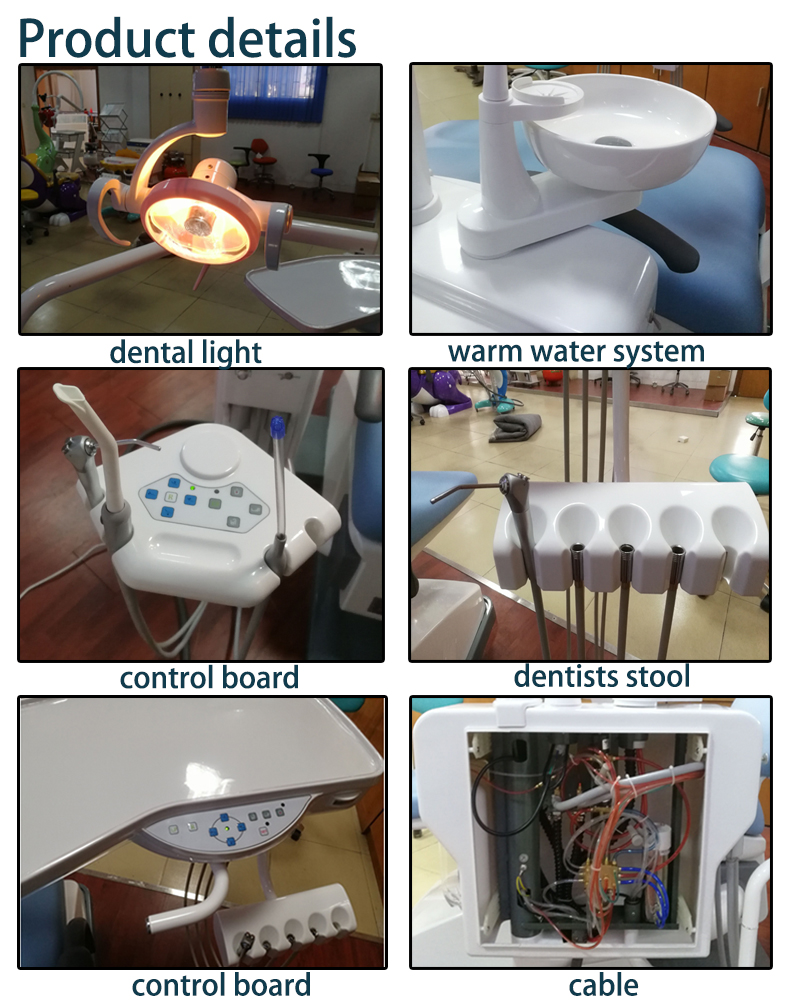

Standard configuration
Standard configuration | Quantity |
3-way syringe (cold/hot) | 2sets |
Powerful suction device | 1set |
Saliva ejector | 1set |
Dentists Stool | 1set |
Dental light | 1set |
Warm water system | 1set |
Purified water supply system | 1set |
Rotatable ceramic spittoon | 1set |
Options
2/4 holes high /low speed handpiece
Endoscope system
Curing light
Fiber optical handpiece
Built-in Ultrasonic Scale
Electric micro motor
