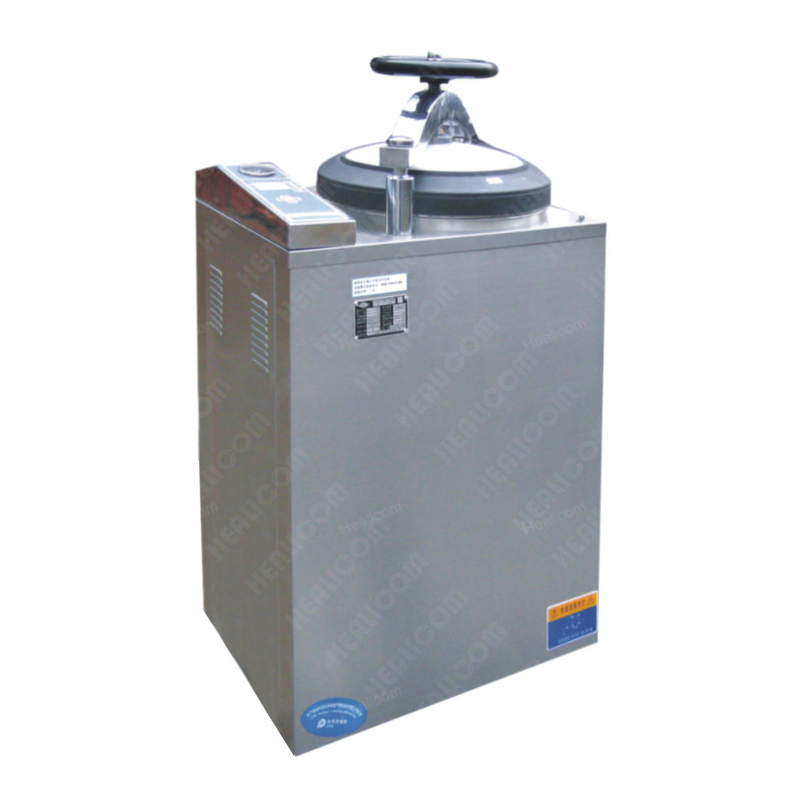

HVS-DV 50L 75L 100L Fully Stainless Steel pulse vacuum Vertical Pressure Steam Autoclave

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HVS-DV

  • Healicom

Product Description

Characteristics:

1.   Automatically controlled by computer, digital display of working status, touch type key.
2.   Dynamically showed the temperature, pressure time and vacuum rate and the full cycle
3.   fully automatically route for water inlet, pulse vacuum,heating, sterilizing, draining, exhausting, vacuum drying.
4.   3 times pulse vacuum,which make the vacuum rate as -0.081mpa,and ensure the high extracting of inner air from dressing, A.B type hollowed appliance.
5.   with 4 fixed program for appliance, medical dressing, rubbers and fluid,and the user can also set the program as they need.
6.   equipped with the PT/TT testing connector, easy to run the testing.
7.   Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.
8.   Equipped with bacteria filter, ensure the sterile air enter the inner vacuum environment,avoid the second contamination.
9.   hand wheel type of quick-open door structure,self-inflating type seal.
10.  adopted with immersed heating, with high heating efficiency.
11.  steam-water inner circulation system:no steam discharge, and the environment for sterilizing will be clean and dry.
12.  automatically shut off with beep reminding after sterilization.
13.  fully high quality stainless, equipped with double stainless steel basket.

Technical Specifications
Model
HVS-35DV
HVS-100DV
Chamber volume
35L(φ318×450)mm
100L(φ440×650)mm
working pressure
0.22MPa
0.22MPa
Working temperature
134℃
134℃
Heat average
≤±1℃
≤±1℃
Timer
0~99min
0~99min
Adjustment of temperature
105~134℃
105~134℃
Power
2.5KW /AC220V.50Hz
4.5KW /AC220V.50Hz
Overall dimension
600*410*1030(mm)
730*510*1270(mm)
Transport dimension
730*500*1170(mm)
820*600*1380(mm)
G.W/N.W
96Kg/ 77Kg
135Kg/ 110Kg
