HVS-BL
Healicom
Product Description

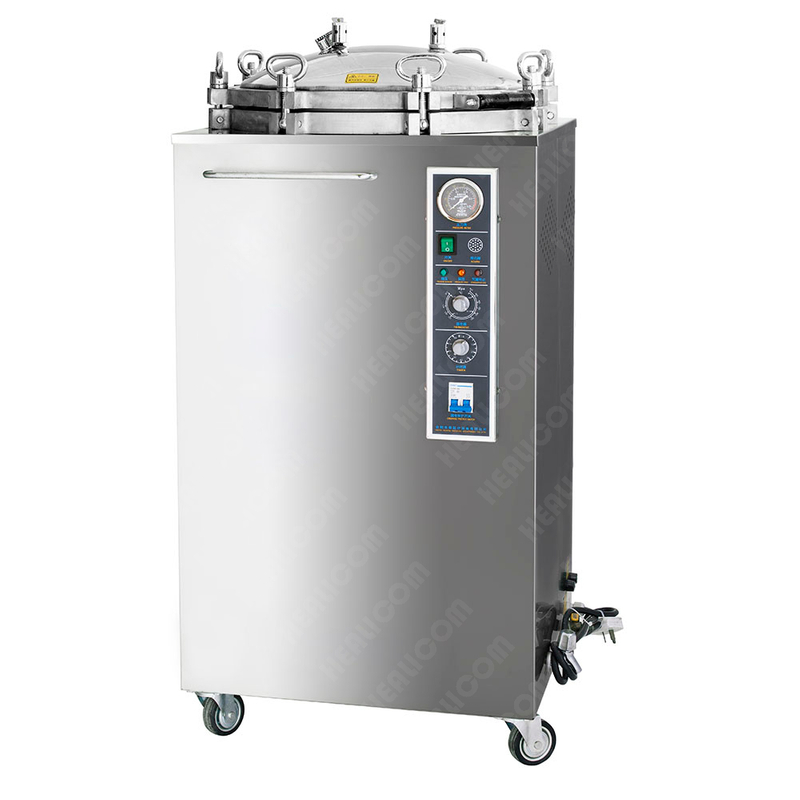

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Full SUS 304 stainless steel structure
• Accurate dual scale indicate pressure gauge
• Silicone seal ensuring no steam leakage
• Spin buttons to set sterilization temperature and time
• Blue, orange and red light showing work status
• Automatic release when overpressure
• Water shortage and over heating protection
• Drying action can be added (Best large than 75L volume)
Model | HVS-B35L | HVS-B50L | HVS-B75L | HVS-B100L | HVS-B120L | HVS-B150L |
Stenilizing chamber volume | 35L φ300×485mm | 50L φ320×545mm | 75L φ388×480mm | 100L φ388×630mm | 120L φ460×590mm | 150L φ460×700mm |
Working temperature | 134ºC | |||||
Max. working pressure | 115ºC-129ºC | |||||
Timer range | 0-80 min | |||||
Power | AC220V/50Hz/2.5KW | AC220V/50Hz/3.5KW | AC220V/50Hz/4.0KW | |||
Heat average | ≤±1ºC | |||||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 7KW/AC220V 50HZ |
