HQ-450DY
Healicom
Product Description

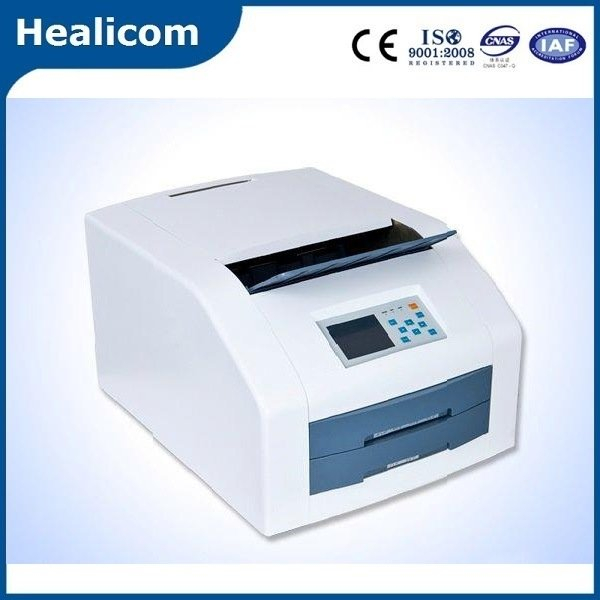

HQ-450DY High Quality Hospital Use Portable Dr Film Printer X-Ray Film Printer
Features
1.Low fog, high sharpness, high max density, bright tone, conveniently to use.
2.It can be processed under room light since the film was not sensitive to light, It can be directly printed by HQ-450DY to get ideal image.
3.Double cassette chambers of design, online printable for 2 spec of film at the same time. Printed image is clean, with full range of layer, same level as international famous brand.
Parameters:
| Print Technology | Direct thermal (dry, daylight safe operation) |
| Spatial Resolution | 320dpi (12.6 pixels/mm) |
| Throughput | 35×43 cm (14"×17") About 80 films per hour |
| Time to Operate | 3 minutes (ready to print from "off") |
| Gray scale Contrast Resolution | 12 bits (4096) |
| Film Input | Two supply cassettes, 50 to 100 sheets capacity each cassette |
| Film Output | One receive tray, 50 sheets capacity |
| Film Sizes | 14"×17", 11"x14", 10"x12", 8" ×10" |
| Supply Cassettes | All Film is pre-packaged in factory sealed, disposable cassettes |
| Interfaces | 10/100 Base-T Ethernet (RJ-45) |
| Network Protocols | Standard DICOM connection, networking print |
| Image Quality | Automatic calibration using built-in densitometer |
| Image Control | Contrast, Gray, Polarity, Rotation, Saturation, Scaling |
| Sheet Control | Density Adjusting (D max), Look-Up Tables (LUT), Captions, Sheet Coverage, Border Fill |
| Control Panel | Large, backlit LCD display, displaying Online, Alert, Fault and Active |
| Processor | Intel |
| Memory | 256 MB RAM |
| Hard Disk | 20GB (18GB available for spooling) |
| Power | 100-120/230V-50/60Hz, 600W printing, 75W idle |
| Weight | 40kg |
| Engine Dimensions | 41cm (H), 56cm (W), 72cm (L) |
| Environment | Operating Temperature: 15-30°C |
| Storage: -22.2~50.6°C | |
| Operating Humidity: 10~70% R.H. (non-condensing) |
