HXP-F
Healicom
Product Description

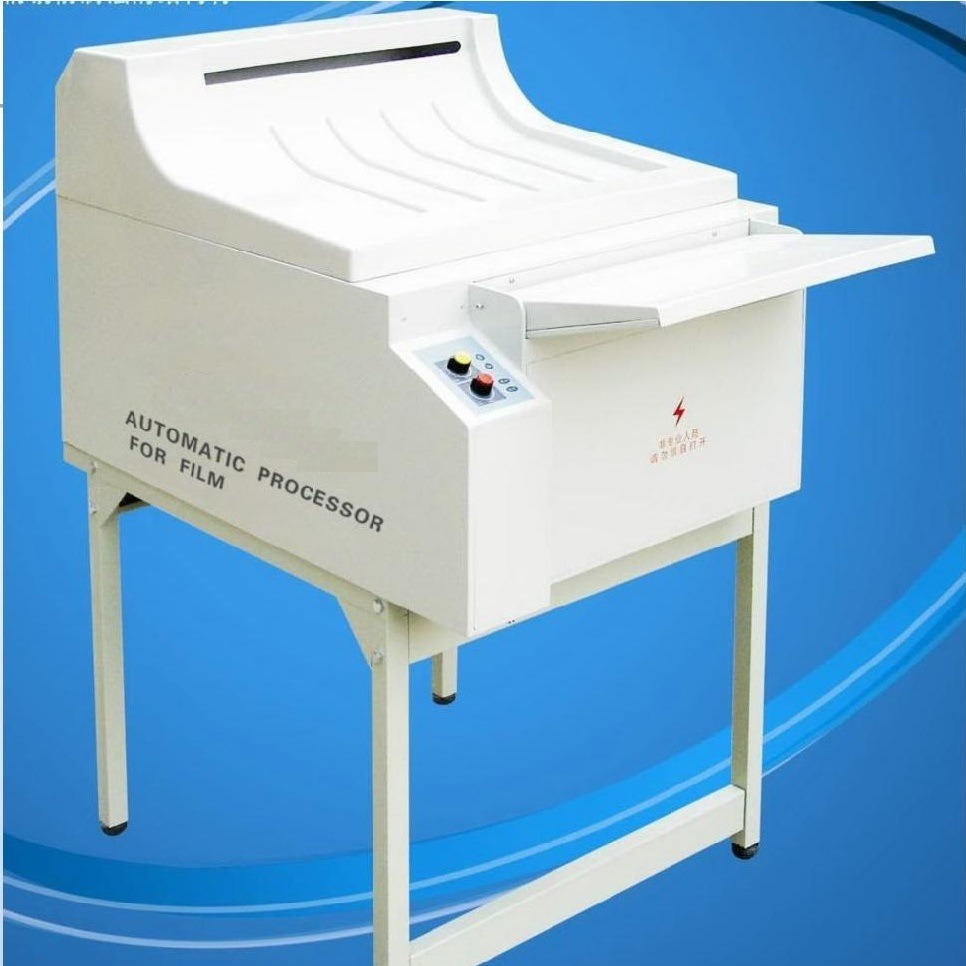

HXP-F Hospital Use Medical Automatic X-Ray Film Processor/developer
Features:
1.New designed body and beautiful outlook. Taking films very expediently due films turn above.
2.Narrow frame make operate easily and break, install simply. Easy to clear, check and repair.
3.Occupy small ground, install very freely, fit full dark room or half dark room.
4.For "U" shape continue rolling and no touch guide system design, no risk of film jamming or scratch and body shadow. Through full developing, fixing and washing, image make very clear and no change for long time.
5. The rollers' material can resist high-temperate and crystallization. No change shape and swell for using long time.
6. Microprocessor controls heating, automatic check and touch films, replenishing chemicals.
7.Keep sleep situation when no films need process after a while. Stop heating and rolling, then cut enter water. This can save energy for max limit.
Specifications:
| Developed film size | 5" x 7"~14" x 17" |
| Max. developing width | 356mm (14") |
| Channel volume | developer 9L, fixer 9L, water 9L |
| Developing speed | 90S ~ 180S at option |
| Developing temp. | 28°C--35°C at option |
| Developing capacity | 140pcs (14'x17') 180pcs (10'x12') |
| Power source | AC220V, 50/60Hz |
| Power | 1.8kw |
| Net weight | 90kg |
| Gross weight | 155 kg |
| Packing | 1340x750x1300 (L*W*H) |
