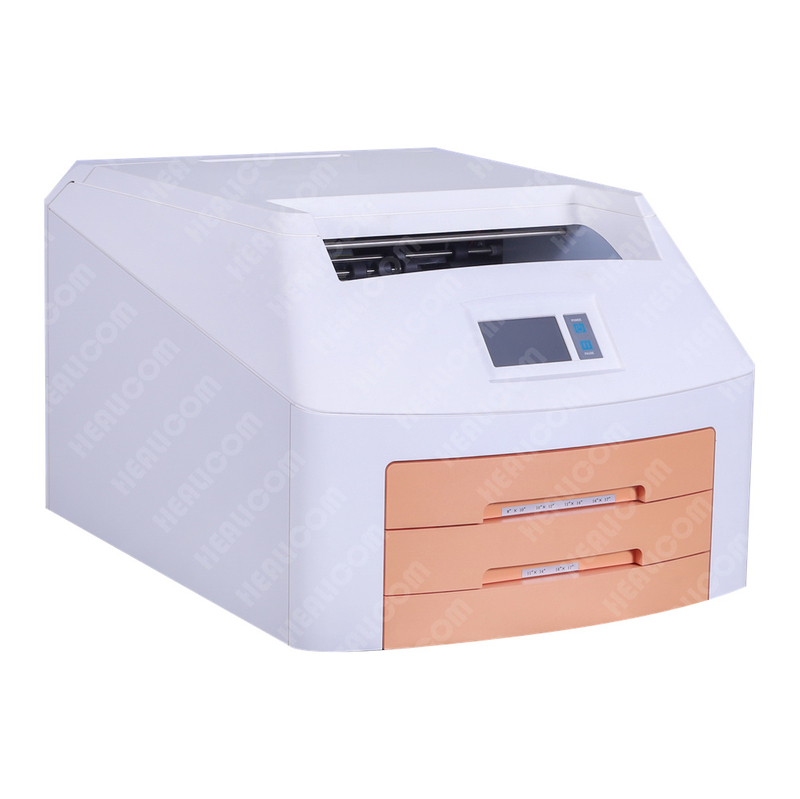

HQ-430DY/HQ-460DY/HQ-760DY
Healicom
Product Description
The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Mammography, Orthopaedics, Dental Imaging and more.
The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
| Technical specifications | |||
| Model | HQ-430DY | HQ-460DY | HQ-760DY |
| Print Technology | Direct thermal (dry, daylight-load film) | ||
| Spatial Resolution | 320dpi (12.6 pixels/mm) | 508dpi(20 pixels/mm) | |
| Throughput | 14’’×17’’ ≥70 sheets/h ; 8’’×10’’ ≥90 sheets/h | 14’’×17’’≥60 sheets/h; 8’’×10’’ ≥80 sheets/h | |
| Grayscale Contrast Resolution | 14 bits | ||
| Film Tray | One supply tray, 100-sheet capacity total | Two supply trays, 200-sheet capacity total | |
| Film Sizes | 8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’ | ||
| Applicable Film | Medical Dry Thermal Film(blue or clear base) | ||
| Interface | 10/100/1000 Base-T Ethernet (RJ-45) | ||
| Network Protocols | Standard DICOM 3.0 connection | ||
| Image Quality | Automatic calibration using built-in densitometer | ||
| Control Panel | Touch Screen, Online Display, Alert, Fault and Active | ||
| Power Supply | 100-240VAC 50/60Hz 600W | ||
| Weight | 50Kg | ||
| Operating Temperature | 5℃-35℃ | ||
| Operating Humidity | 35%-85% | ||
| Storage Humidity | 30%-95% | ||
| Storage Temperature | -22℃-50℃ | ||
| Base Holding | Optional | ||
