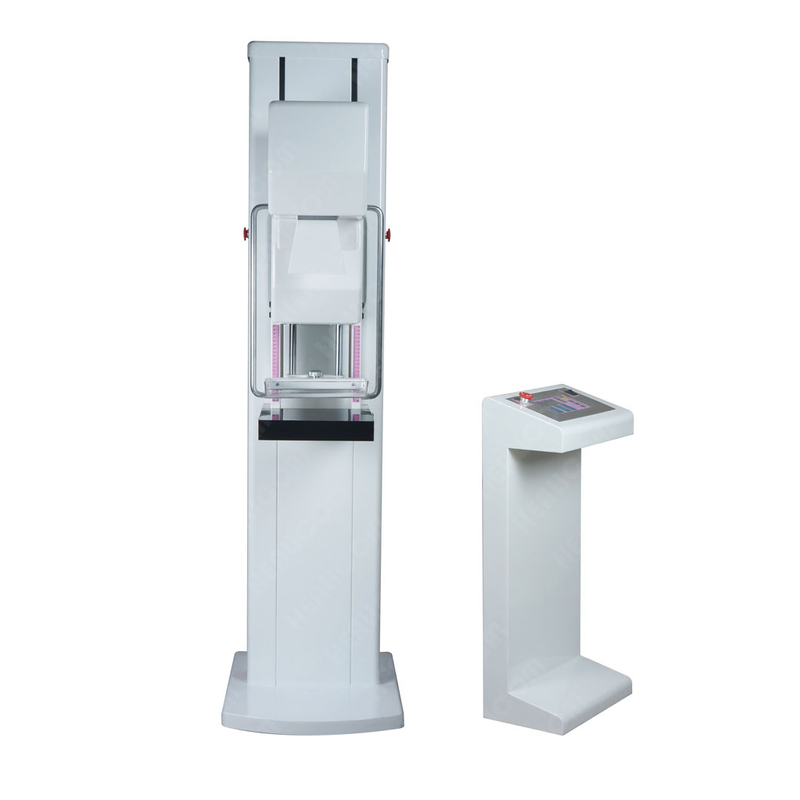

HM-9800B 6kw 80kHz high frequency analog mammography machine

Two different X-ray tubes to choose:

•  Hangzhou LR01 tube from China
•  IAE C339V tube from Italy

Main Parameters
1. X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type: High Frequency Inverter 80kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kW

2. X-ray Tube
• Hangzhou LR01 tube from China
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 100KJ
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）, Al（0.5mm）

• IAE C339V tube from Italy
Focal Spot Size: Dual Focus 0.1/0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)

3. Radiographic Stand
C-ARM: Vertical Movement: 580mm
Rotations Deg: +175°~-180°
SID: 650mm

4. Cassette Image Receptor
Bucky Device: 18*24cm Bucky drive mechanism
Grid Ratio: 5:1, 30 Line/cm

5. Radiographic Stand
C-ARM Vertical Movement: 580mm
C-ARM Rotation: +175°～-180°
SID: 650mm

6. Line Voltage
220Vac@25A, Single phase
