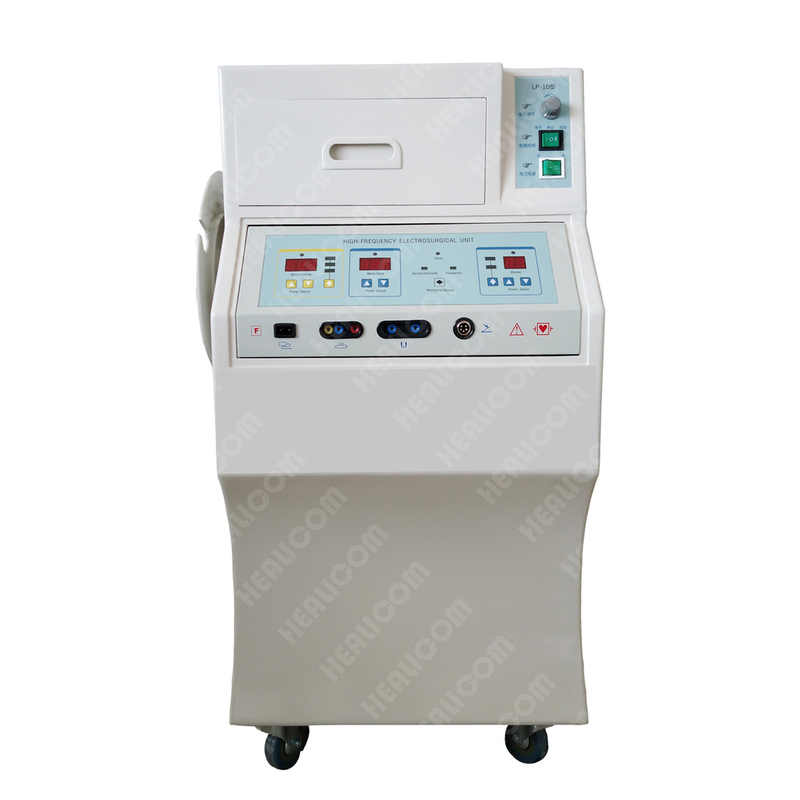

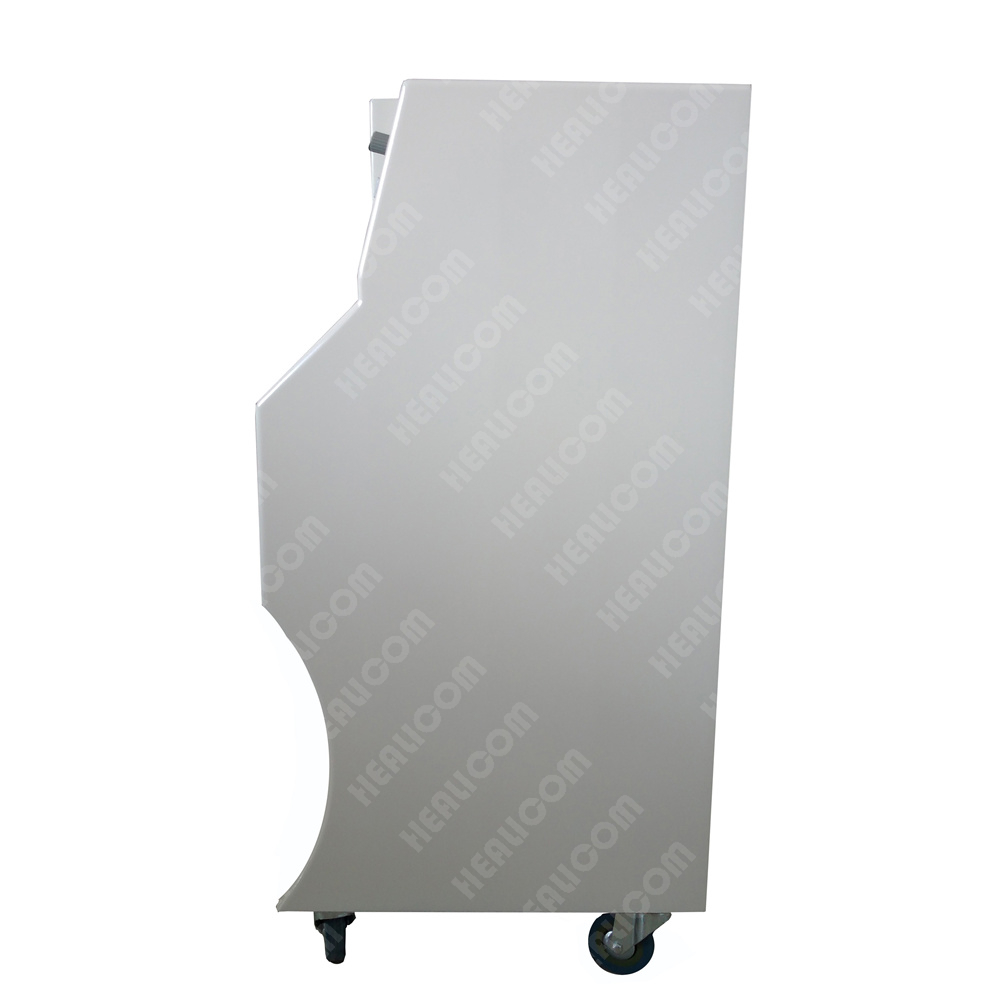

HP-1D High Frequency Electrosurgical Unit / Electrosurgical Leep Surgery System
Feature:
1. HE-50D High Frequency Electrosurgical Unit
1.1. Classification: Class I Type CF
1.2. Main Frequency: 625kHz±5%
1.3. The mode of operation: CONTINUOUS OPERATION WITH INTERMITTENT LOADING, 10s/30s
1.4. Output power and peak voltage:
Product Parameter
Spec.Mode
Output Power
Power Range
Resistance
Monopolar Pure cutting
5~350W
500Ω
Monopolar Blend 1
5~250W
500Ω
Monopolar Blend 2
5~200W
500Ω
Monopolar Contact Coagulation
5~200W
500Ω
Bipolar Standard Coagulation
2~70W
150Ω
1.5. Automatic Storage: The working mode and output power set during operation can be stored in the unit. 1.6. High Frequency Leakage Current The neutral electrode is isolated from the earth during the high frequency operation, the High Frequency Leakage Current <150mA. 1.7. Output Channels: Monopolar: 1 channel, Bipolar: 1 channel. 1.8. Output Setting and Indicating: The output is set by key pressing in different area according to different working mode, it is displayed digitally. 1.9. Output Indicating Visual Indicator: Monopolar Cutting - Yellow / Coag - Blue / Bipo - Blue Audio Indicator: When the power is output, there is an audio indicator. 1.10. Error Indicating Visual Indicator: The red indicator indicating the error and danger detected by self-detecting or monitoring. Audio Indicator: When alarming, there is an pulse audio indicating. 1.11. Output Control Monopolar: Hand Control, Foot Control. Bipolar: Foot Control, Automatic Control.
2. HP-1 Trolley smoke vacuum 2.1. Maximum air flow: 100L/min 2.2. Ventilate Strength: 10 - 100% flow volume: 10L/min-100L/min 2.3. Working Noise: < 60db 2.4. Particle Remove Rate: 99.999% @0.1um 2.5. Bad Smell Removal Rate: 97% @1year 3. After the trolley integration 3.1. Power supply: ~220V,50Hz 3.2. Max Input Power: 1200VA 3.3. Dimensions: :460mm×440mm×800mm 3.4. Net Weight: 22kg 3.5. Use condition: environment temperature +5℃~+40℃ relative humidity≤85% 3.6. Transportation and storage condition: environment temperature -40℃~+50℃ relative humidity≤90%
