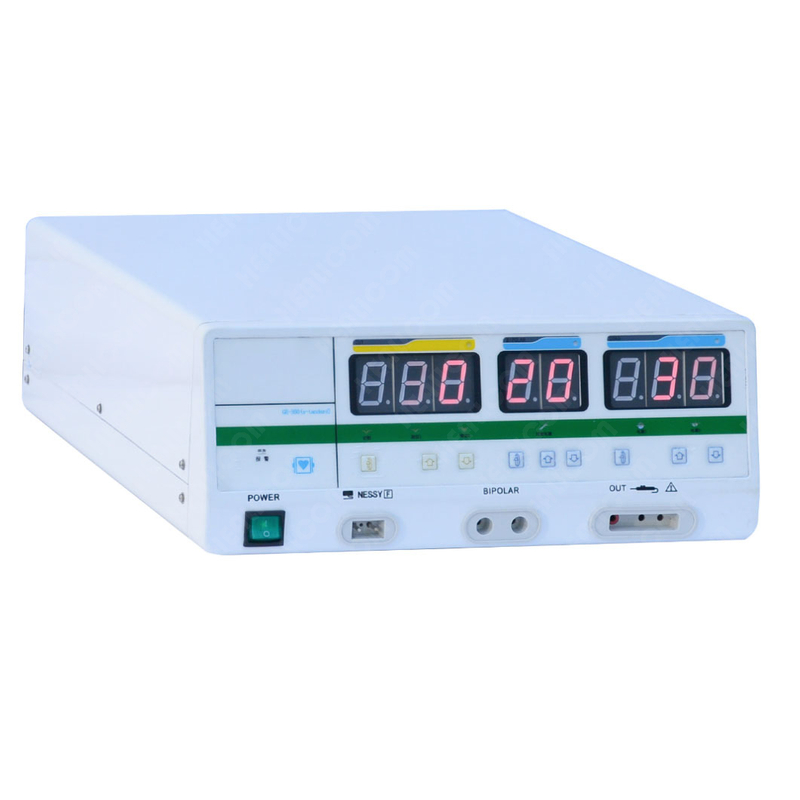

HE-350
Healicom
Product Description
Functional features
■High definition digital display;
■The machine has automatic detection function, There is error code hint;
■It has a memory function, restart the emergence of last used power setting machine.
■It has a neutral electrode contact quality monitoring circuit, detection and patient contact plate area can be effective contact area, evaluation of plates and skin system testing, once found the contact area is reduced to a dangerous level, automatically cut off the output system, and alarm.
■ It can detect monopolar and bipolar neutral plates.
■It has automatic compensation function, stable output power, make the loss to a minimum.
■It can be used under water cutting, including lipid rich tissue cutting area.
■It can use with the endoscope and hysteroscopy
Technical parameters | |
The output power | 400W |
Six output modes | ①Cutting ( 400W ) ②Blend cutl ( 200W) ③Blend cut2 ( 150W) ④Soft Coag (120W) ⑤Strong Coag (100W) ⑥Bipolar Coag (70W) |
Atmospheric pressure range | 86. 0~ 106. 0kpa |
Power supply | 220V±22V, 50Hz±1 |
Working frequency | 360~ 460kHz |
The rated power of the equipment | 880VA±10% |
Type of device | CF |
The machine power consumption | ≤1000VA |
