Product Description

HMV-400 Medical Video Endoscopy System Electric Video Gastroscope And Colonoscope

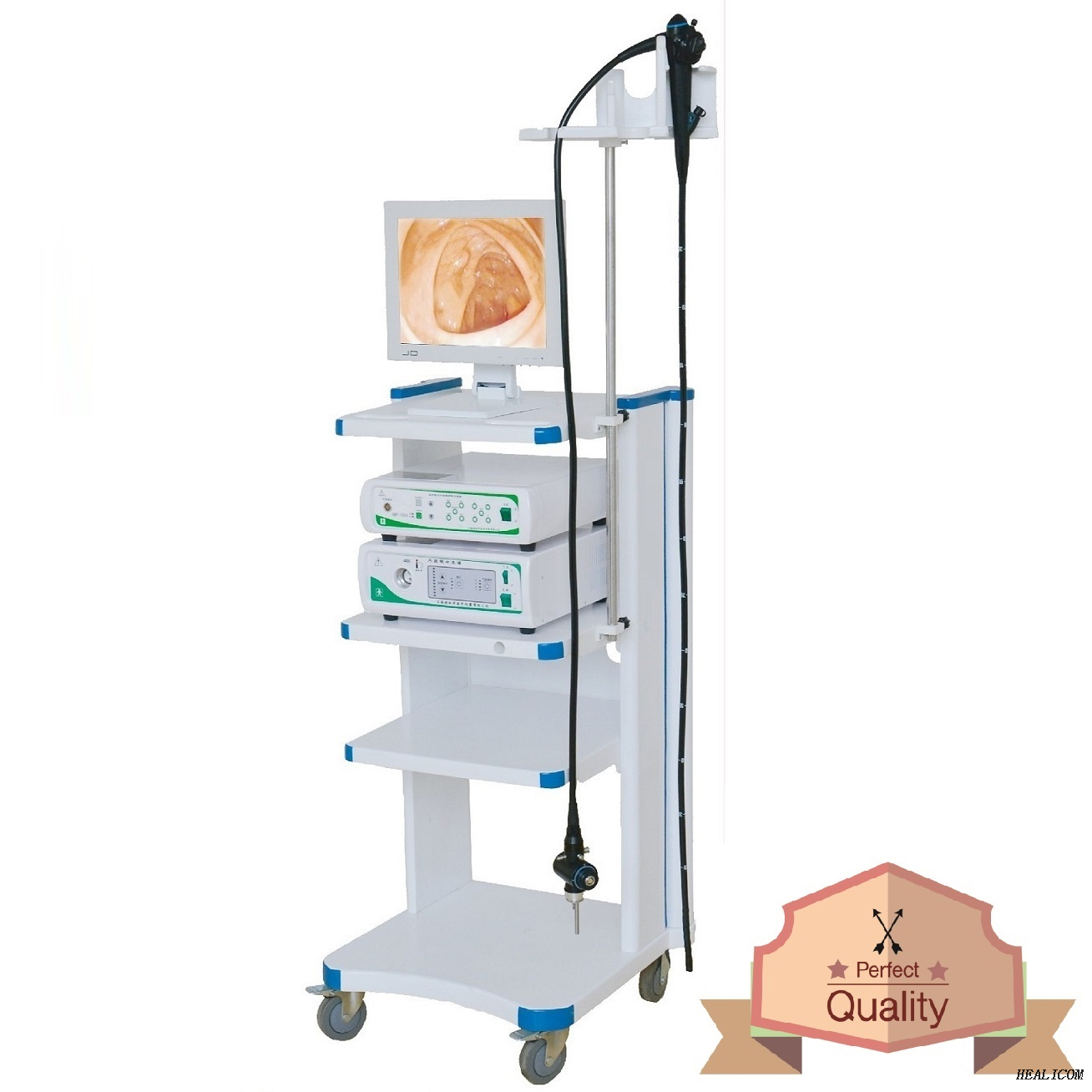

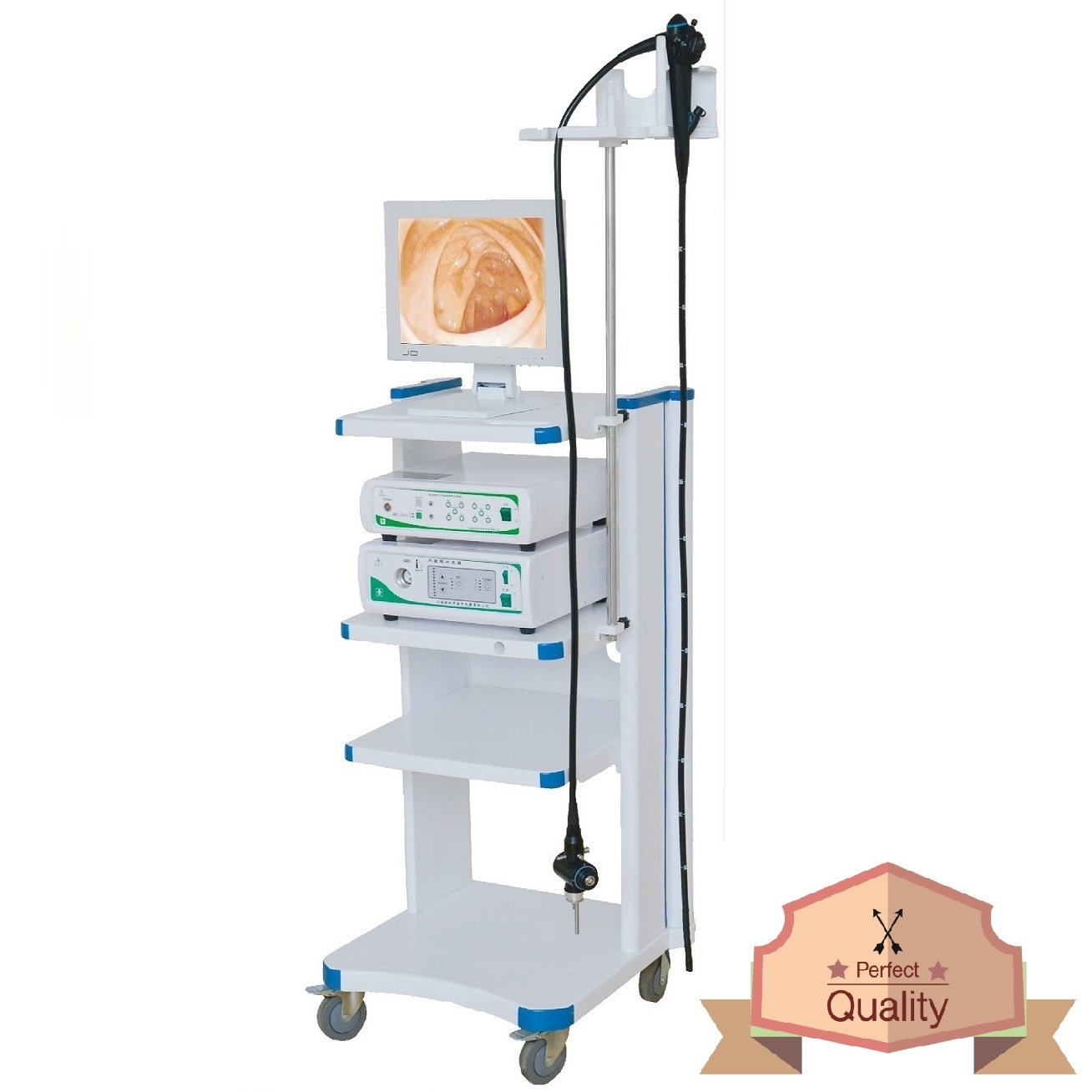

HMV-400 video colonoscope

Specification:

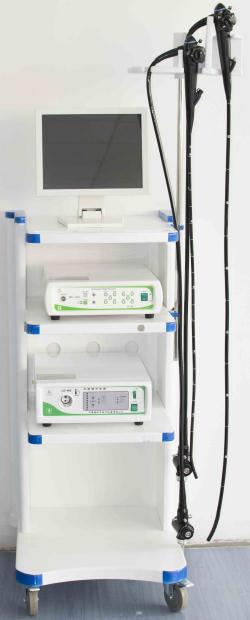

   11

Item

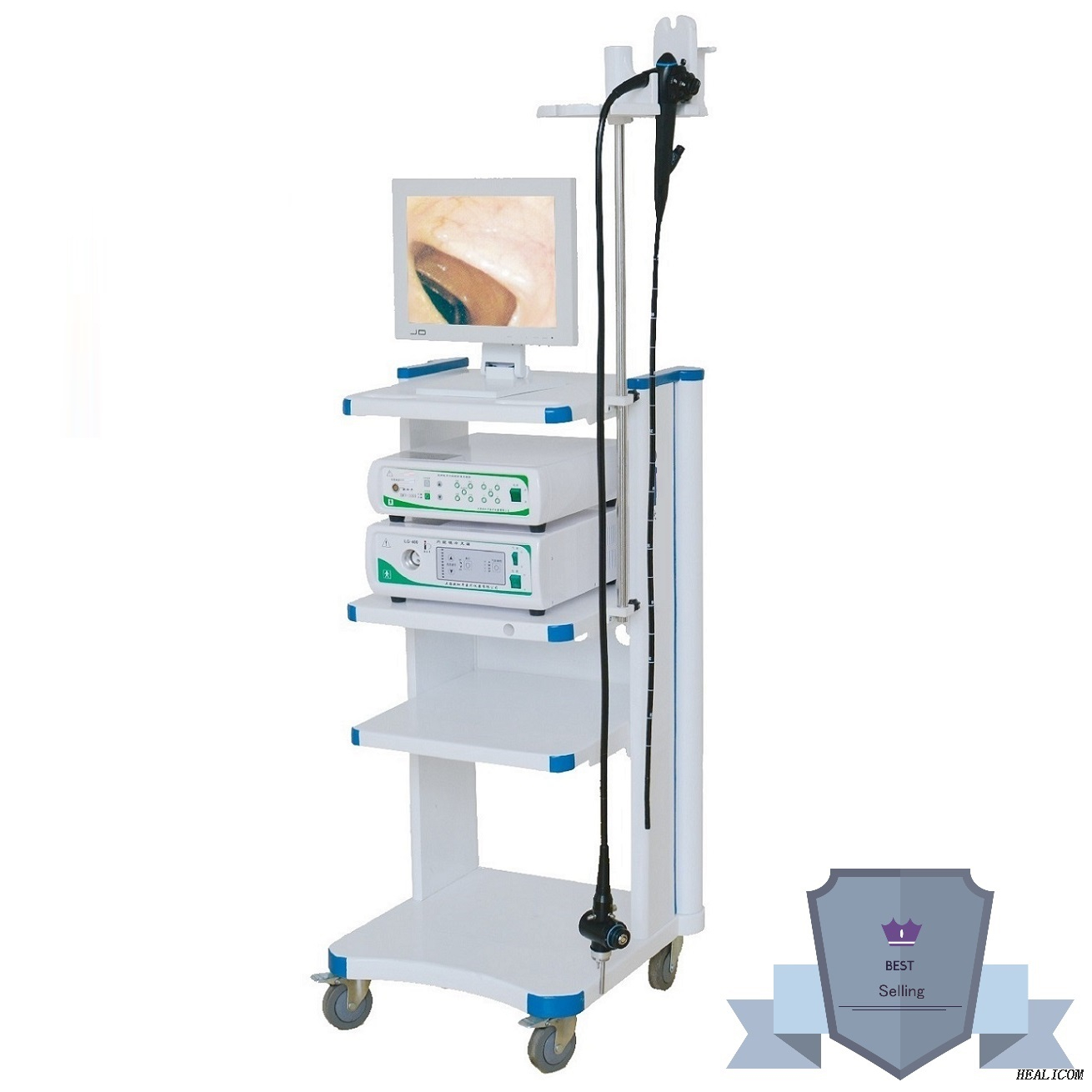

Video Gastroscope(HMV-200)

Video Colonoscope(HMV-400)

Diameter of distal- end

Φ9.8mm / 9.2mm

Φ13.0mm

Diameter of insert tube

Φ9.8mm / 9.2mm

Φ13.0mm

Clamp aperture

Φ2.8mm

Φ3.2mm / 3.7mm

Working length

1035mm

1330mm

Total length

1335mm

1630mm

View of field

120 º

120 º

Depth of view

3-100mm

3-100mm

Resolution

Sony 440,000 Pixels high resolution Photosensitive CCD

Tip deflection

up 210° down 90° L/R 100°

up 180° down 180°L/R 160°

Remark

We can provide OEM service, technical details can be customized.


Product details:

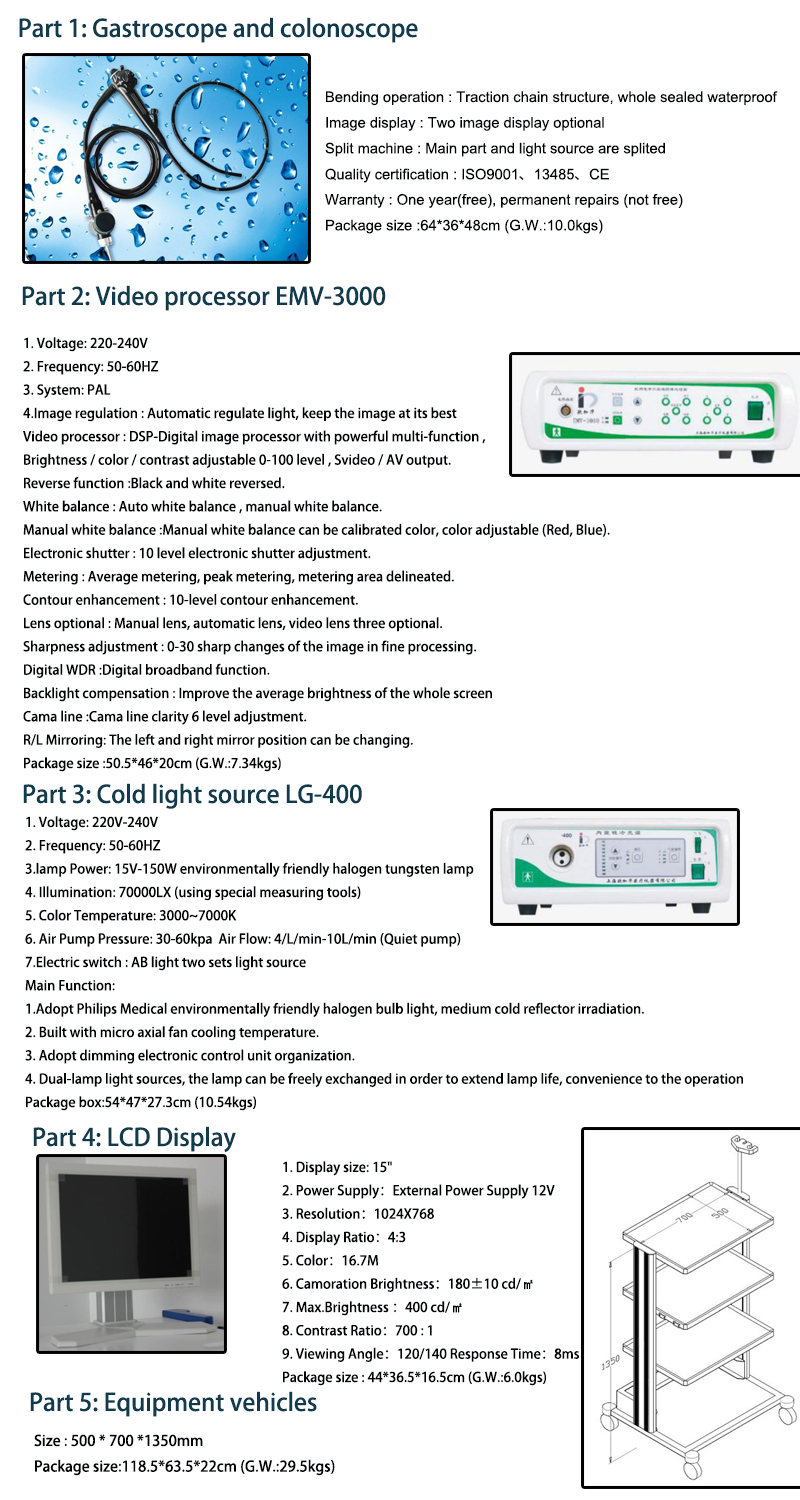

未标题-1

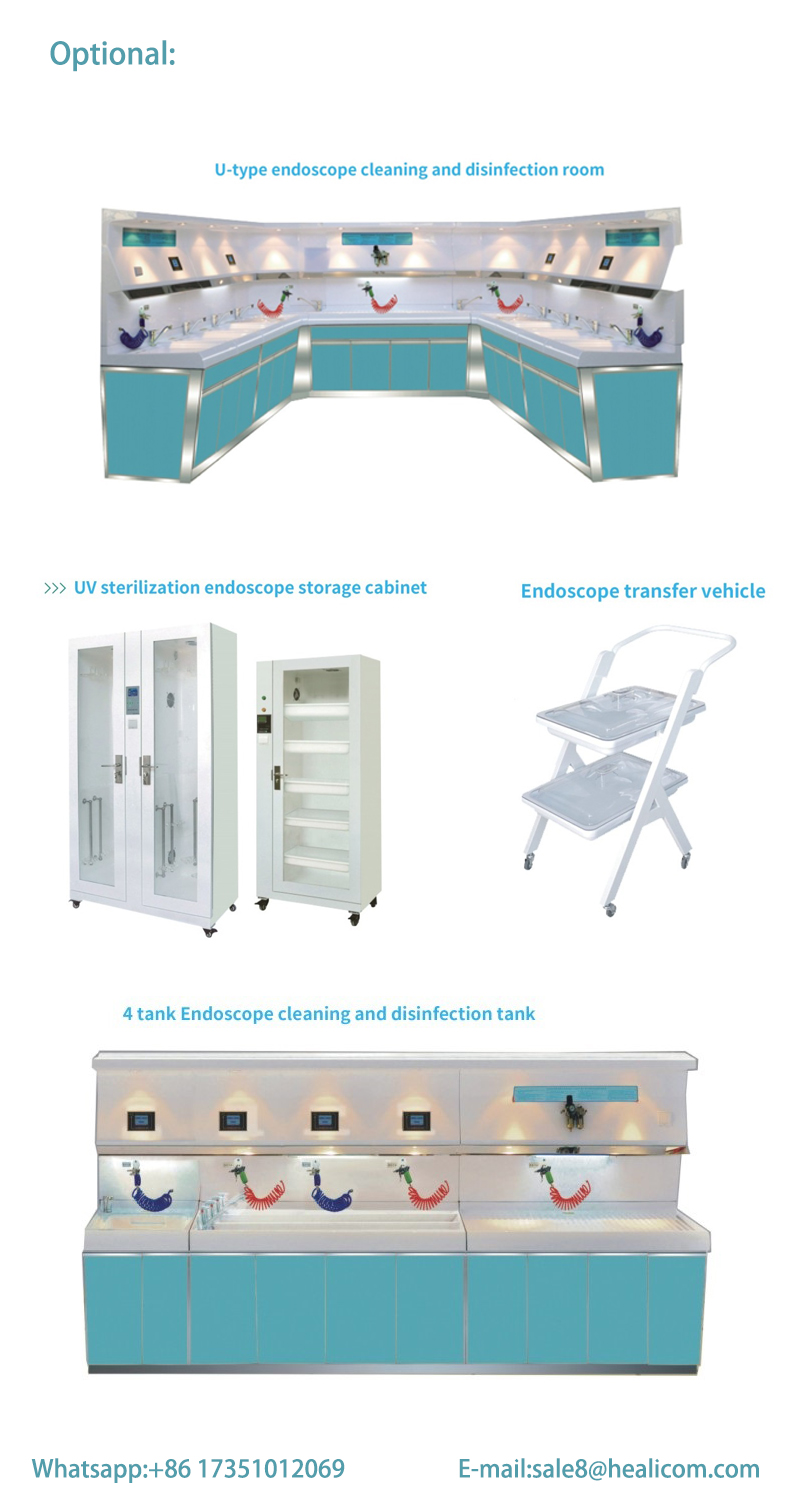

未标题-2
