HVET-9000A
Healicom
Product Description

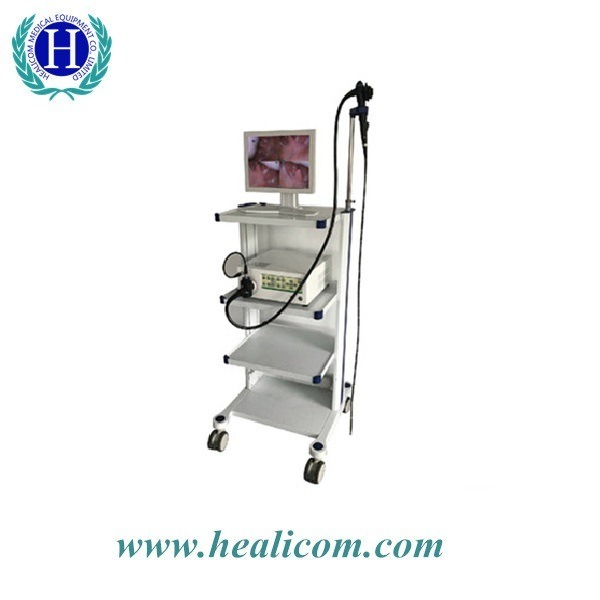

HVET-9000A Medical Equipment Electric Vet / Veterinary Video Endoscope For Animal
| 1-1 | Top diameter | ≤Φ8.0mm |
| 1-2 | Input tube | ≤Φ8.0mm |
| 1-3 | Biopsy channel | ≥Φ2.0mm |
| 1-4 | Working length | ≥1500mm |
| 1-5 | Total length | ≥1800mm |
| 1-6 | Field of view | ≥140º |
| 1-7 | Depth of field | ≥3-100mm |
| 1-8 | Image solution | ≥480000pixels (CCD) |
| 1-9 | Bending angles | ≥ up210º down≥90º left&right≥100º maximum 230 |
| 1-10 | Image frozen | 4 images frozen,stroe,playback. |
| 1-11 | warranty | One year |
| 2-1 | Contrast adjustment | 0-128 |
| 2-2 | Image adjustment | color adjustment level: 0-128,vessel enhancement |
| 2-3 | Metering mode | AVE/PEAK |
| 2-4 | Image enhance | 0-30 |
| 2-5 | White balance | Auto/manual white balance |
| 2-6 | Pump | pressure 30-80Mpk,air supply 4L/min-10L/min |
| 2-7 | illuminance | ≥200000Lx,LED light source 30000hours life. |
| 3-1 | Vessel capacity | Not less than 1 l |
| 3-2 | Maximum suction volume | 20 L / Min |
| product name | Quantity | Remark |
| HV--9000A video Endoscope | ||
| HV-9000A video Endoscope | 1 | |
| Biopsy forceps | 6 | Different type |
| Cleaning brush | 1 | |
| Mouth pad | 3 | |
| Leak detector | 1 | |
| Leak cover | 1 | |
| Clean lid | 1 | |
| Attract the valve body baffle cap | 2 | |
| Water bottle interface seal ring | 6 | |
| Wash ear ball | 1 | |
| Water injection bottle assembly | 1 | |
| Endoscopic box | 1 | |
| Instructions | 1 | |
| HV-3000 Endoscope processor &light source (With air pump and SD record card and Rigid endoscope interface) | ||
| HV-3000 Endoscope processor &light source(LED lamp) | 1 | |
| power cable | 1 | |
| Instructions | 1 | |
| Suction device | 1 | |
| Suction device | 1 | |
| power cable | 1 | |
| Instructions | 1 | |
| Trolly | 1 | |
| 19" LCD monitor | 1 | |

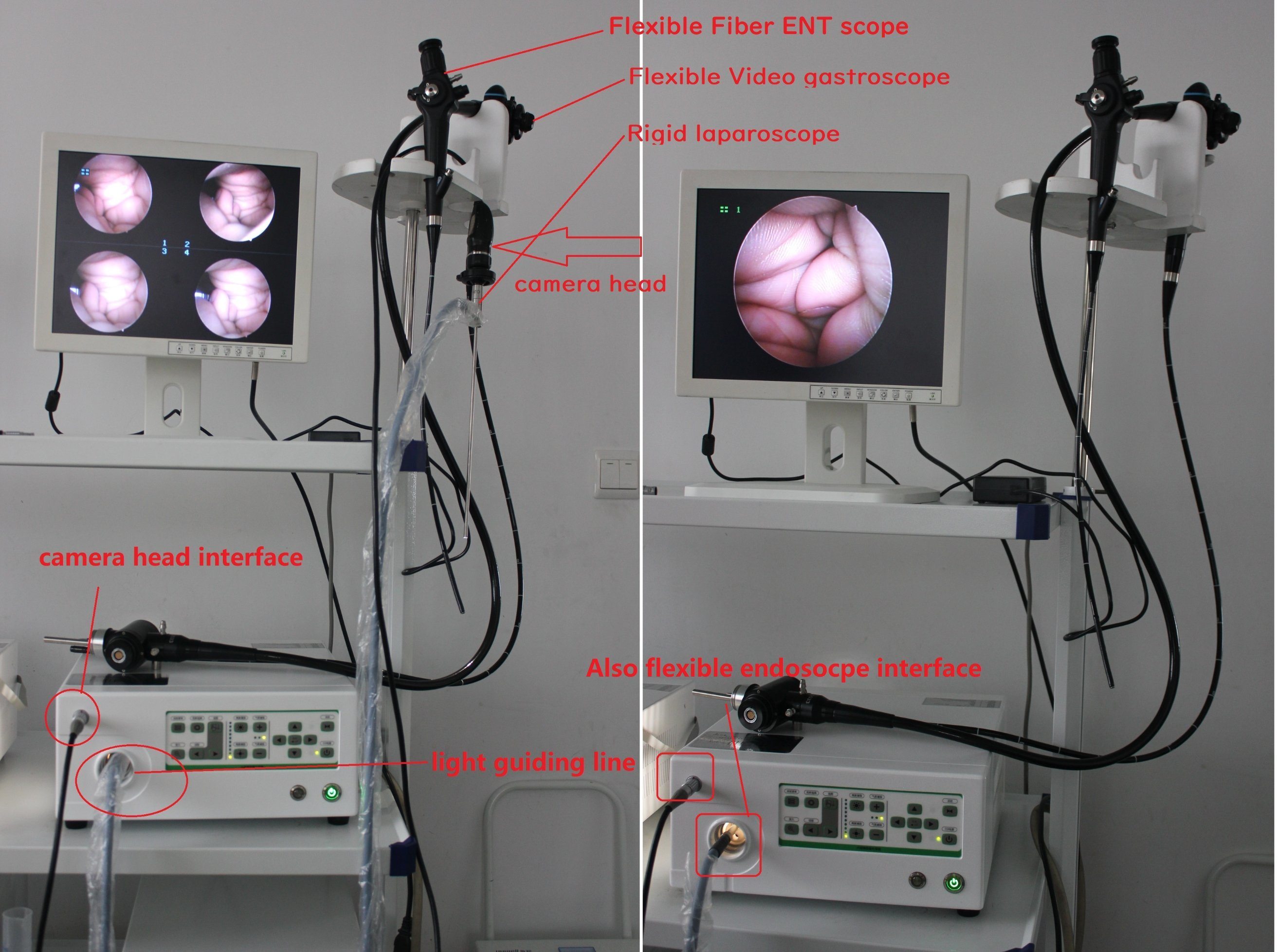

Accessories display

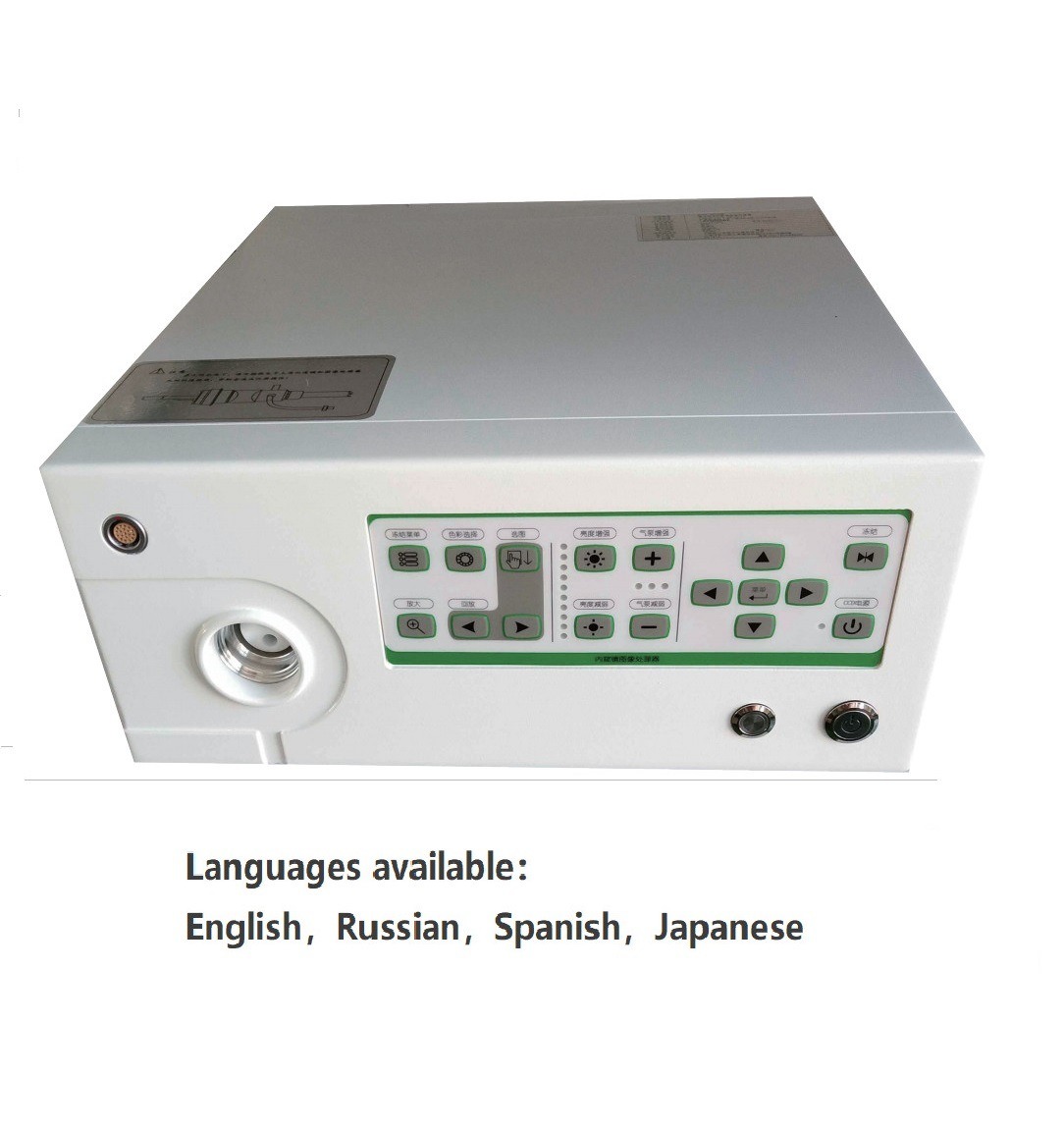

Control Board

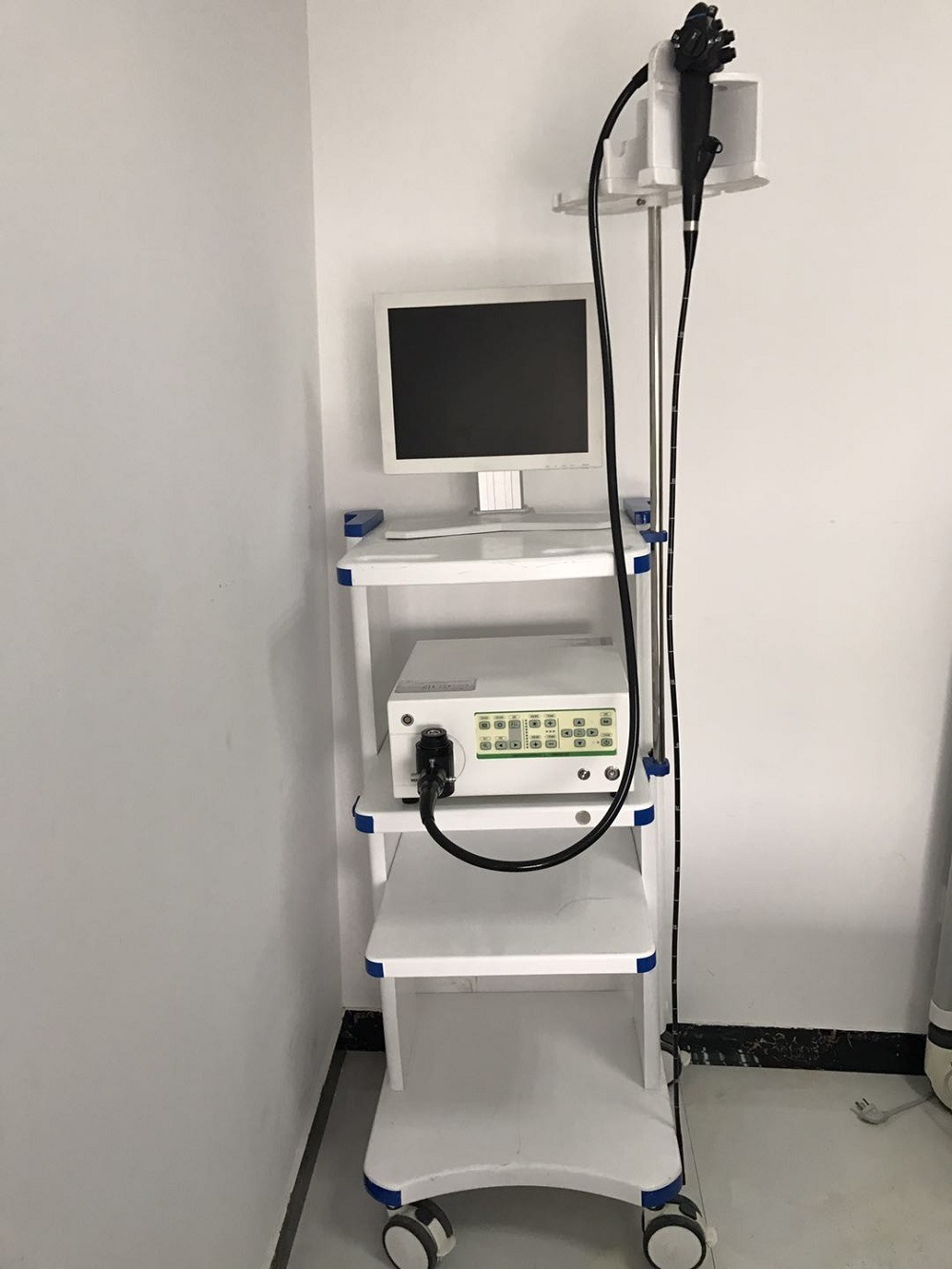

Product Real Shot
