HMV-200 Medical Video Gastroscope and Colonoscope Endoscope Camera System
You are here: Home » Products » Medical Optical » Endoscopy » HMV-200 Medical Video Gastroscope and Colonoscope Endoscope Camera System

Category List

HMV-200 Medical Video Gastroscope and Colonoscope Endoscope Camera System

Availability:
Quantity:

PDF Export

  • HMV-200

  • Healicom

Product Description

HMV-200 Medical Video Gastroscope and Colonoscope Endoscope Camera System

Features

1. Use Sony high-resolution CCD with 440,000 pixels color image

2. With 30,000 hours long life LED lam and high color temperature light cold source

3. Germany Elaborated designed operation system

4. Excellent image freezing and playback function

5. With flly Waterproof design


Technical Specifications
Item
video Colonoscope
Video Gastroscope
Diameter of distal- end
Φ13.0mm
Φ9.8mm
Diameter of insert tube
Φ12.8mm
Φ9.6mm
Clamp aperture
Φ 3.7mm
Φ2.8mm
Working length
1330mm
1030 mm
Total length
1630mm
1330 mm
View of field
140 º
Depth of view
3-100mm
Resolution
CMOS1,000,000 Pixels high resolution
Tip deflection
up 180° down 180°L/R 160°
up 210° down 90° L/R 100°

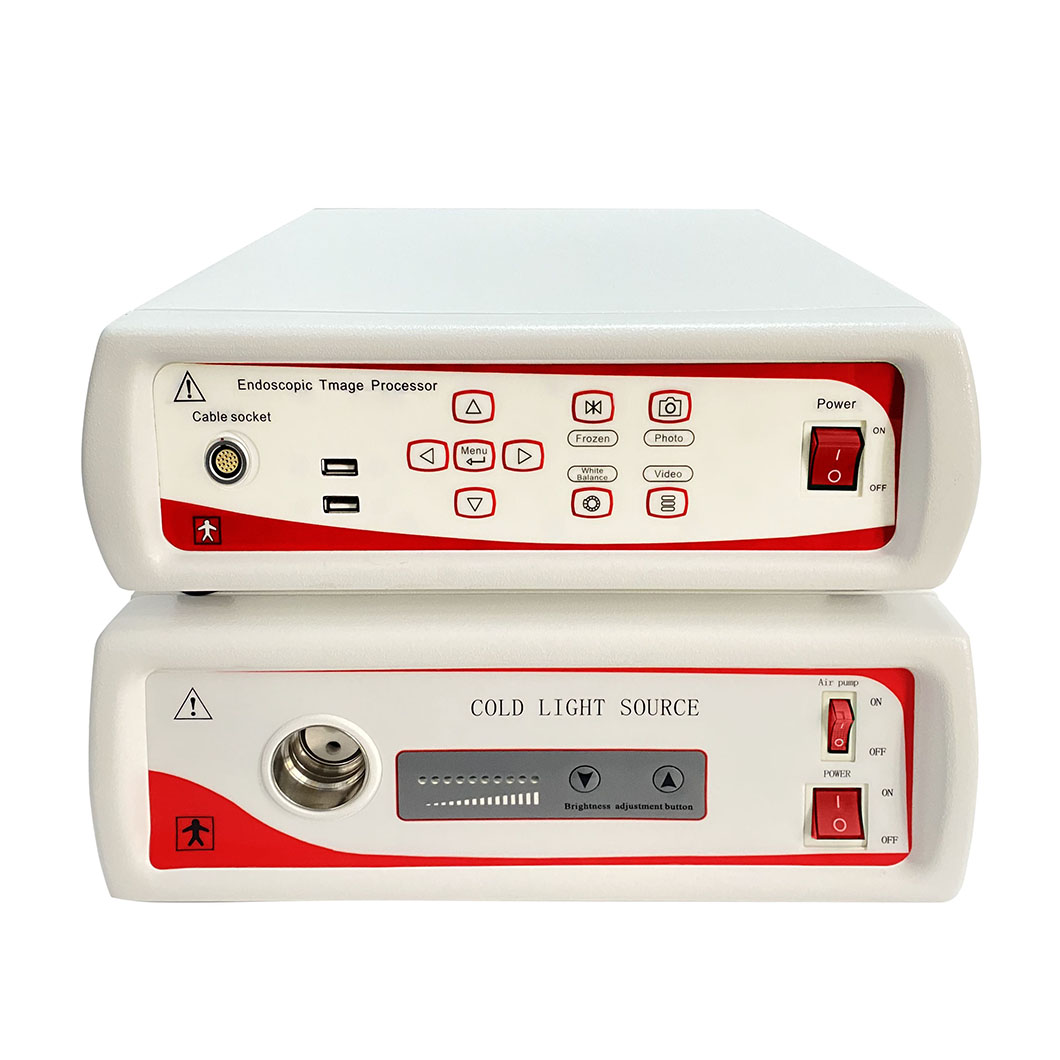

Video processor and light cold source machine

Lamp
LED light (80W white)
Power
220-240V; 50-60Hz
Color temperature
≥5300K
Video signal output
HDMI * 2, DVI
Sharpness adjustment
0-3 grade
Withe balance
Auto white balance/ Manually white balance
Gain function
1-3 grade
Air pump pressure
30-60Mpk
Image side
Octagon/round
Air flow
4-10 L/min
Main Function
1. Brightness , Contrast, Tone, Saturation 0-100 grade can be adjustment.
2. Large screen frozen, small screen display continue.
3. Digital widescreen and picture in picture function.
4. With USB interface support picture and video record function
5. With USB keyboard can Patient information entry function
