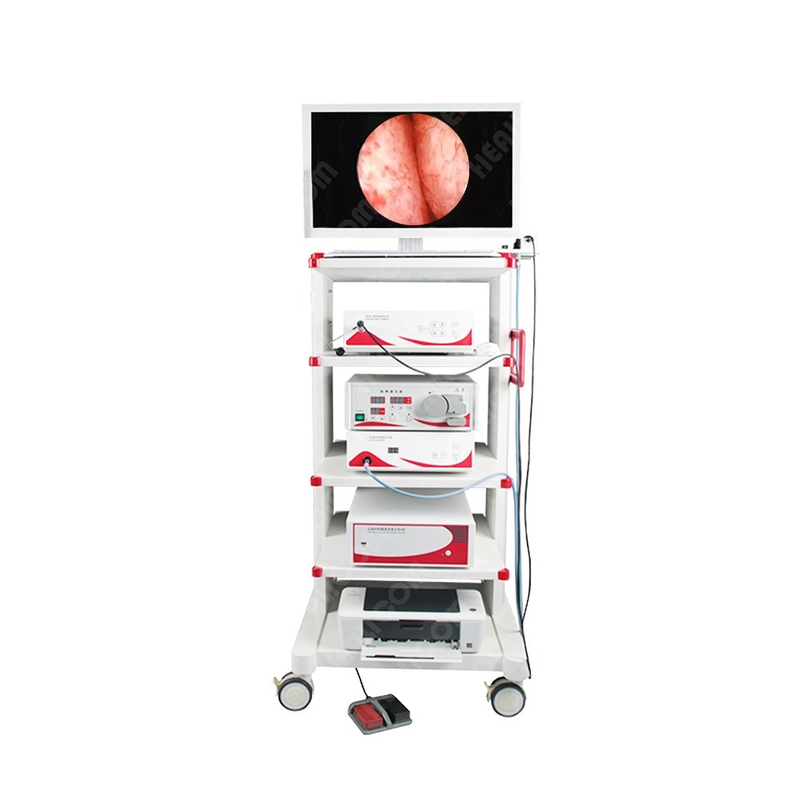

HCE-3000 Medical Full HD Video Surgical Endoscope Cystoscope Set

HCE-3000 Medical Full HD Video Surgical Endoscope Cystoscope Set

Application:

• Cystoscope: Benign Prostatic Hyperplasia

• Cystolith

• Diverticulum

• Percutaneous nephroscope set: kidney stone, renal cyst, kidney neoplasms

• Ureteroscope: ureteral calculi

• Bladder tumor

Camera System

With multi-function camera head: freeze & white balance. This hd endoscopy camera system can be used for all rigid endoscope surgery, such as laparoscopy, hysteroscopy, ENT, arthroscopy, cystoscopy and so on.

Product Name	full hd endoscopy camera system
Camera	3CCD
Camera head	hd camera head of different types
Coupler	16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 18-32mm
Grade	medical degree
Output	HDMI*4, SDI*1, BNC*1, VGA*1

Light source

1. Imported key component: adopted imported medical LED, strong stability, good anti-seismic property;

2. Long service life: working time more than 20,000~40,000 hours, minimizing the need to replace the bulb, cost saving;

5. Good compatibility: international standard light guide cable,to connect with most of brands, like Storz, Olympus, Wolf etc.

Light source	Led light
Effective optical power	≥100mW
Brightness (Lux)	≥490000lx
Color temperature	≥6500K
Surface temperatures	≤60ºC
Flat thermal of light source	≤80ºC
Atmospheric power	860hPa~1060hPa
Host fuse	T2AL 250V AC
Light power	≥100mW
Light out	(Diameter)(10±0.10)mm

Irrigation pump

Used for hysteroscope's swell and force, urology surgery's liquid irrigation, also be able to use in arthroscopy, laparoscopy surgery

Noise	≤55dB(A)
Power	150VA
Range of pressure	15~400mmHg (2~53.3kPa)
Supply voltage	220V 50HZ
Range of flw	0.1~1.0L/min



Full HD video recorder

1. Easy to carry and connect;

2. Imported aluminum and independent protective device of power ;

3. Can connect with any endoscope camera system;

4. Apply to genecology, ENT, obstetrics, urology, orthopedocs, chest surgery, general surgery, etc.

Recording format	MP4
Recording quality	MAX 18Mbs@1080P 30fps
Recording interface	USB disk and Removable hard disk
External U flash disk	MAX 128G
External mobile HDD	MAX 2T
Input signal	BNC, HDMI
Output signal	HDMI
Resolution	Input / output / Record 720×480(60p),720×576(50p) 1280×720(50p),1280×720(50p) 1920×1080(50i),1920×1080(60i) 1920×1080(24p),1920×1080(25p) 1920×1080(30p),1920×1080(50p) 1920×1080(60p)
