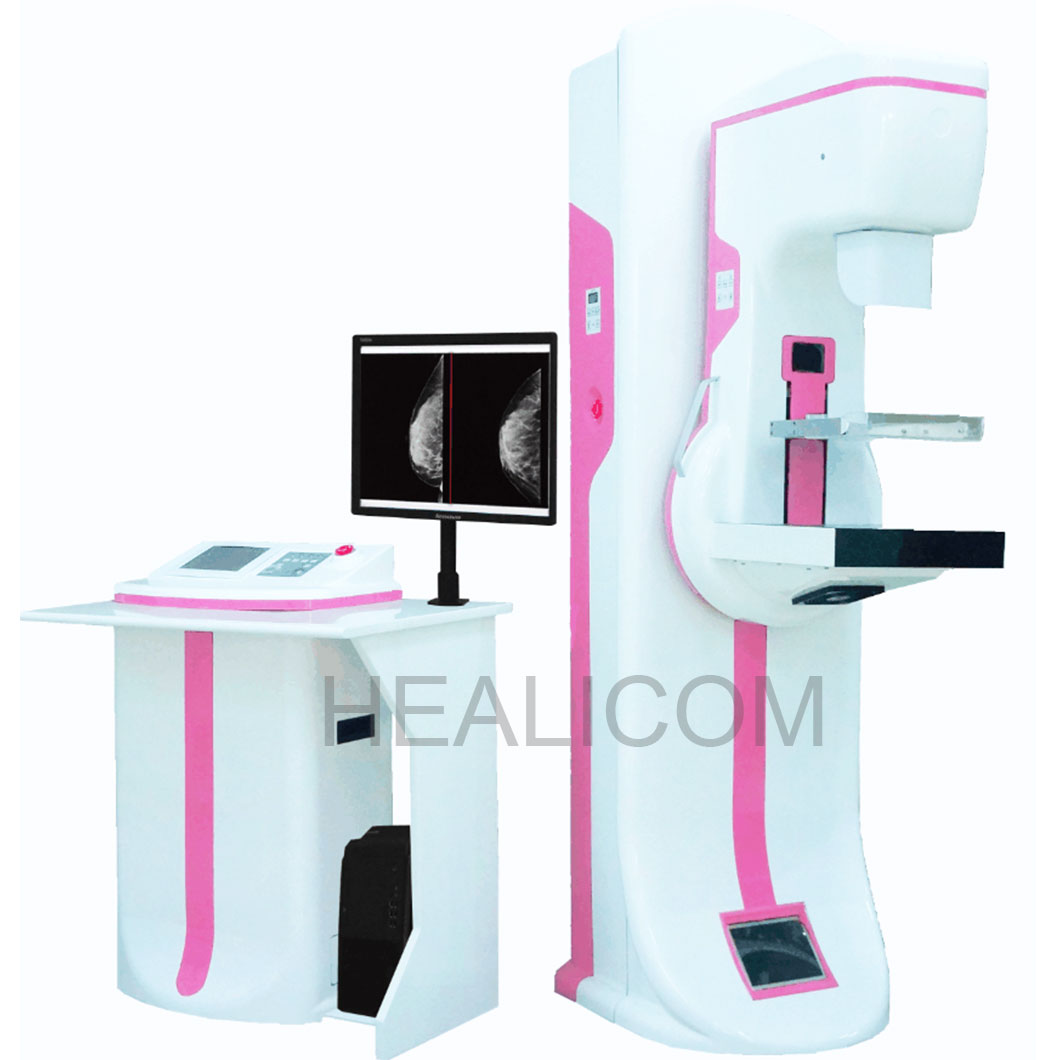

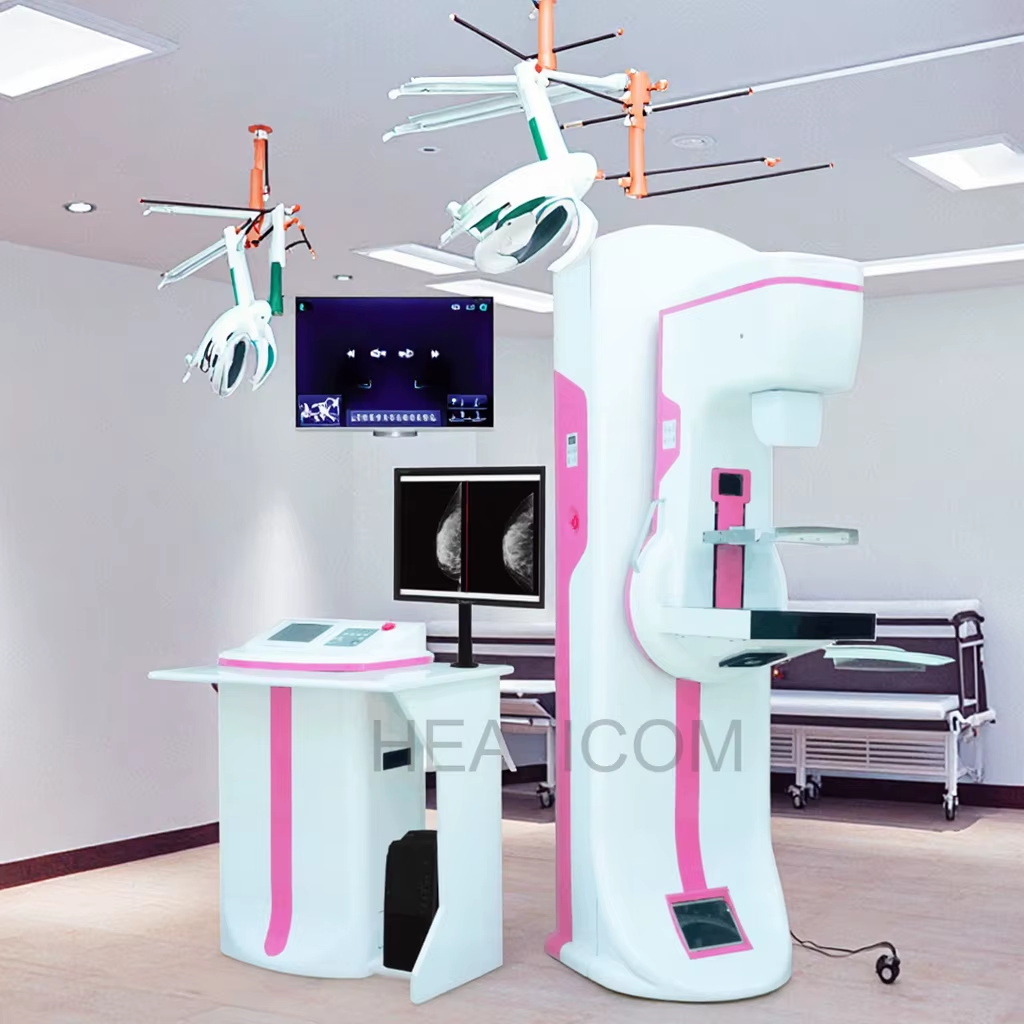

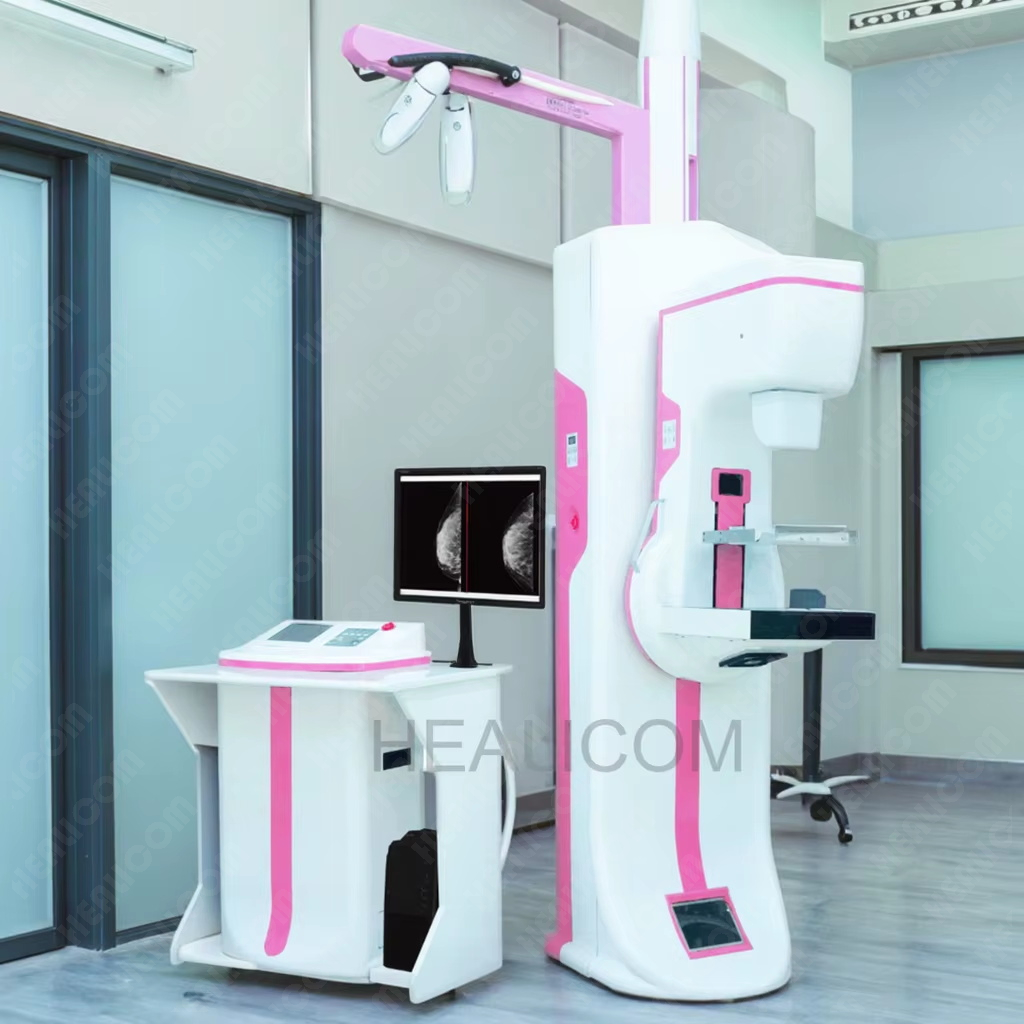

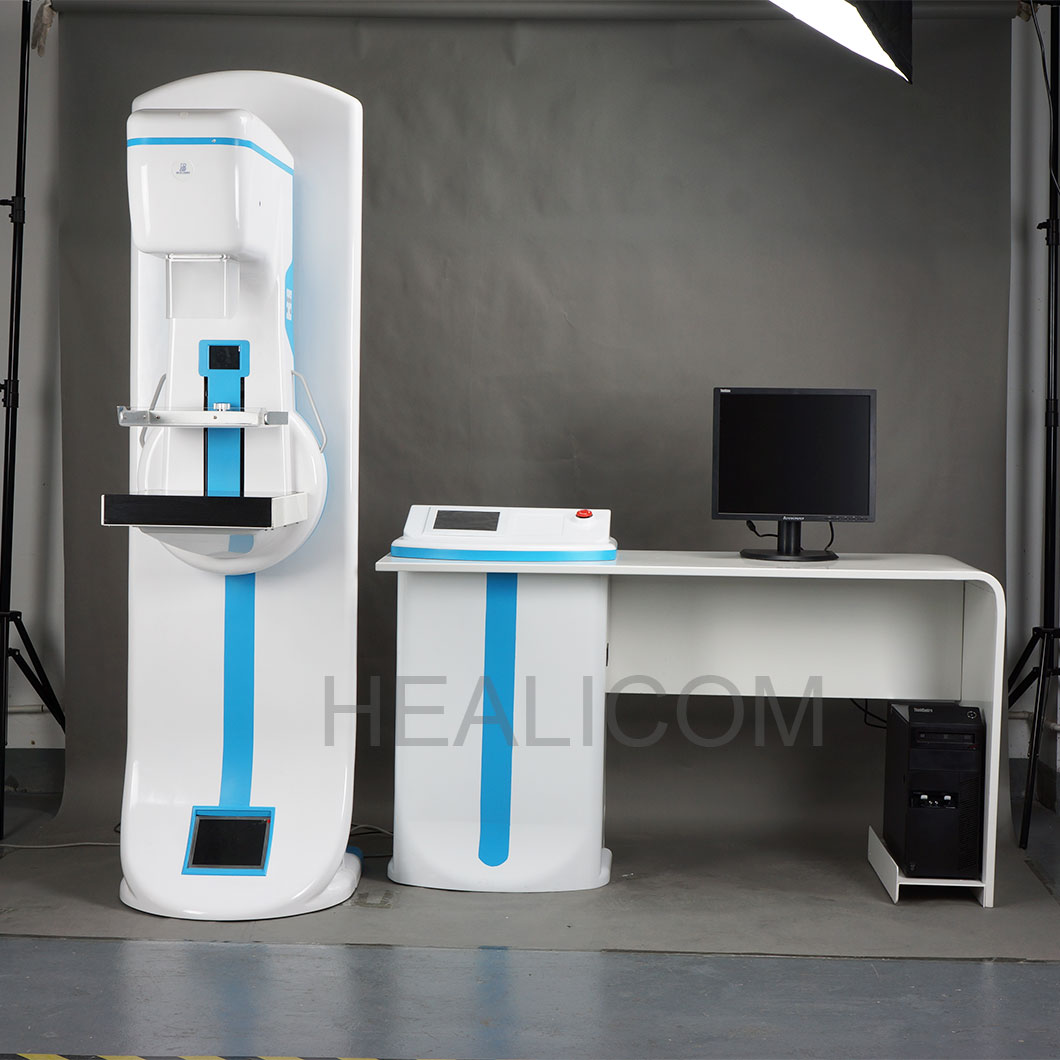

HDM-600D
Healicom
Product Description
Features
· High Quality Tube and Flat Plate：Equipped with an IAE tube, ensuring stable and reliable X-ray generation. Paired with a domestic 24*30 flat plate, it offers a large imaging area for comprehensive and detailed image capture.
· Advanced Digital Mammography System：The Digital Mammography System features an Italy sourced tube, known for its precision and high - performance in breast imaging. The ABS shell not only provides a durable and lightweight enclosure but also contributes to the overall sleek and modern design of the device.
· User Friendly Operation Desk：Comes with an operation desk designed for ease of use. Medical staff can comfortably operate the system, adjusting parameters and initiating procedures with minimal effort, enhancing the overall workflow efficiency.

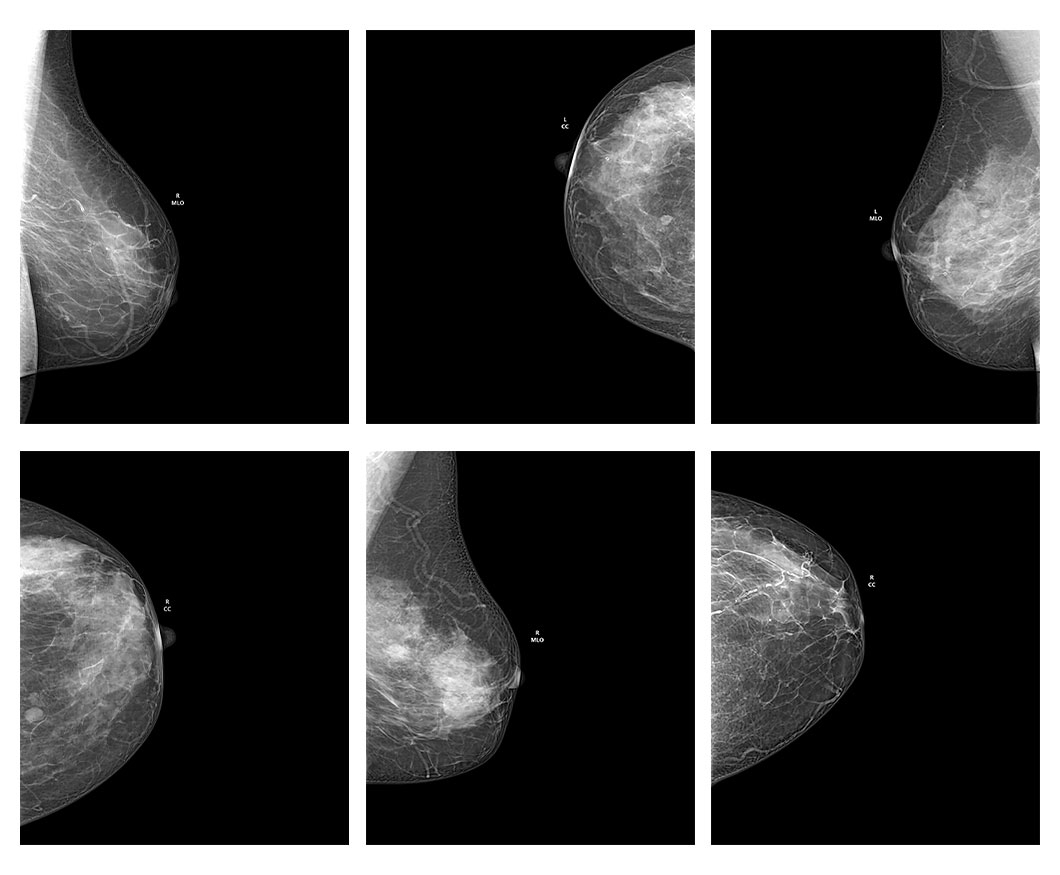

· Superior Iray Plate：The Iray plate is a key component, offering excellent image quality. It has high sensitivity and resolution, ensuring that even the tiniest details in mammography images are clearly visible, facilitating accurate diagnosis.
· Efficient Image Acquisition and Workstation Hardware：The image acquisition system is optimized for quick and accurate capture of mammography images. Complemented by high - performance workstation hardware, it enables seamless processing, storage, and retrieval of images. This allows for easy review and analysis by medical professionals, further enhancing the diagnostic capabilities of the Digital Mammography System.
| No. | Item | Specification |
| 1 | X-ray Generator | |
| 1.1 | Definition | Complete Solid-state High-frequency High-voltage Generator. |
| 1.2 | Generator Type | High Frequency Inverter 80kHz |
| 1.3 | Input Power | Single Phase 220VAC, 50/60Hz |
1.4 | Radiographic Ratings | Large Focal Point 20-35kV/10-510mAs |
| Small Focal Point 20-35kV/10-100mAs | ||
| 1.5 | Power Rating | 6.2kW |
| 2 | X-ray Tube | |
| 2.1 | Model | IAE C339V |
| 2.2 | Focal Spot Size | Dual Focus 0.1/ 0.3mm |
| 2.3 | Target Material | Molybdenum (Mo) |
| 2.4 | Port Material | Beryllium (Be) |
| 2.5 | High-speed Anode Drive | 3000 /10000 rpm |
| 2.6 | Target Angle | 10°/15° |
| 2.7 | Anode Heat Storage | 225KJ (300KHU) |
| 2.8 | Anode Cooling | Air Cooling |
| 2.9 | Filtration | Mo(0.03mm) |
| 3 | Radiographic Stand | |
| 3.1 | U-arm Vertical Movement | 560mm |
| 3.2 | U-arm Rotation | Automatic return function by one key |
| 3.3 | Rotations Deg | +90°~-90° |
| 3.4 | Compressor | The compressor is automatically released after the exposure is completed |
| 3.5 | Compressor Max. Pressure | 200N |
| 3.6 | Compressor Max. Travel | 156mm |
| No. | Item | Specification |
| 3.7 | SID | 650mm |
| 4 | Detector | |
| 4.1 | Detector Material | Amorphous Silicon |
| 4.2 | Effective Coverage Of Detector | 24cm×30cm |
| 4.3 | Pixel Matrix | 2816×3528 |
| 4.4 | Limit Of Spatial Resolution | 6.0Lp/mm |
| 4.5 | DQE Value | @4 Lp/mm:≥35% |
| 4.6 | Dynamic Range | 14bit Digital Output |
| 4.7 | Pixel Size | 85μm |
| 4.8 | Output | Ethernet |
| 4.9 | Working Condition | 10ºC-40ºC |
| 4.10 | Storage Environment | -10ºC-50ºC |
| 5 | Image Acquisition Workstation Hardware | |
| 5.1 | CPU | Intel Core Duo 3.0GHz |
| 5.2 | Hardware | ≥1T high Speed Hardware |
| 5.3 | Memory | ≥8G |
| 5.4 | Display Card | ≥2G |
| 5.5 | High Brightness High-contrast LCD | 1920*1080Pixel Resolution |
5.6 | Network interface Worklist | DICOM3.0 Transmission |
| 100/1000 Gigabit Ethernet | ||
| 5.7 | Software | Imaging Software Package DMOC V1.0 |
| 6 | Line Voltage | 220VAC@15A,Single Phase |
| 7 | Packing Weight | 469kg |
