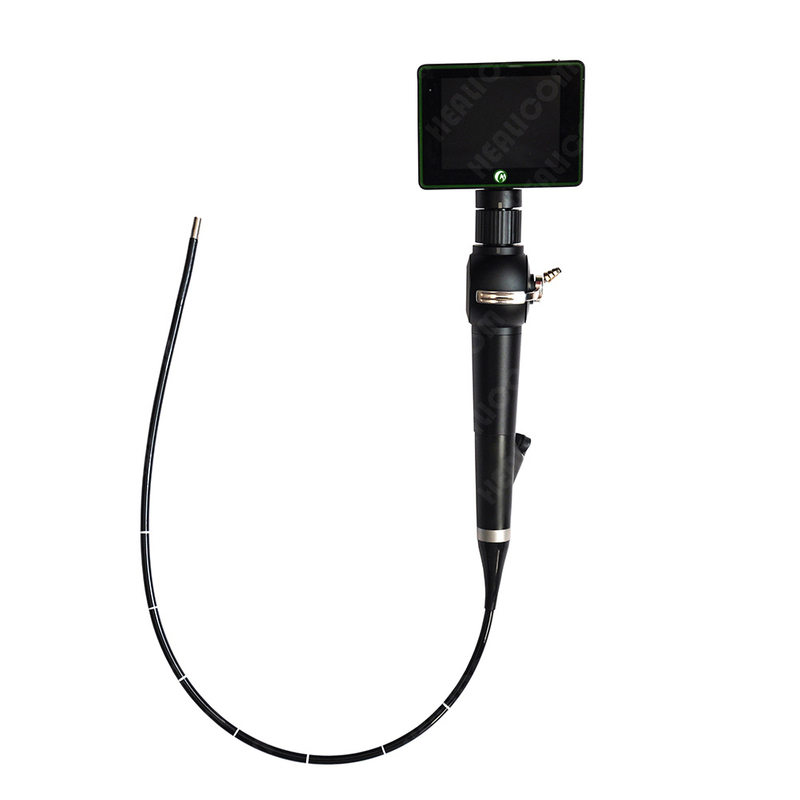

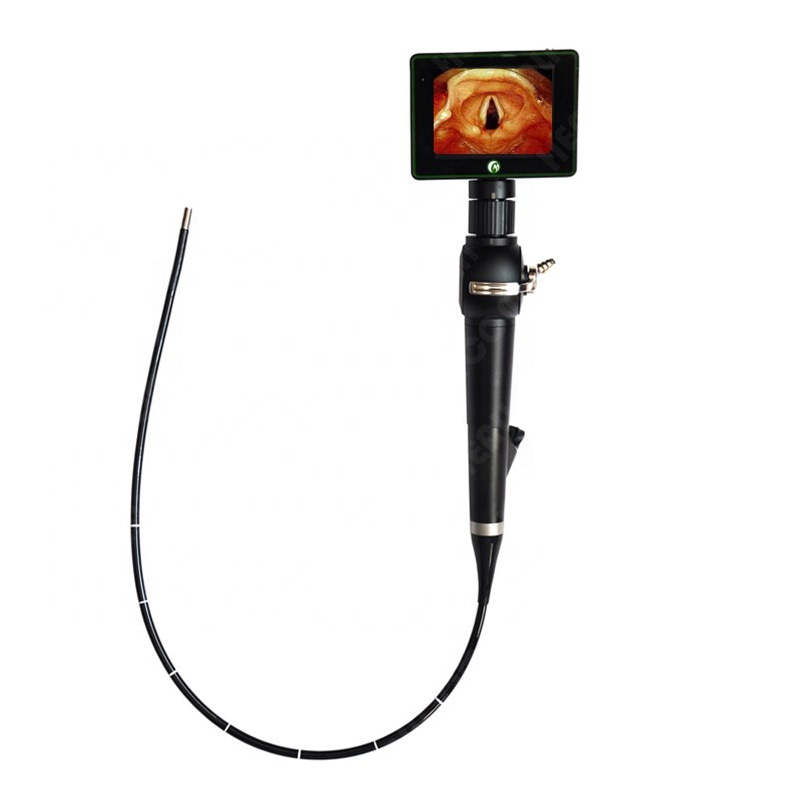

HKR-4
Healicom
Product Description

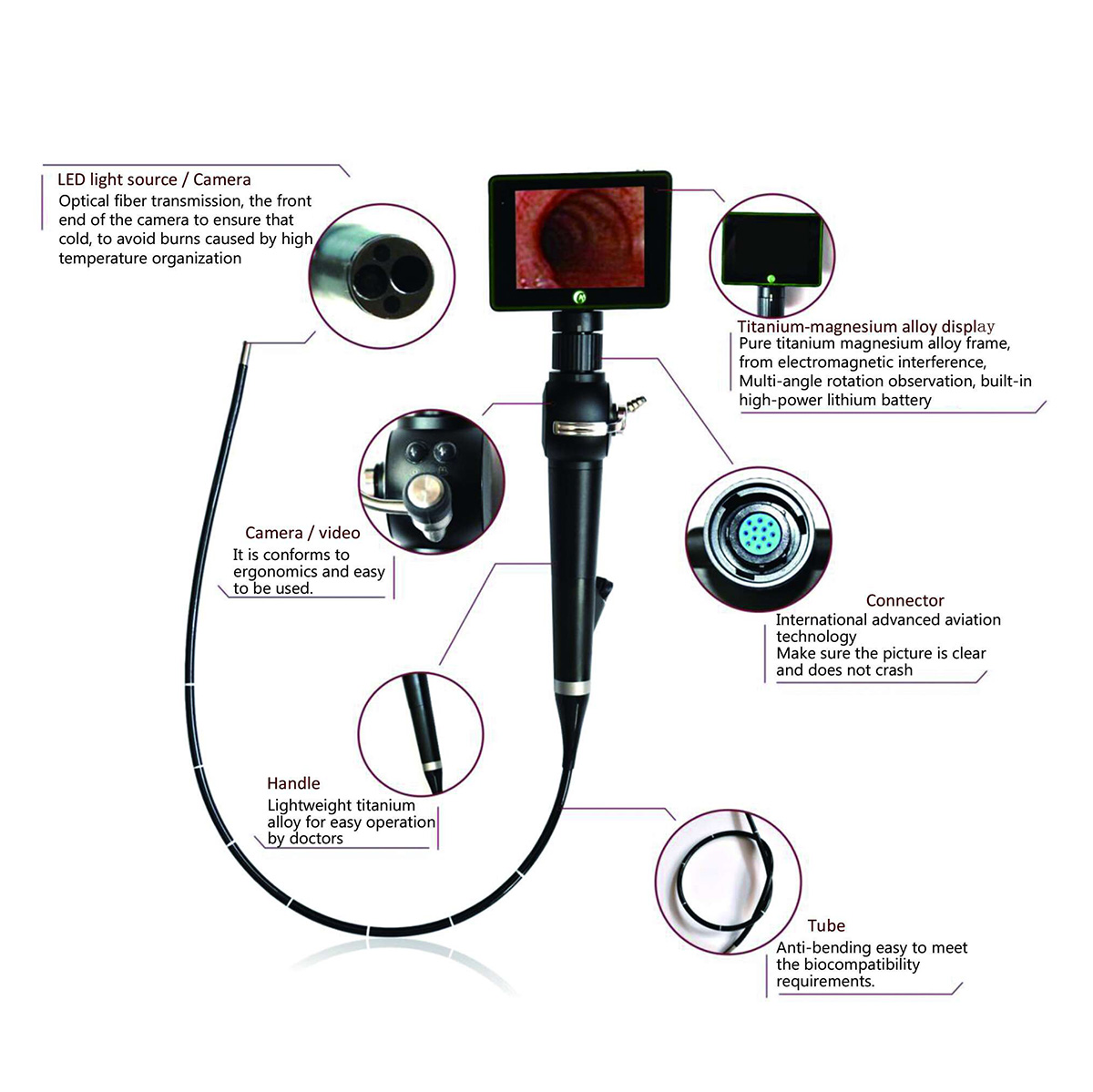

Features
· Difficult tracheal intubation, through nasal tracheal intubation, and bronchial occlusion.
· Heating anti-fogging through LED cold light source luminescence technology .
· Display multi-angle rotation observation,high resolution.
· The screen is equipped with a high-power lithium battery to ensure the extra long starting time.
· Delicate design, compact and convenient to carry.
· Provide various tools such as laryngoscope, tracheal catheter, trolley,big display, etc. according to the user's requirements for the establishment of anesthetic intubation workstations, or external large display for teaching demonstration or further clear observation.
| Technical Specifications | |
| Operation part | |
| Visual Field | 90° |
| Visual direction | 0° |
| observe depth | 3-100mm |
| Intubation Tube out diameter | 2.8mm,3.8mm 4.8mm, 5.2mm, 5.8mm |
| suction hole | 1.5mm,2.0mm,2.2mm,2.4mm,2.6mm |
| effective work length | 600mm |
| curved angle | upward 130° downward 150° |
| resolution ratio | 960*480 |
| pixel | 600,000 pixels |
| Monitor | |
| LCD size | 3.5" TFT LCD |
| Color | True colorful |
| Revolve angle | Up to down 0-130°,left to right 0-260° |
| Power | |
| lithium battery | 3.5V AA lithium battery (don't need to remove) |
