HCR-31
Healicom
Product Description

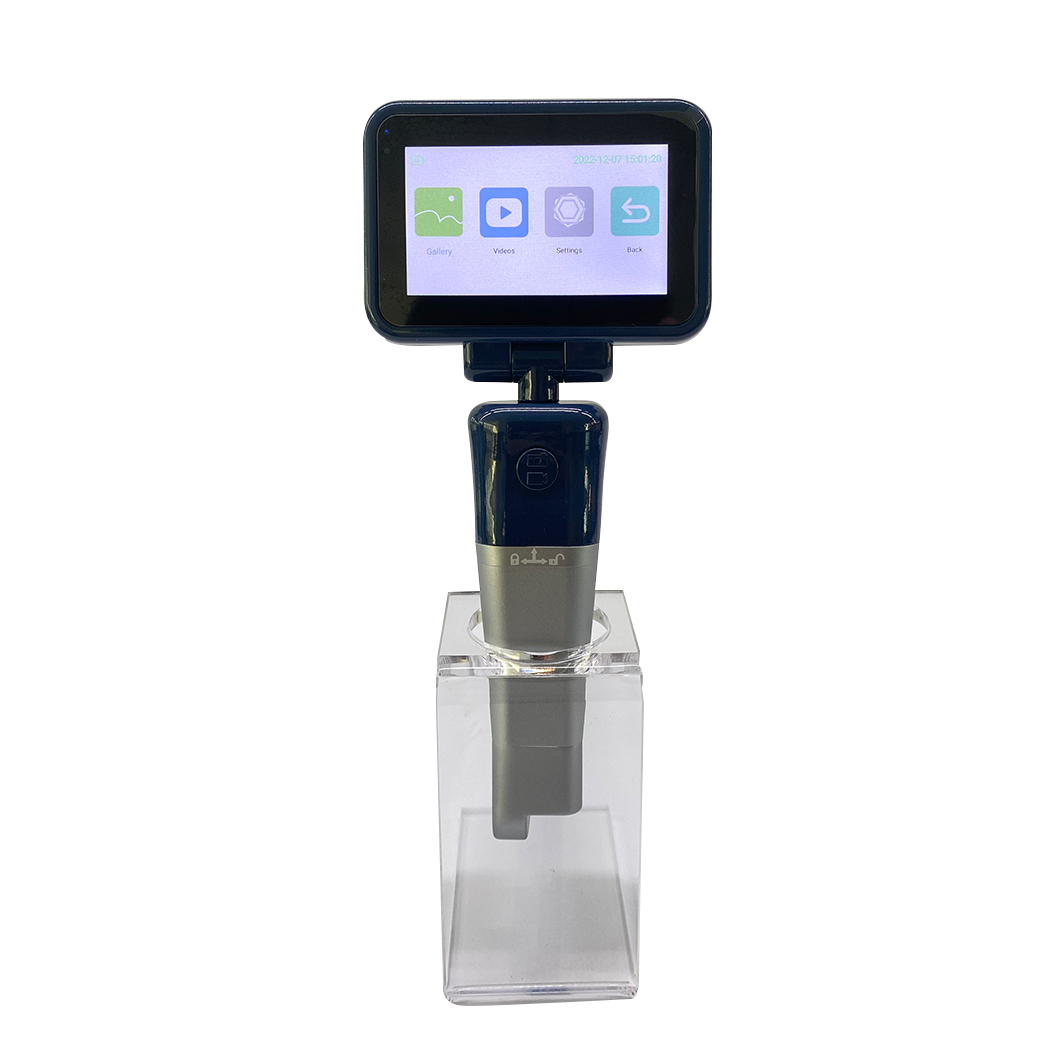

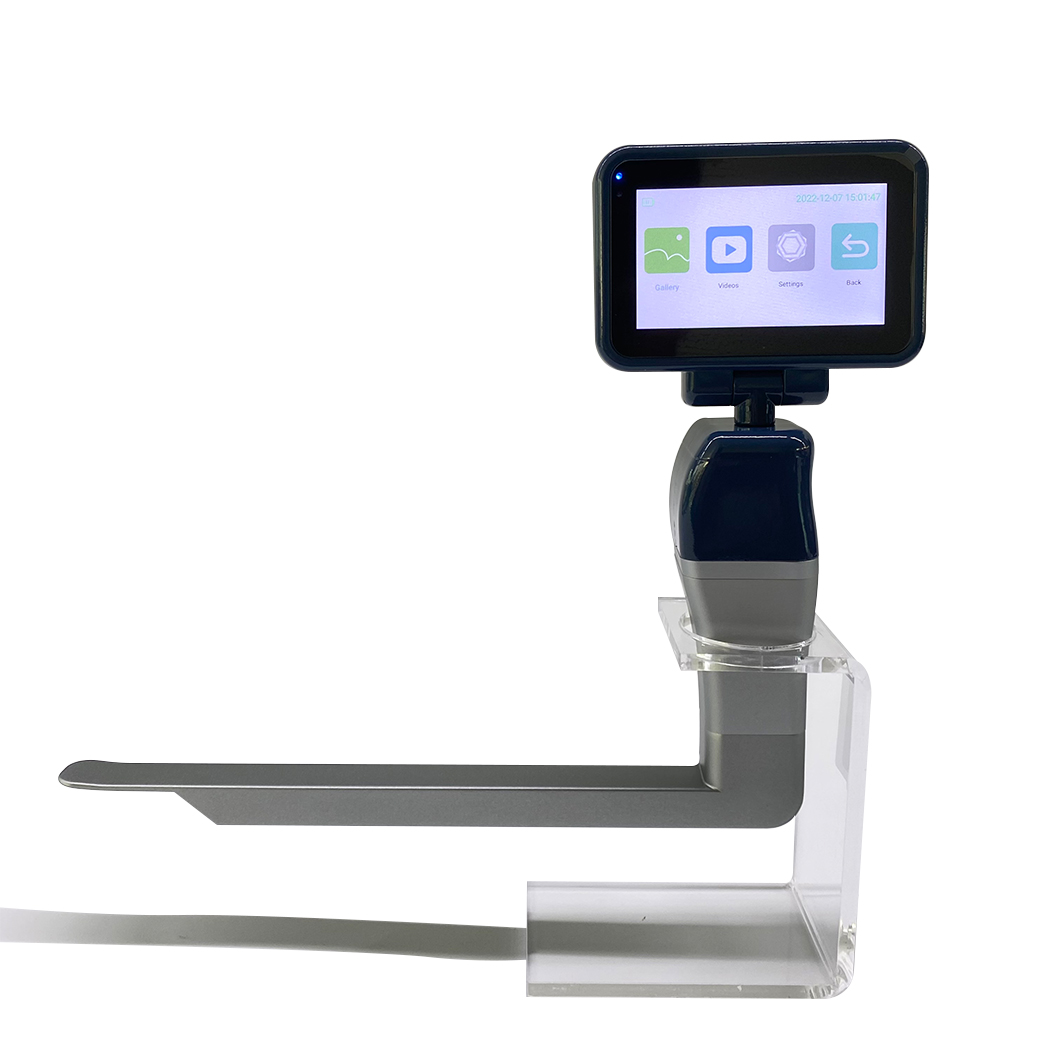

HCR-31 Portable Reusable Video Endoscope Laryngoscope
| Parts | Description | Technical Index | |
| 3 Inch Host | 4.5 Inch Host | ||
| Machine | Display | 3"screen | 4.5"Touchable screen |
| Resolution Ratio | 640*360 | 854*480 | |
| Viewing Angle | ≥60° | ≥60° | |
| Power | <2W | <2W | |
| Display rotation angle(Vertical,horizontal) | 0°~150°,0~270° | 0°~150°,0°~270° | |
| Weight | 156g | 232g | |
| Camera | llluminance | ≥1000 LUX | ≥1000 LUX |
| Resolution Ratio | 1280*720 px | 1280*720 px | |
| lmage /Videq Function | lmage /Video function | Yes | Yes |
| Output:Easy to storage and establish image/video/Review | USB output | Type C output | |
| Memory type | Micro SD card 16GB,automatic coverage of full record | ||
| Battery | Battery type | Rechargeable lithium battery | |
| Capacity | 2500mAh | 3500mAh | |
| Cycle life of battery | >1000 times | >1000 times | |
| Battery working time | >3.5 hrs | >5 hrs | |
| Charging Time | <3.5 hrs | <4 hrs | |
| Charging Port | Micro USB | Type C | |
| Power Adapter | Input | 100-240V,50/60Hz. | 100-240V,50/60Hz |
| Output | 5V2A | 5V2A | |
REUSABLE TYPE, DISPOSABLE BLADE TYPE has the following functions and characteristics:
· Compact, portable and integrated LCD color screen;
· Different specifications, with cameras and light sources, can clearly reveal the glottis anatomical structure. Though the visual blades, a high-resolution camera will show the glottis and its physiological structure. The real-time image is transmitted to the LCD screen so that the doctor can clearly observe the entire process of endotracheal intubation or inspect oropharynx.
· There are eleven different types of REUSABLE TYPE blade selection (multiple use of metal blade) and six different types of DISPOSABLE BLADE TYPE (disposable polymer blade) blade selection (see 5.1).
· REUSABLE TYPE is removable (metal blade) and DISPOSABLE BLADE TYPE is non-removable (polymer blade)
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
