HIP-5
Healicom
Product Description

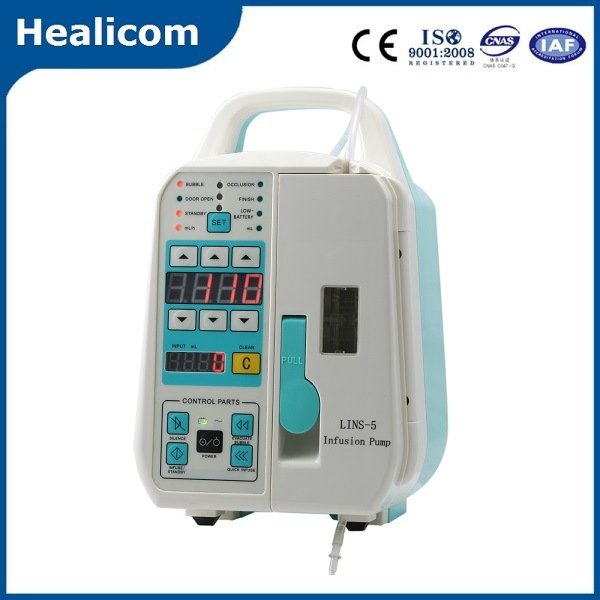

Mini Medical Equipment Automatic Portable Infusion Pump Clinic Ambulance Infusion Pump Machine
Introduction:
HIP-5 infusion pump is a compact structure instrument. It is designed with microcomputer technology. It has multi-alarm function and takes on the function of speedy transportation simultaneously. The product installs rechargeable battery can be use for the rescue work in field and in verge areas and satisfied with all kind of needs of hospital. It is mainly use as phleboclysis and chemotherapy infusion in the department of internal medicine, surgery, emergency, pediatrics, gynecology and department of blood, ICU monitor ward, CCU monitor ward and so on.
Specification:
| Work condition | Power supply | AC220V±22V,50HZ±1HZ |
| Built-in battery | D.C.12V, the battery can be used continuously for 2 hours after full charged (24hours) | |
| Environmental condition | temperature -5ºC~+40ºC relative humidity ≤80%RH | |
| Atmospheric pressure | 860hPa~1060hPa | |
| Storage condition | temperature: -40ºC~+55ºC relative humidity ≤95%RH | |
| Basic parameter | Outline size (cm) | 14(L)x15(W)x22(H) |
| Weight | about 2.5kg | |
| Power consumption | ≤25VA | |
| Flow rate options | 1ml/h~999ml/h, in 1ml/h increment | |
| Occlusion pressure | 60~90 kPa | |
| Flow rate error | ±5% | |
| Alarm | occlusion, empty, low battery, standby, air in line, door open, motor troubles | |
| Function | infusion amount setting, power indication, optional alarm sound volume, KVO (keep vein open), occlusion pressure adjustment, flow rate level adjustment |
Advantages:
1. Available all brand of the standards IV sets, the pump has 120 levels adjustment to keep high precision.
2. Three levels occlusion pressure adjustment.
3. The accurate ultrasonic bubble detector detects the bubble intelligent, safe and reliable.
4. Double confirmation function when flow rate≥300ml/h, make safer and avoid misoperation.
5. Anti-reverse function on motor to avoid upstream, make safer for patient during infusion.
