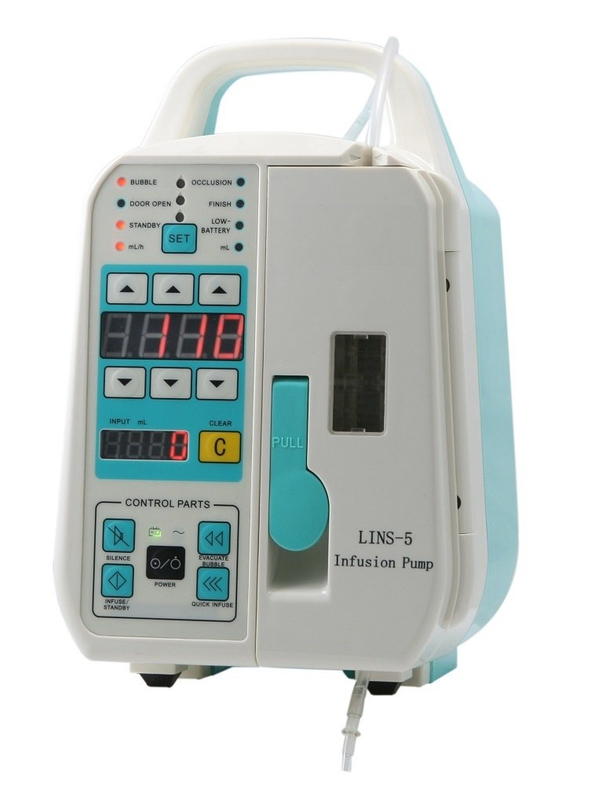

LINS-5 Infusion Pump
Introduction: LINS-5 infusion pump is a compact structure instrument. It is designed with microcomputer technology. It has multi-alarm function and takes on the function of speedy transportation simultaneously. The product installs rechargeable battery can be use for the rescue work in field and in verge areas and satisfied with all kind of needs of hospital. It is mainly use as phleboclysis and chemotherapy infusion in the department of internal medicine, surgery, emergency, pediatrics, gynecology and department of blood, ICU monitor ward, CCU monitor ward and so on.
| Work condition | Power supply | AC220V±22V,50HZ±1HZ |
| Built-in battery | D.C.12V, the battery can be used continuously for 2 hours after full charged (24hours) |
| Environmental condition | temperature -5ºC~+40ºC
relative humidity ≤80%RH |
| Atmospheric pressure | 860hPa~1060hPa |
| Storage condition | temperature: -40ºC~+55ºC
relative humidity ≤95%RH |
| Basic parameter | Outline size (cm) | 14(L)x15(W)x22(H) |
| Weight | about 2.5kg |
| Power consumption | ≤25VA |
| Flow rate options | 1ml/h~999ml/h, in 1ml/h increment |
| Occlusion pressure | 60~90 kPa |
| Flow rate error | ±5% |
| Alarm | occlusion, empty, low battery, standby, air in line, door open, motor troubles |
| Function | infusion amount setting, power indication, optional alarm sound volume, KVO (keep vein open), occlusion pressure adjustment, flow rate level adjustment |
LINS-5 Infusion Pump's Advantages
1. Available all brand of the standards IV sets, the pump has 120 levels adjustment to keep high precision.
2. Three levels occlusion pressure adjustment.
3. The accurate ultrasonic bubble detector detects the bubble intelligent, safe and reliable.
4. Double confirmation function when flow rate≥300ml/h, make safer and avoid misoperation.
5. Anti-reverse function on motor to avoid upstream, make safer for patient during infusion.
6. When the pipe broken, the medicine liquid will not into the pump.
7. Adopts imported main spare parts: Japan Toshiba driver module, USA ATMEL and Japan NEC chip, good anti-interference function.
8. Auto-lock control panel during infusion, to avoid misoperation.
9. Able to set flow rate by single digit, tens digit and hundreds digit separately, not need to increase from single digit.
10. The bright & large LED screen could be clear seen far from 10 meters.
11. The transparent window in door could see infuse status.
12. Real-time display infused volume.
13. The light in the side of the door is convenient to operate in the nigh
14. KVO (Keep Vein Open) function
15. Bolus (Quick Infuse) function
16. Purge (Evacuate Bubble) function
17. Multi-alarm, make safer.
18. Portable, light weight only 1.8KG.
19. Easy to change the battery, only open the battery cover.
20. Good circuit design, consumption≤10VA.
21. Suit for large range voltage up and down.
22. The chip in syringe pump is be processed by ourselves on SMT machine production line instead of by manual work, as weld every point by hand.
