HEA-510 ABS Plastic Hospital Furniture Medical Electric ICU Bed

The Hospital Furniture HEA-510 Multi-function Electric Bed is a high-performance medical bed designed for patient comfort and clinical efficiency. It features motorized adjustments, including backrest elevation and knee gatch positioning for optimal support, as well as height adjustment to facilitate caregiver access. The bed offers Trendelenburg and Reverse Trendelenburg functions for medical positioning, along with synchronized backrest and knee movement for smooth transitions. The manual CPR reset ensures rapid response in emergencies, while the electric brake enhances safety by locking the bed securely. Built with durable materials and intuitive controls, the HEA-510 is ideal for hospitals, rehabilitation centers, and long-term care facilities.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HEA-510

  • Healicom

Product Description

Hospital Furniture HEA-510 Multi-function Electric Medical Bed

5H


FEATURES:
Advanced durable & long-lasting heat-sensing touch panels.
*The inner protective railing touch panels allow patients to access bed control and adjust as needed for their level of comfort. Theouter protective railing touch panels & foot control panel allow caregivers to access bed control and lock for safety purpose.
The PP head & foot boards are integrally blow-molded, easy to detachand clean
4 damping PP protective railings, with built-in angle indicators, controlled bygas springs. When protective railings falland retract under the bed board,can achieve seamless connection with the transfer stretcher.
Extendable abdomen & knee sections on bed board.
One touch electric brake.
IV pole sockets (one on each comer).
Battery backup for power outages.
Standard accessory: IV pole


SPECIFICATIONS :
Material powder coated steel bed frame, top class ABS &PP plastic
Overall dimension 2240mm(*1050mm(W*500mm-750mm
Bed board dimension 1940mm(L)*900mm(W)
Backrest 0-65°
Knee patch 0-40°
Trend./Reverse Trend 0-12°
HI-LOW 750mm -500mm
Net weight 148KG
CPR
Safe load capacity <250KG
Castors 360 "swivel castors (Dia. 150mm), with electric brake

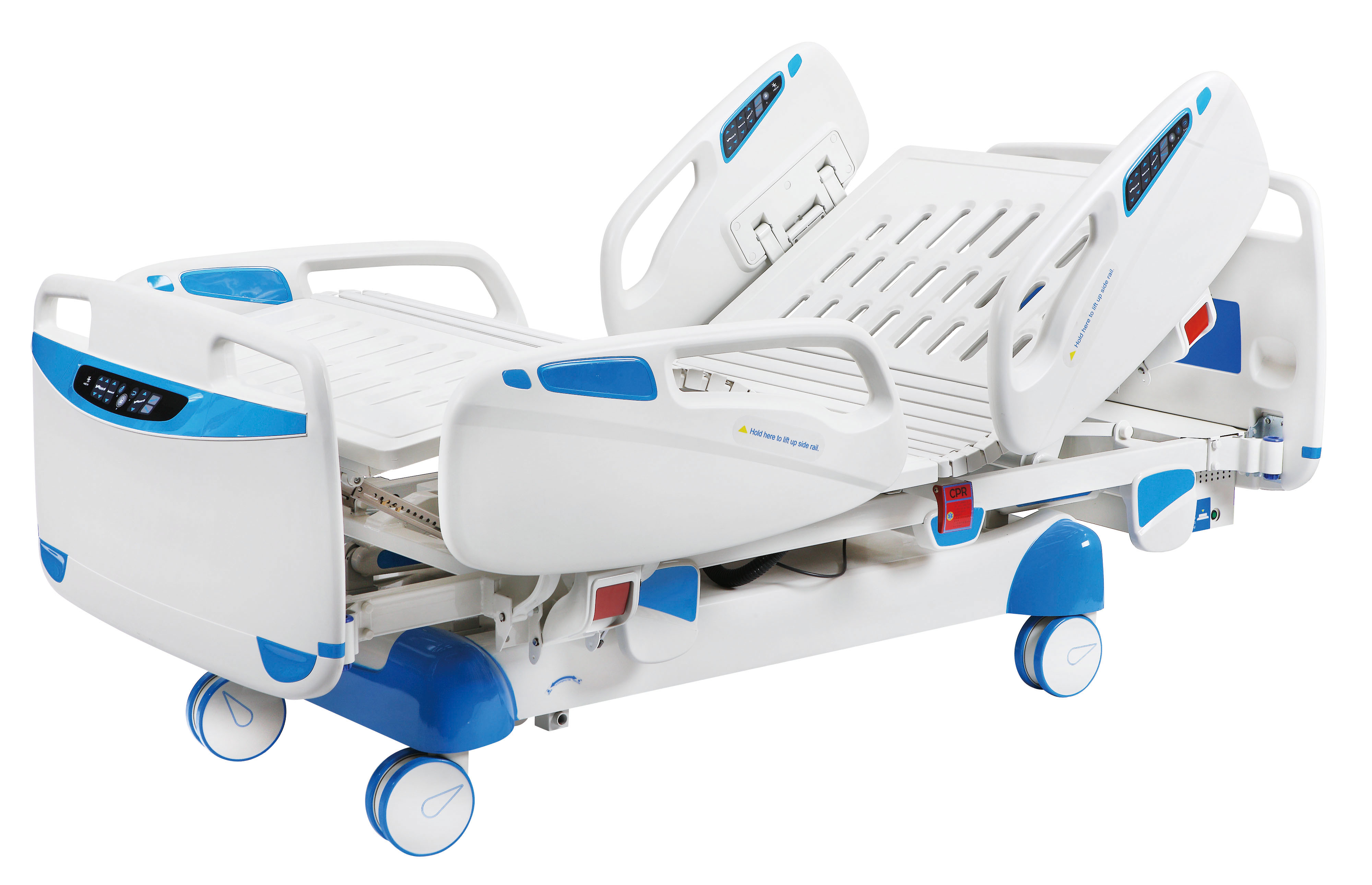

LS-EA5028C (2)

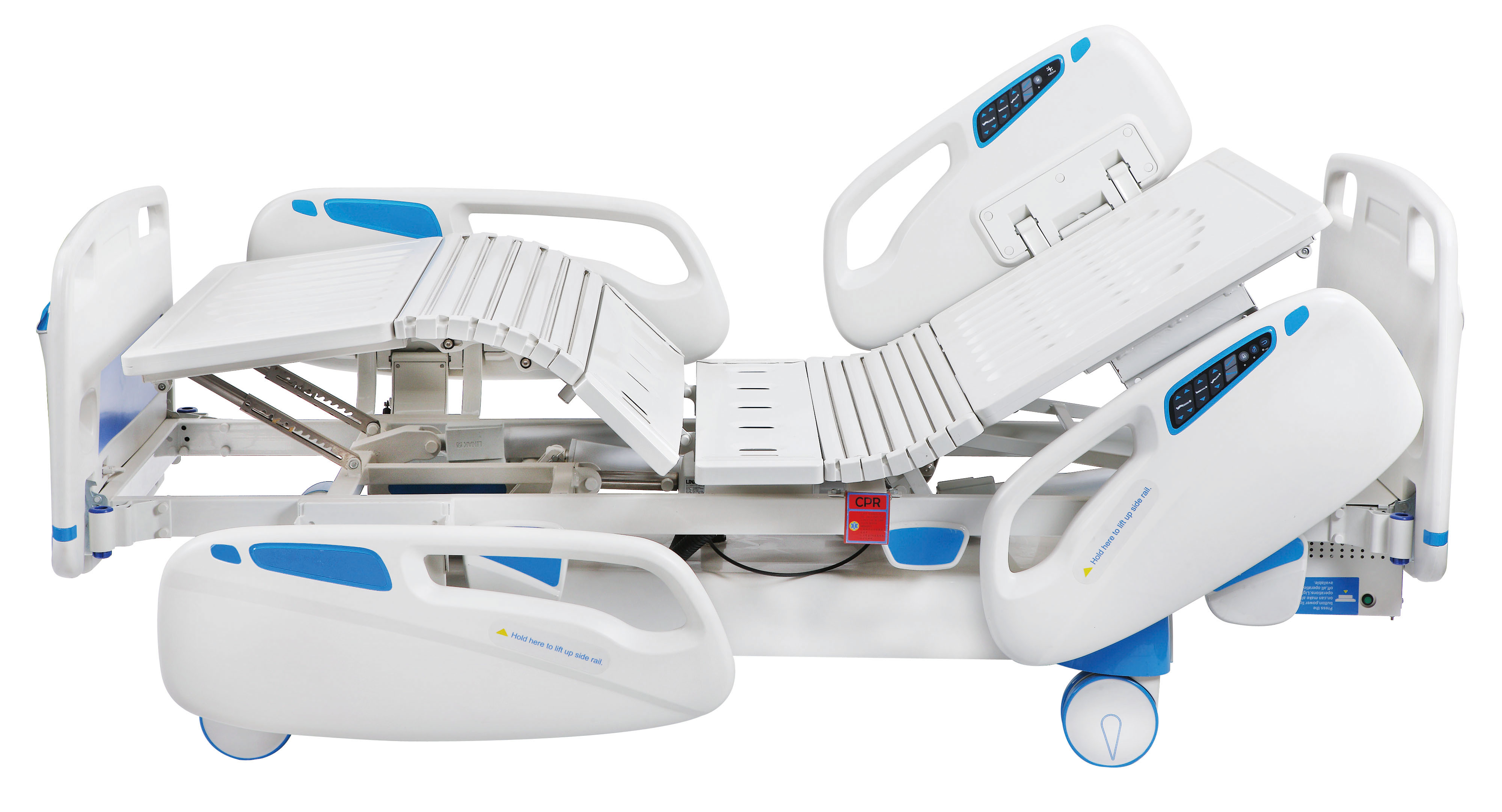

LS-EA5028C (3)

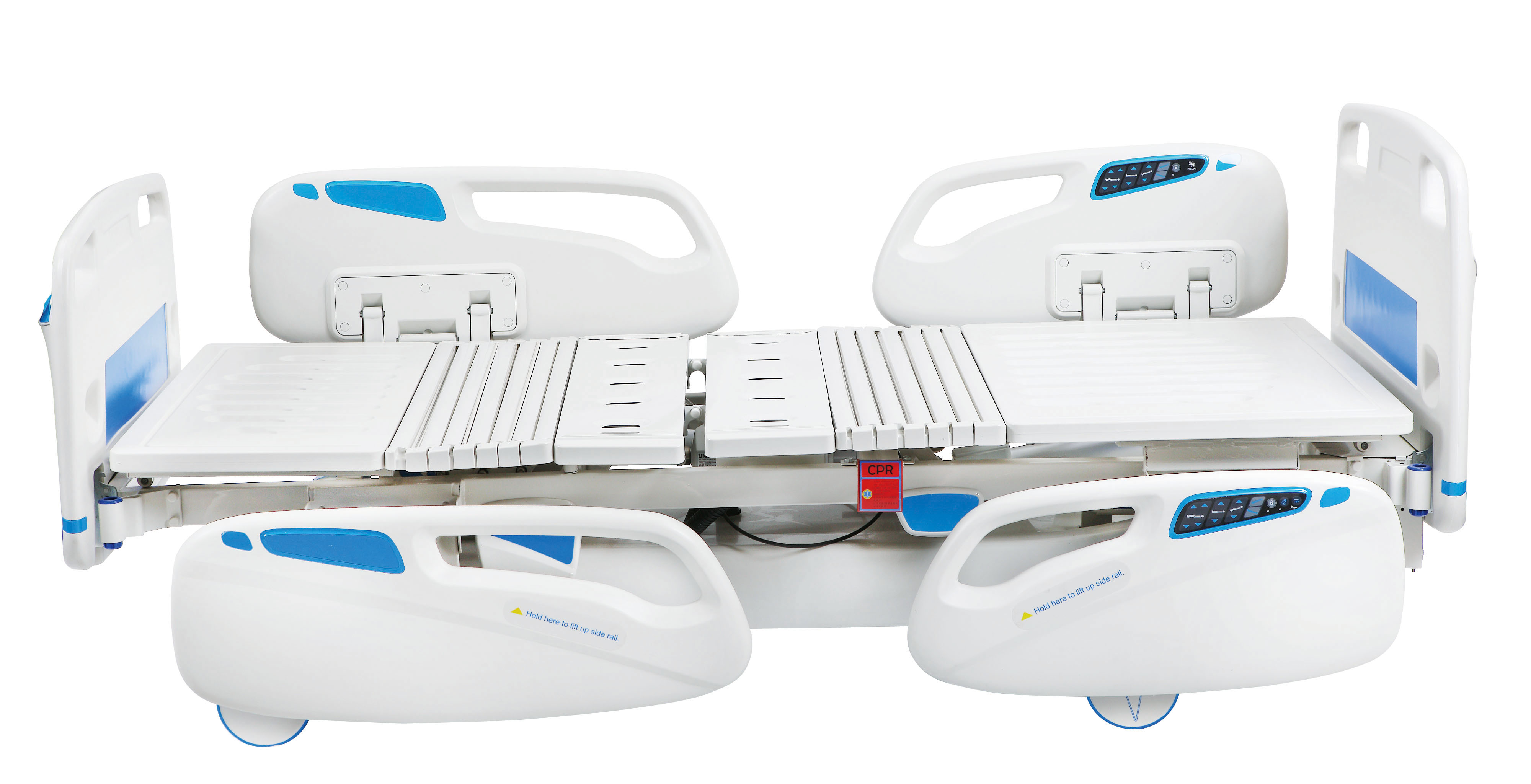

LS-EA5028C (4)

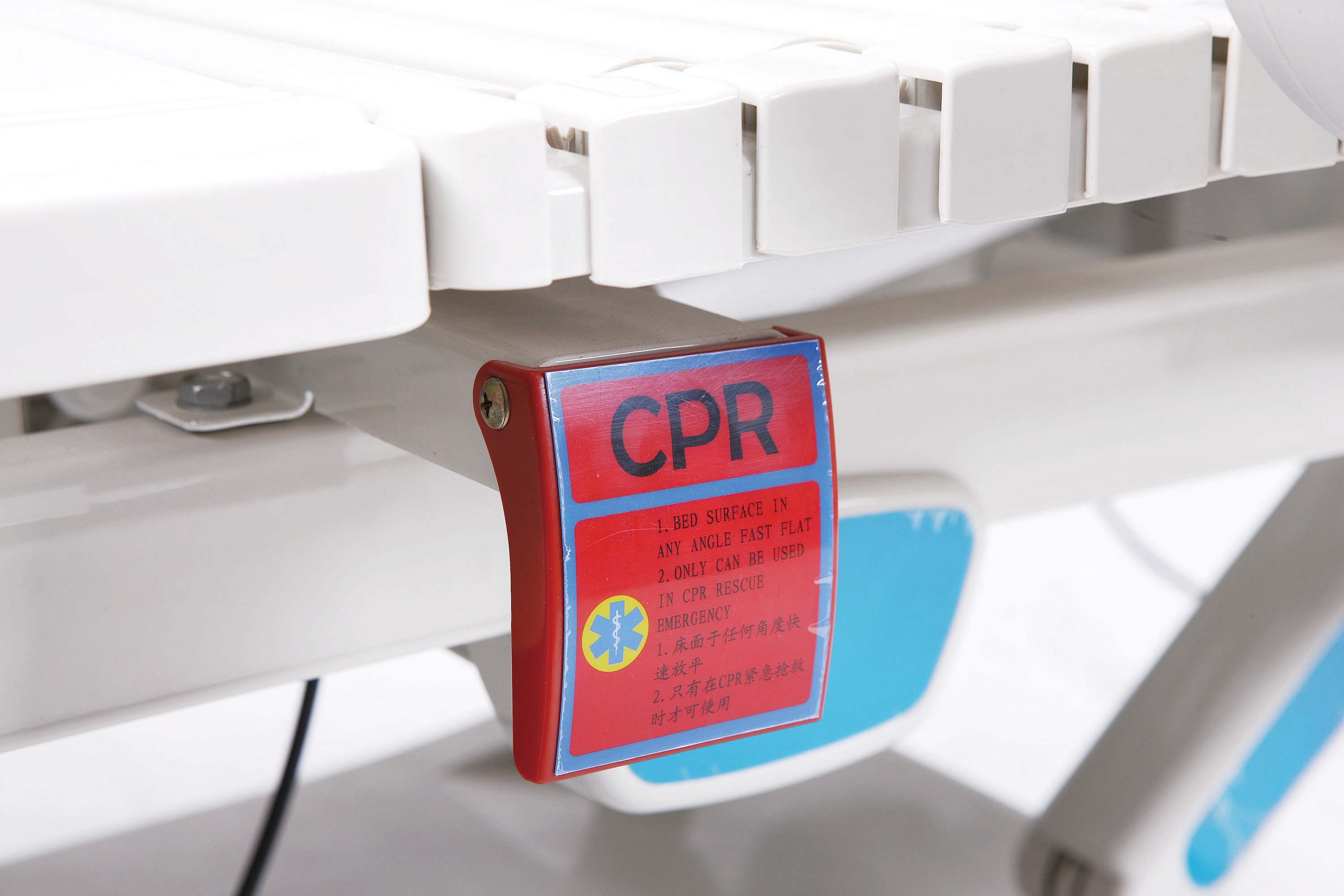

LS-EA5028C (8)
