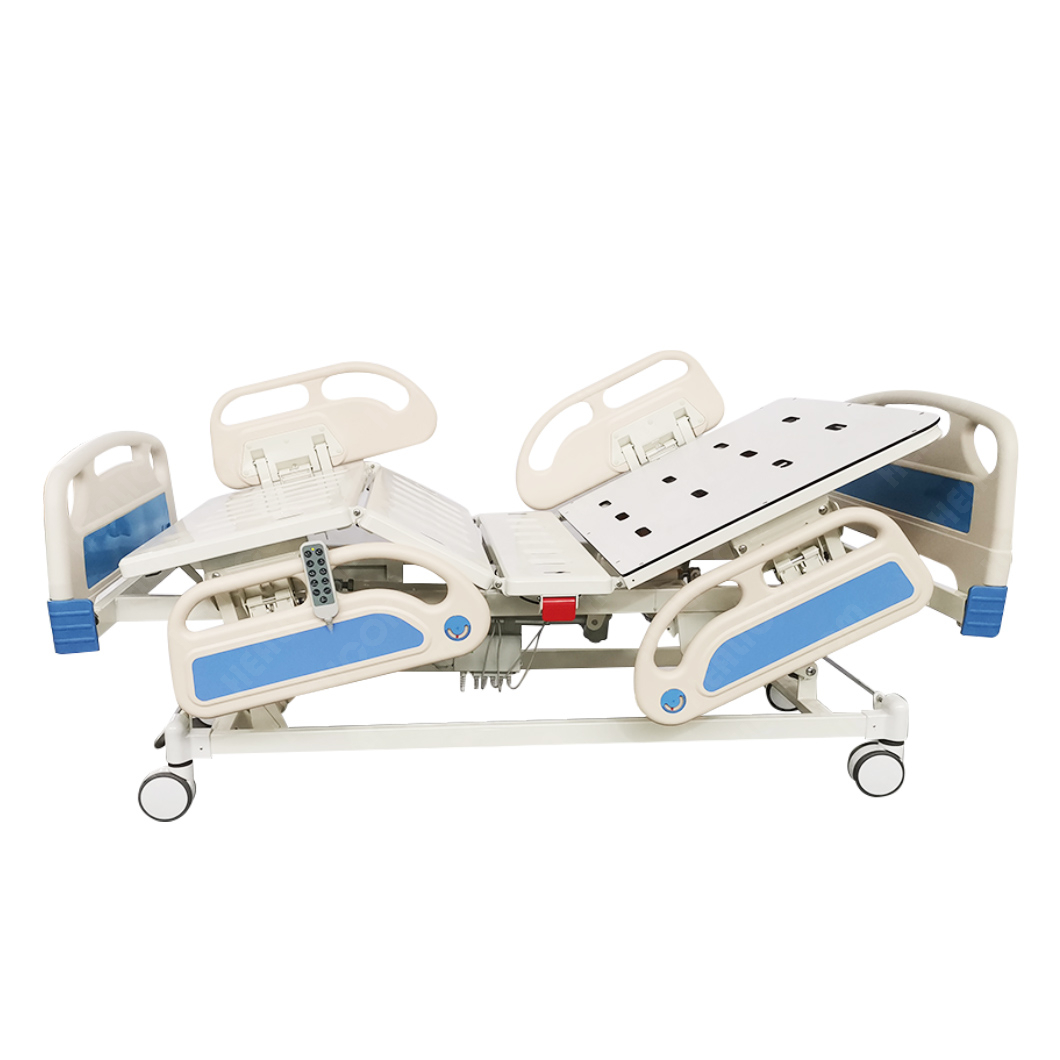

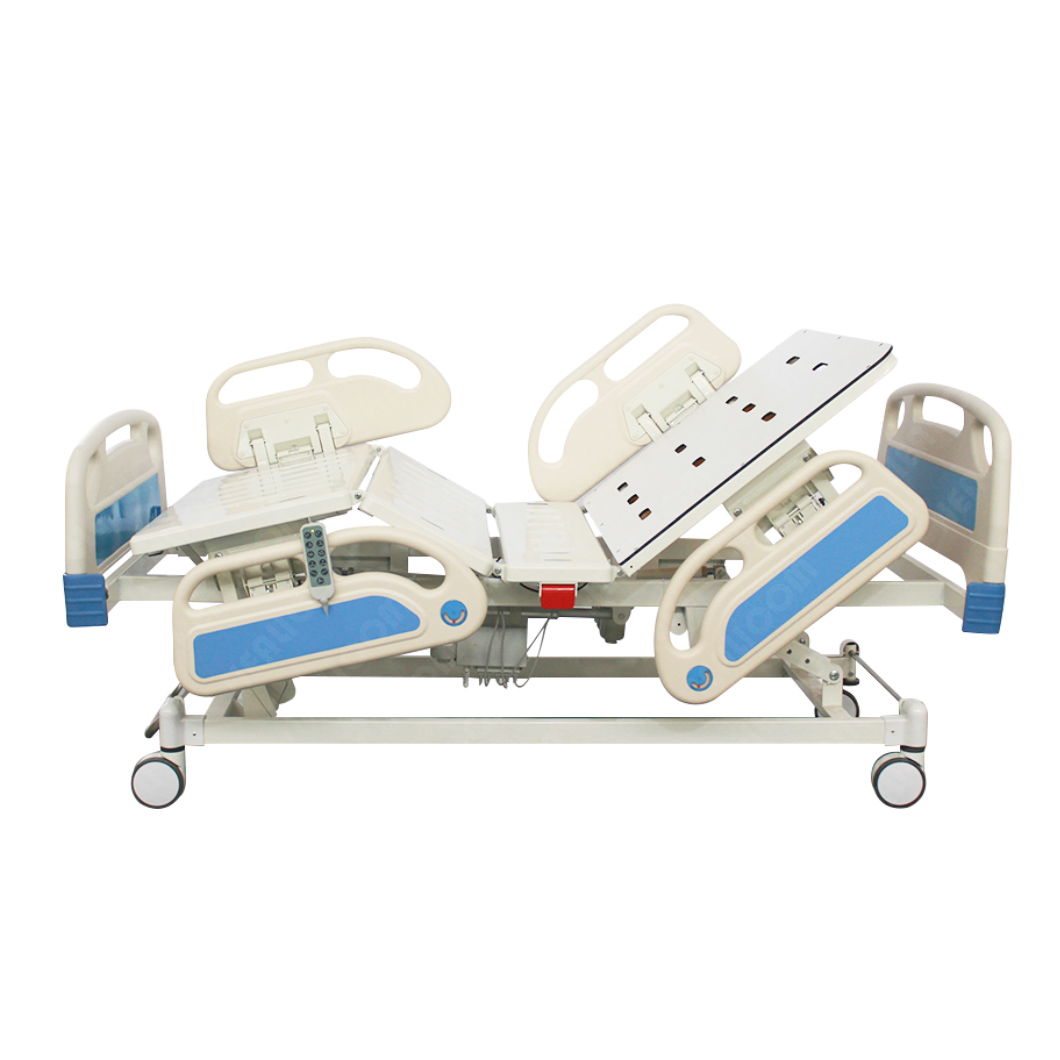

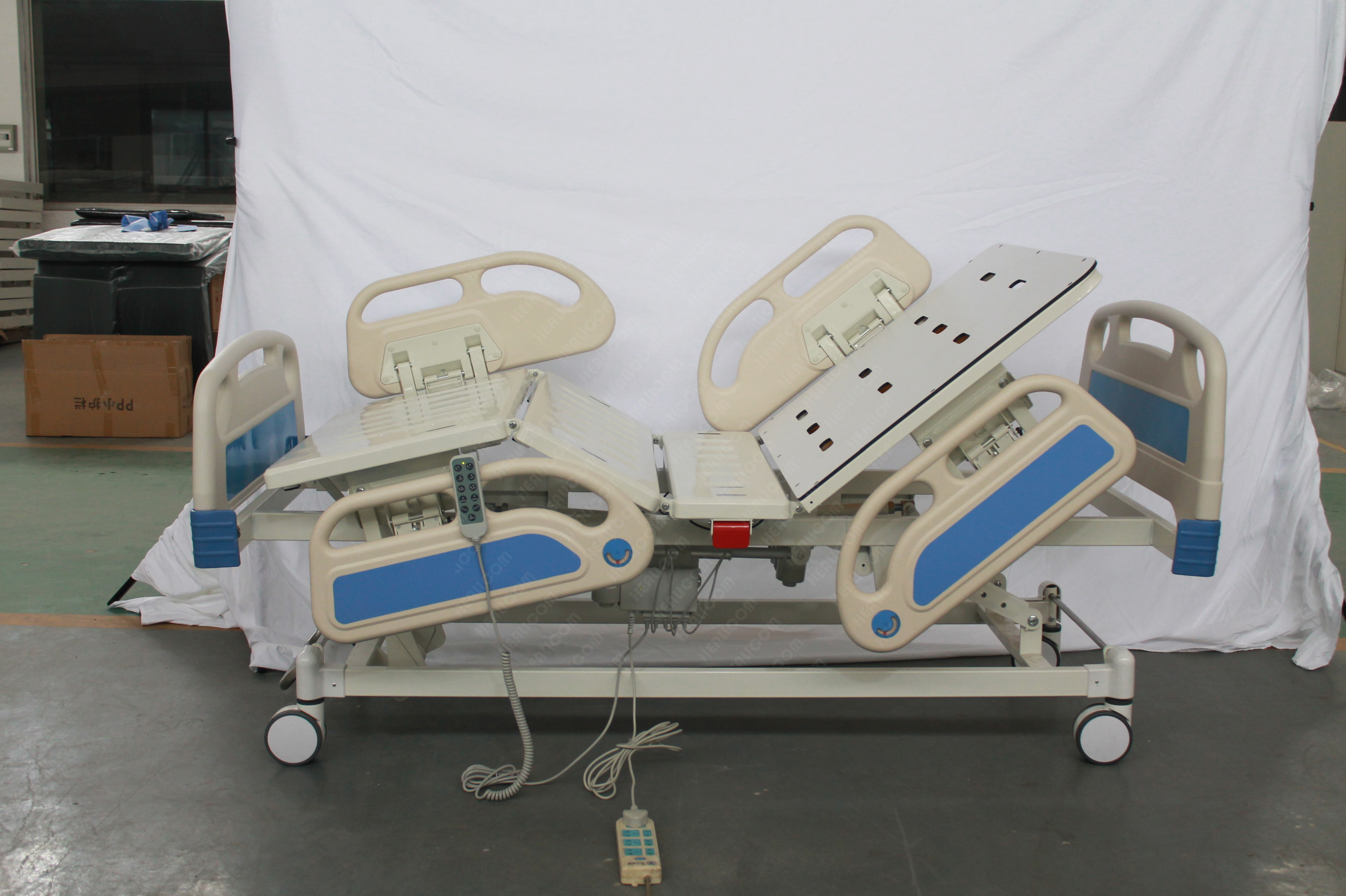

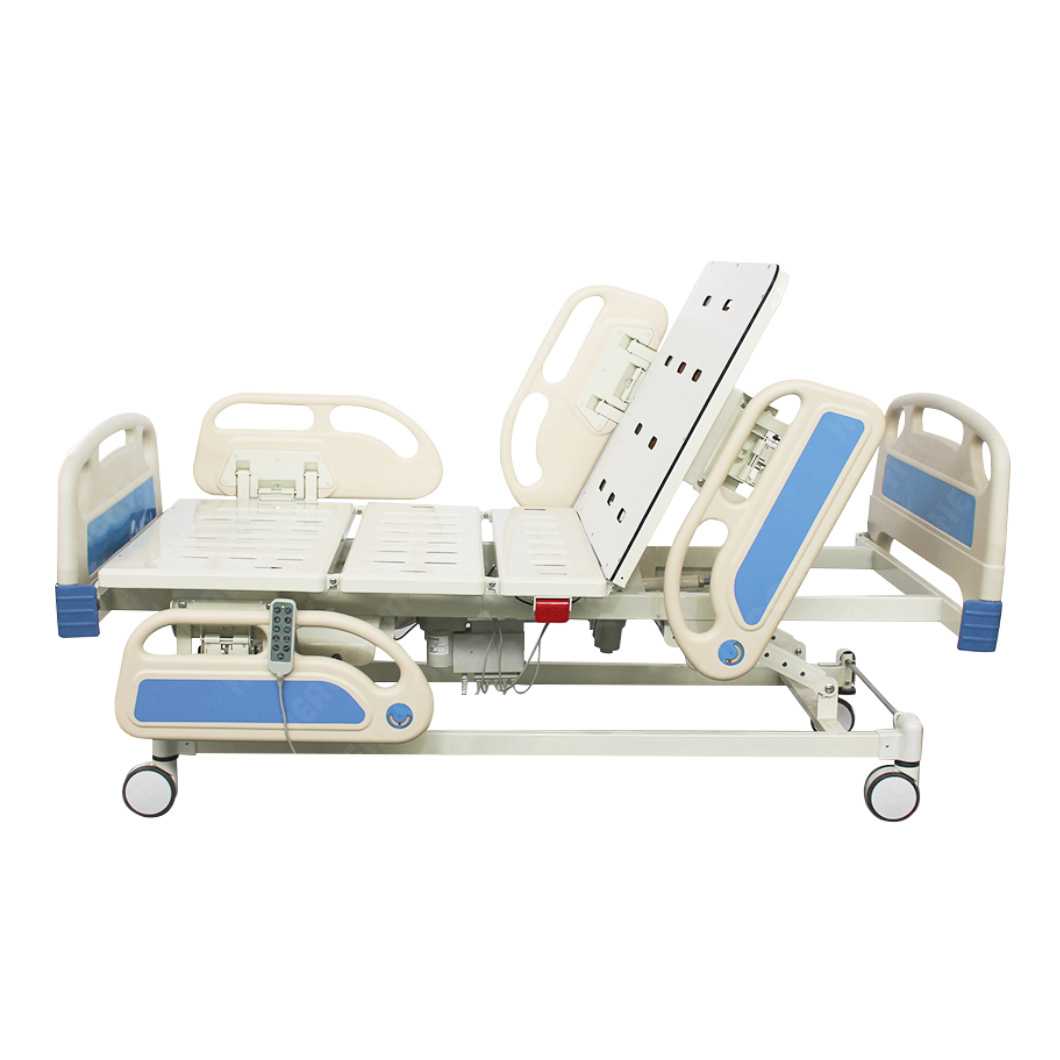

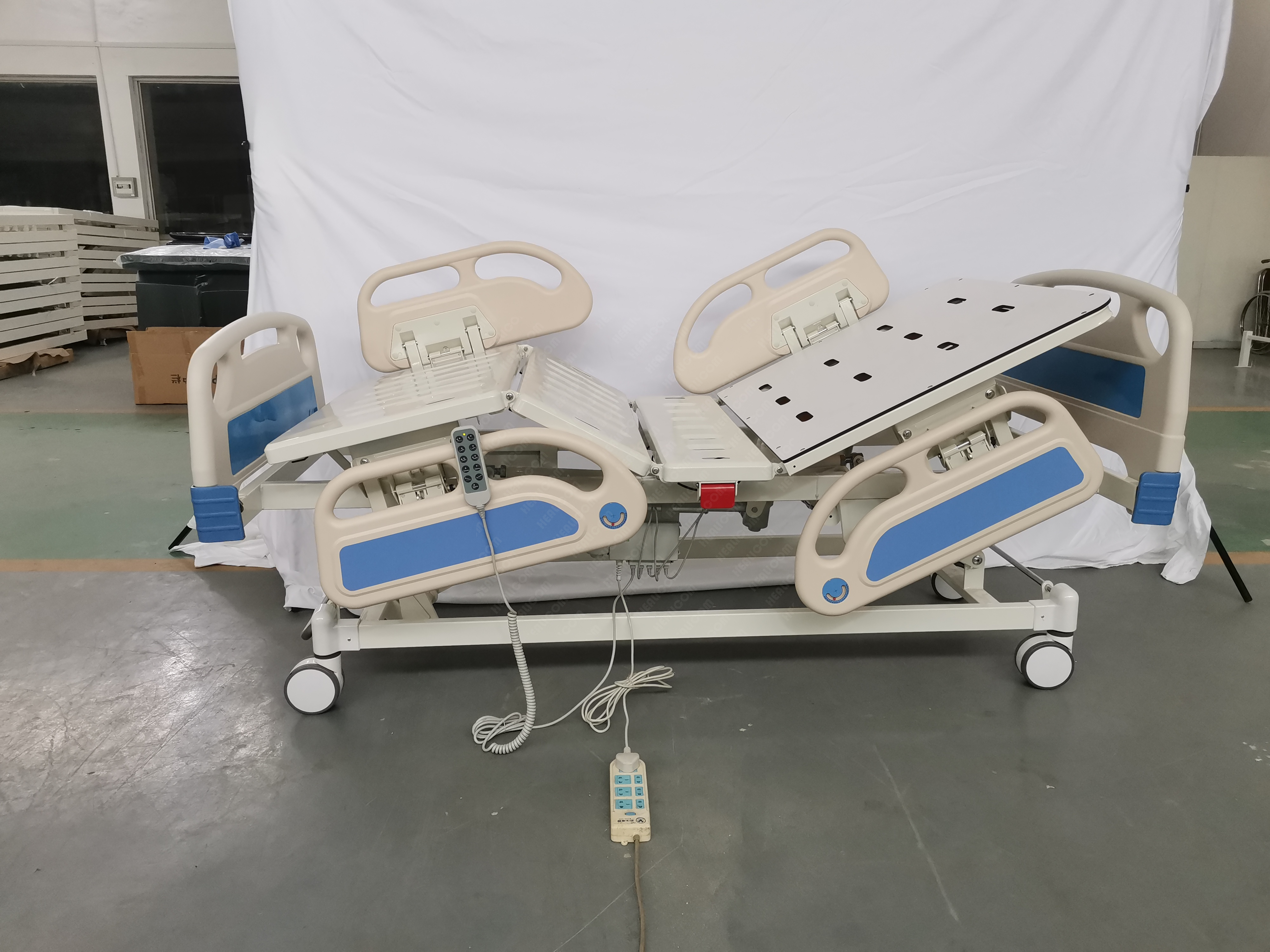

DA-2-2 Hospital Furniture Five Function Electric Adjustable Patient ICU Bed

DA-2 ICU Five function electric bed , with ABS board & side rails , CPR function&battery , X-ray function&photo box, IV pole, with mattress

Specification :
1.The material of the five function electric bed is cold steel , which had been epoxy coated . anti-rust also easy to clean. the whole platform is consisted by four sections, the thickness of the bed frame is 1.2mm , the thickness of the platform is 1.2 mm .
2.With high quality ABS head&foot board , detachable and durable . also the self-lock had been equipped on the board .
3. with fold able ABS side rails, four parts, also the gas spring had been included , the side rails can be moved freely .
4. The back part can be adjust 0°-75° (±5° ) the knee part can be adjust 0°-45° (±5° ) , height can be adjust from 450mm to 740mm . trendelengurg and reverse trendenlenburg 0-12° (±2°) ，all of the functions are controlled by electric .
5. With high quality motors, four pieces , the warranty time of the motors is 12 months after the delivery .
6. Luxury castors with central locking system , 4 pieces*125mm (dia ) .
7.IV pole holes had been equipped at the corner of the bed . with stainless steel IV pole , the height of the IV pole can be adjusted by manual , with four hooks .
8. With X-ray functions , also the photo box had been equipped at the back part of the bed; also the CPR functions had been included , when we need , the can release the back part in a short time ; also the battery had been included , when power offer , the beds can be used as normal .
9. The net weight of the bed is 145KG .
10. The safety load capacity of the bed is 220KG , the max weight capacity of the bed is 280kg .
