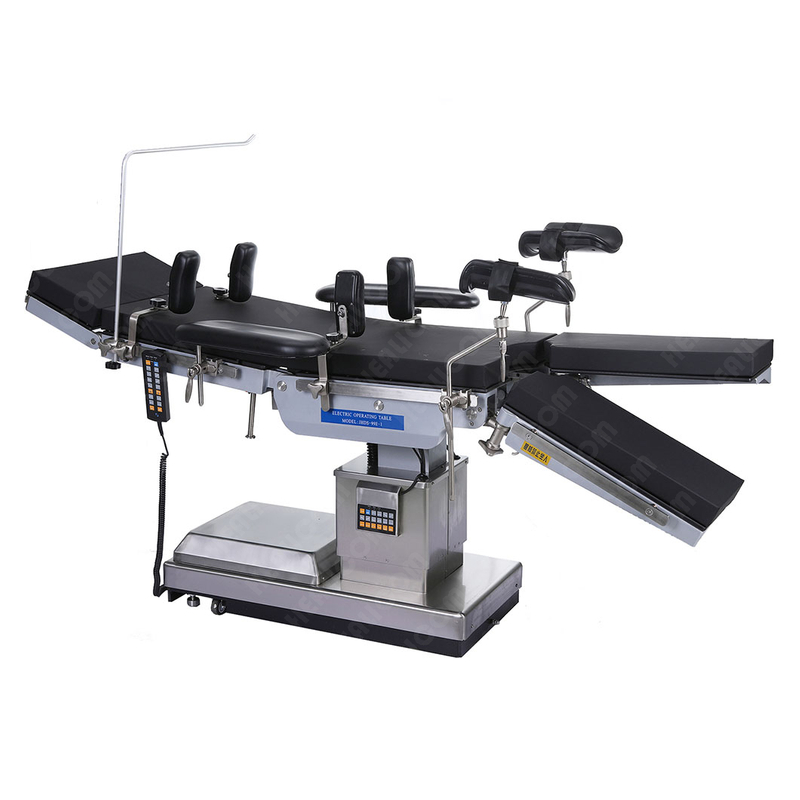

HDS-99E-1
Healicom
Product Description
1. Low lift and the distance of the mesa is 450mm.There is ample space for use with c-arm.
2. Vertical panning up to 530mm, do not need to reverse outpatient or adjust the table in advance to General c-arm pivot to the patient and image review.
3. 4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems. (Only Model JHDS-99E-1 has this function).
4. It has emergency power. It can be used when the electric power is off.
5. In set waist bridge.

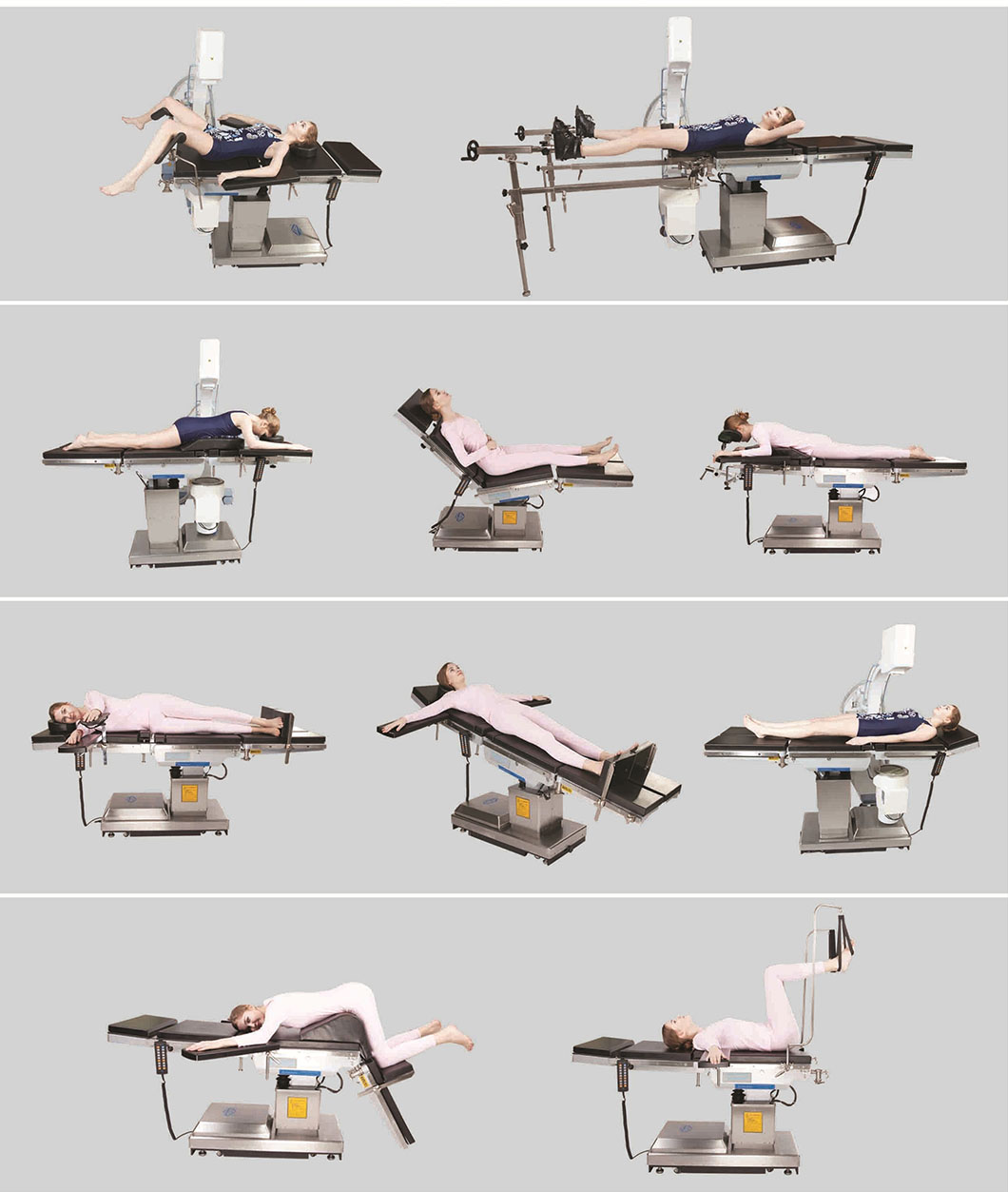

6. The mesa of the table can male V style body position 100°,Anti-V 220°.
7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.
(Optional Components).
8. Backup operating system.
| Technical Specifications | ||
| Dimension of table top | Overall Length | 2100mm |
| Width | 500mm | |
| Table top from floor | Min Height | 700mm |
| Max Height | 1150mm | |
| Adjust | 450mm | |
| Backward and Forward Movements | ≥530mm | |
| Adjustment of sections | Head Section Raised from the horizon | ≥45° |
| Head Section lowered from the horizon | ≥90° | |
| Kidney Bridge Elevated | ≥80mm | |
