HDS-3000
Healicom
Product Description

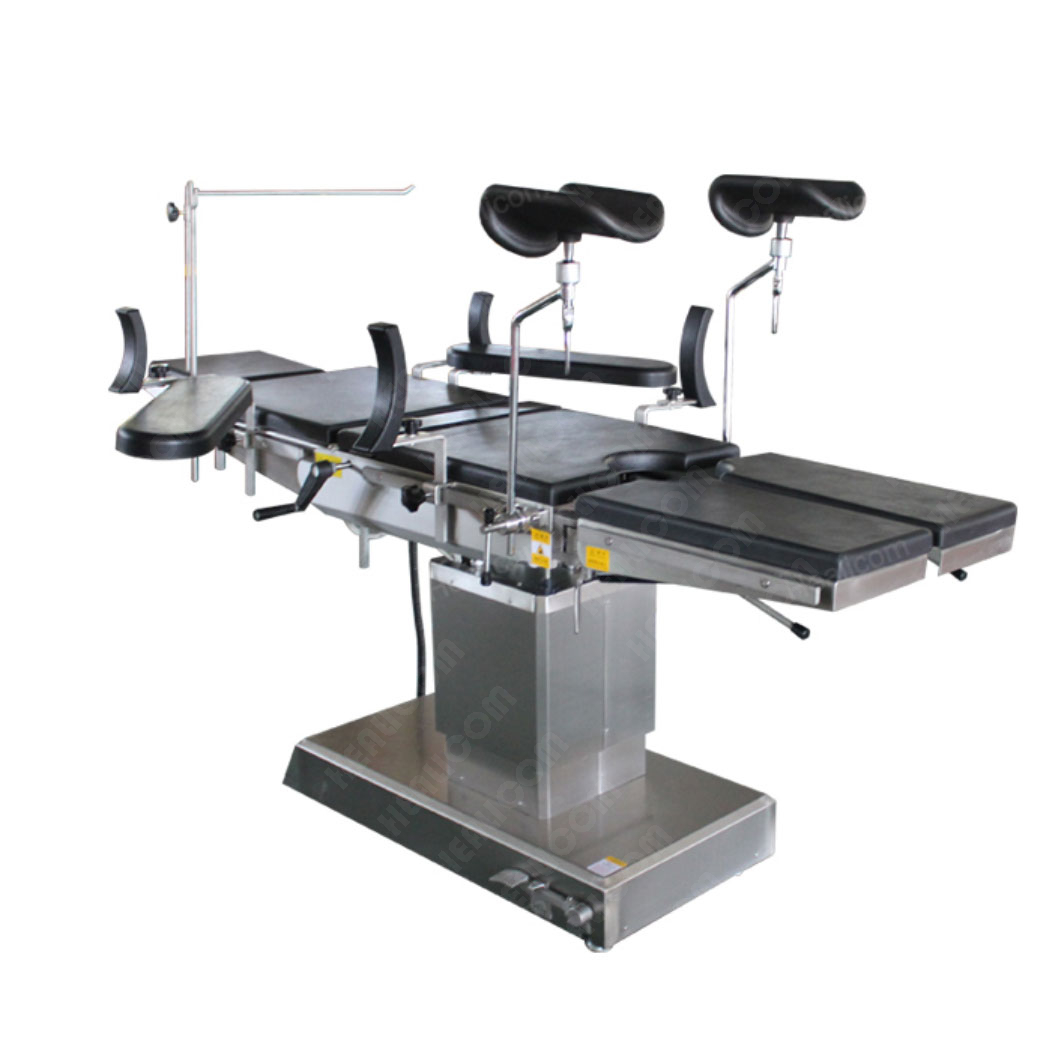

Product introduction: The electric comprehensive operating table is used for comprehensive operations in chest and abdomen, surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and gynecology, etc.
The product has unique advantages:
1. The main body position adjustments such as table top lifting, forward and backward tilt, left and right tilt are all realized by button operation and electric push rod transmission;
2. The leg plate can be detached, manually rotated, abducted, folded down, easy to adjust, very convenient for urological surgery;
3. The head and leg plates are detachable for easy operation and provide more flexible operation space;
4. The handheld manipulator uses 24V DC voltage, which is easy to operate, safe and reliable;
5. The operating table is made of medical grade 304 stainless steel, and the surface is treated with special matt, which is more modern and easier to clean;
6. High-strength stainless steel bottom cover, strong pressure resistance, anti-corrosion, and easy to clean;
Equipped with automatic charging device and accumulator to ensure that the operating table can be used normally in the event of an emergency power failure.
Technical Parameters | |||
Model | 3 functions | 4 functions | 5 functions |
Table length and width | 2020(±20)×500(±20)mm | ||
Table height: | Minimum 650( ± 20)---950( ± 20)mm (electric); | 730(±20)---maximum 1030(±20)mm (electric) | |
Longitudinal translation of the table | none | none | 300mm (electric) |
Left and right tilt of the bed (lateral tilt) | ≤20° (electric) | ||
The bed is tilted forward | ≤25° | ||
tilted back | ≤20° | ||
Folding on the back panel | ≤75° | ||
Folding down | ≤15° (gas spring) | ≥15° (electric) | |
Fold down the leg plate | 90° | ||
shaft type can be expanded | 180° detachable (manual) | ||
Rated load | 135kg | ||
Pan function | none | ||
