HDE-100
Healicom
Product Description

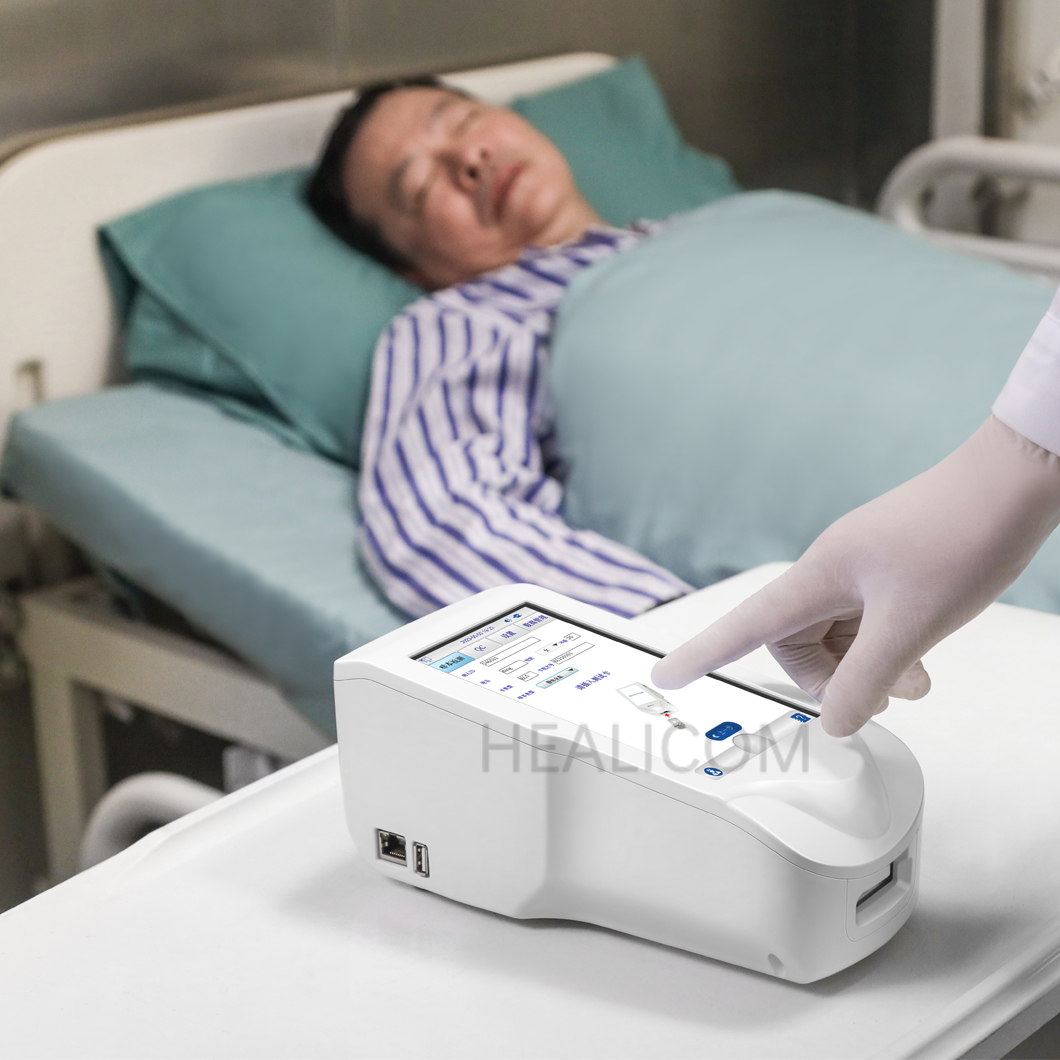

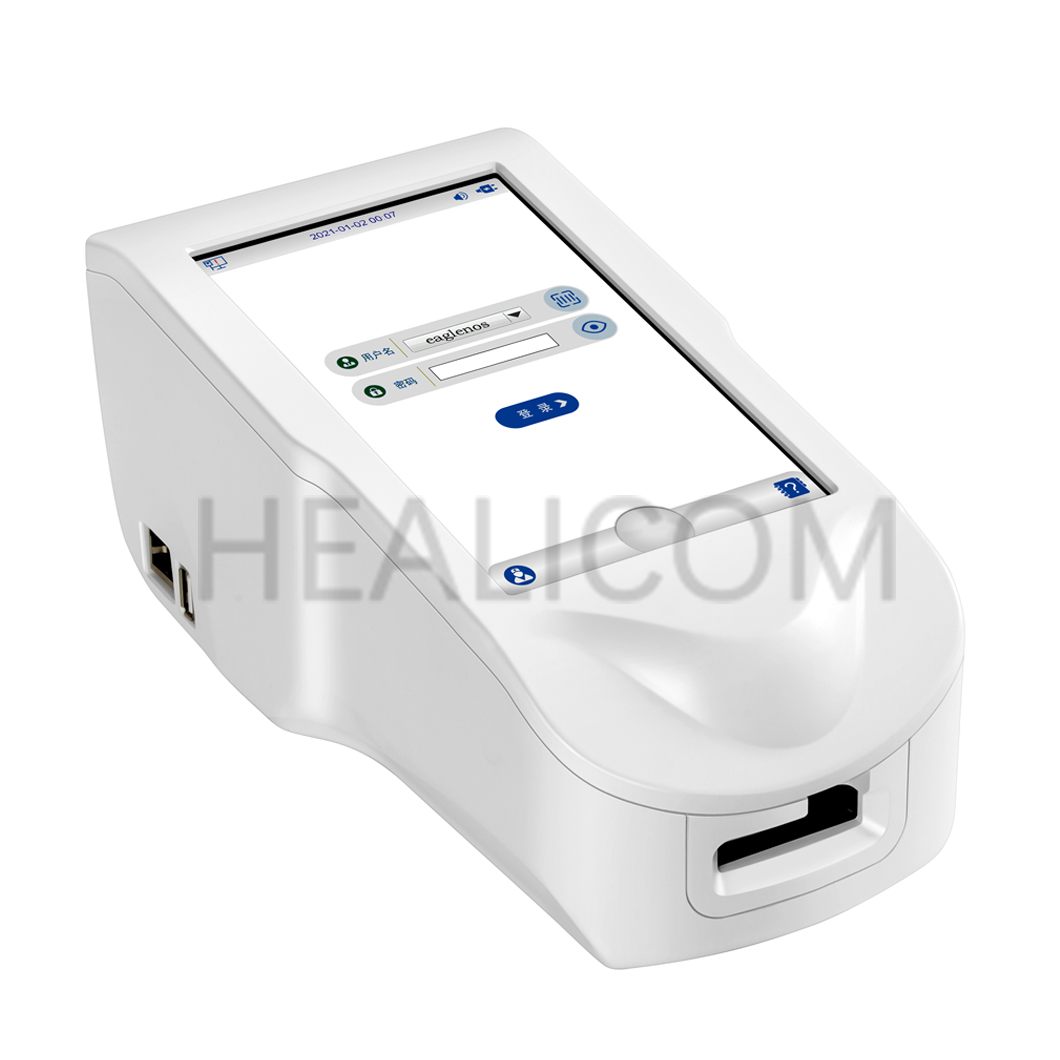

High-precision HDE-100 7 Inch Touch Color Screen Dry Electrolyte Analyzer
Advanced Features:
Concurrent testing K+, Na+, Cl-, iCa2+, and iMg2+.
• Ionized Magnesium (iMg2+) testing.

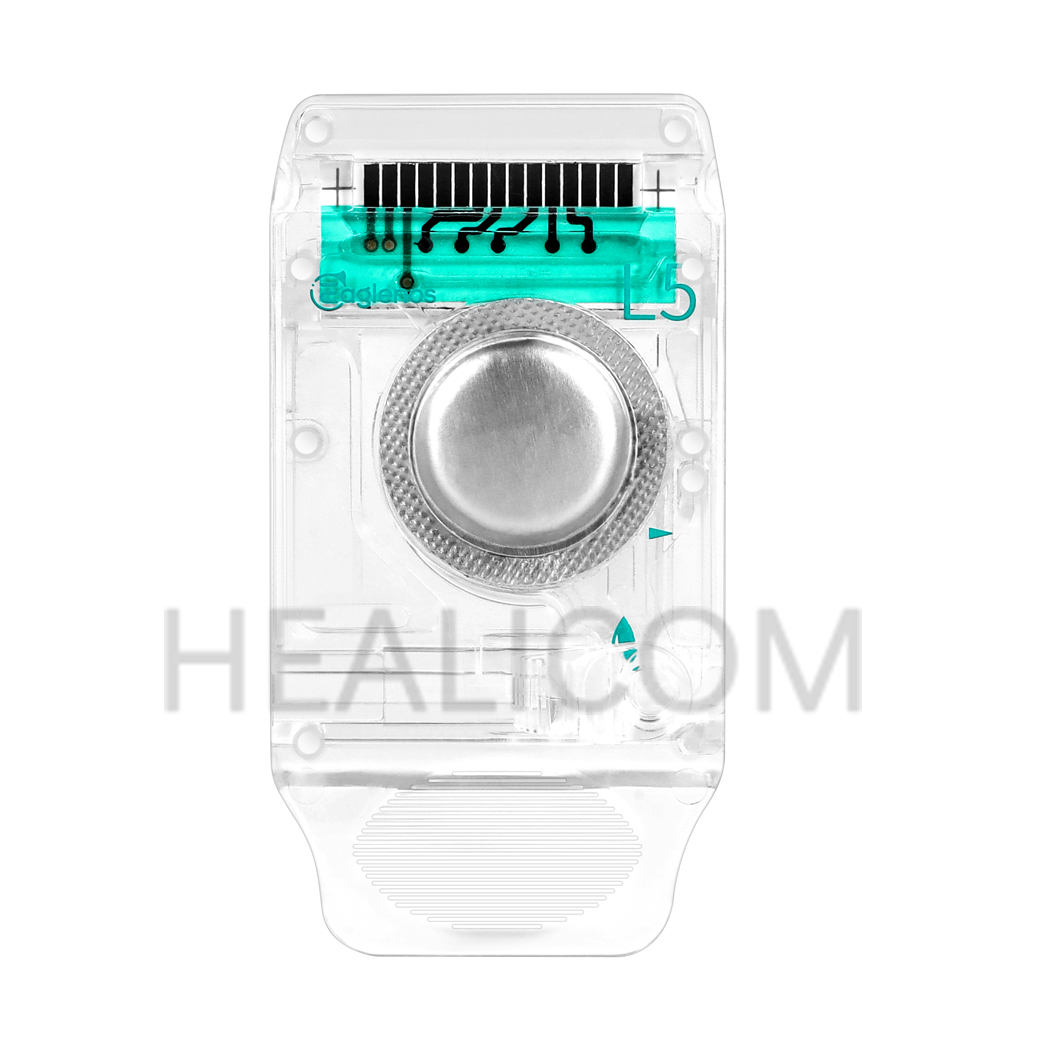

• Dry electrochemical technology with a patented pellet structure design.
• Exclusive molecular probes and algorithms.
Efficiency and Accuracy
• Swift calibration and testing in under 5 minutes.
• Built-in calibration solution.
User-friendly Experience

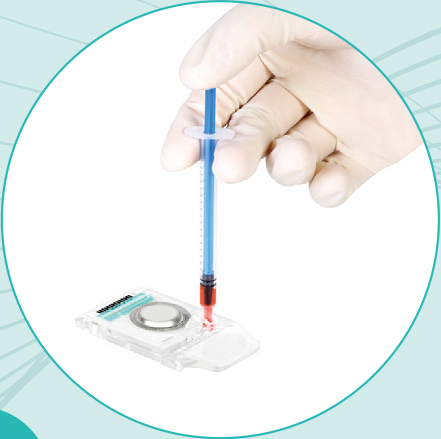

• Whole blood testing for instant results.
• Minimum sample volume requirement (100μL).
• No fluidic pathways for hassle-free operation and minimal maintenance.
• Room temperature stored test cartridges (up to 8 months).
Portability and Data Storage
• Compact and portable design for on-the-go use.
• Over 50 consecutive tests on a single charge with the built-in lithium battery.

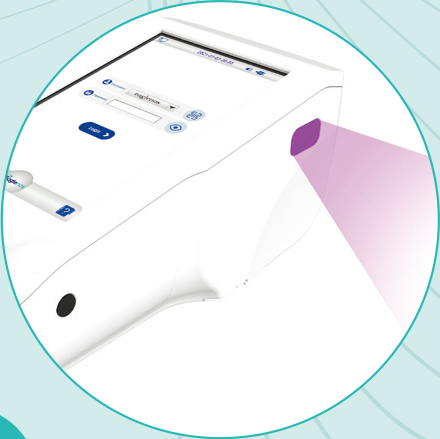

• Built-in barcode scanner and thermal printer.
• Stores over 99,999 records.
• Connection to LIS/HIS.

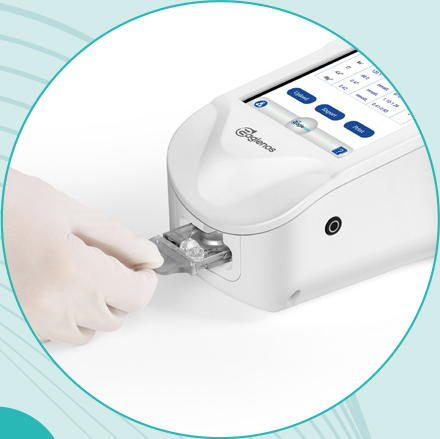

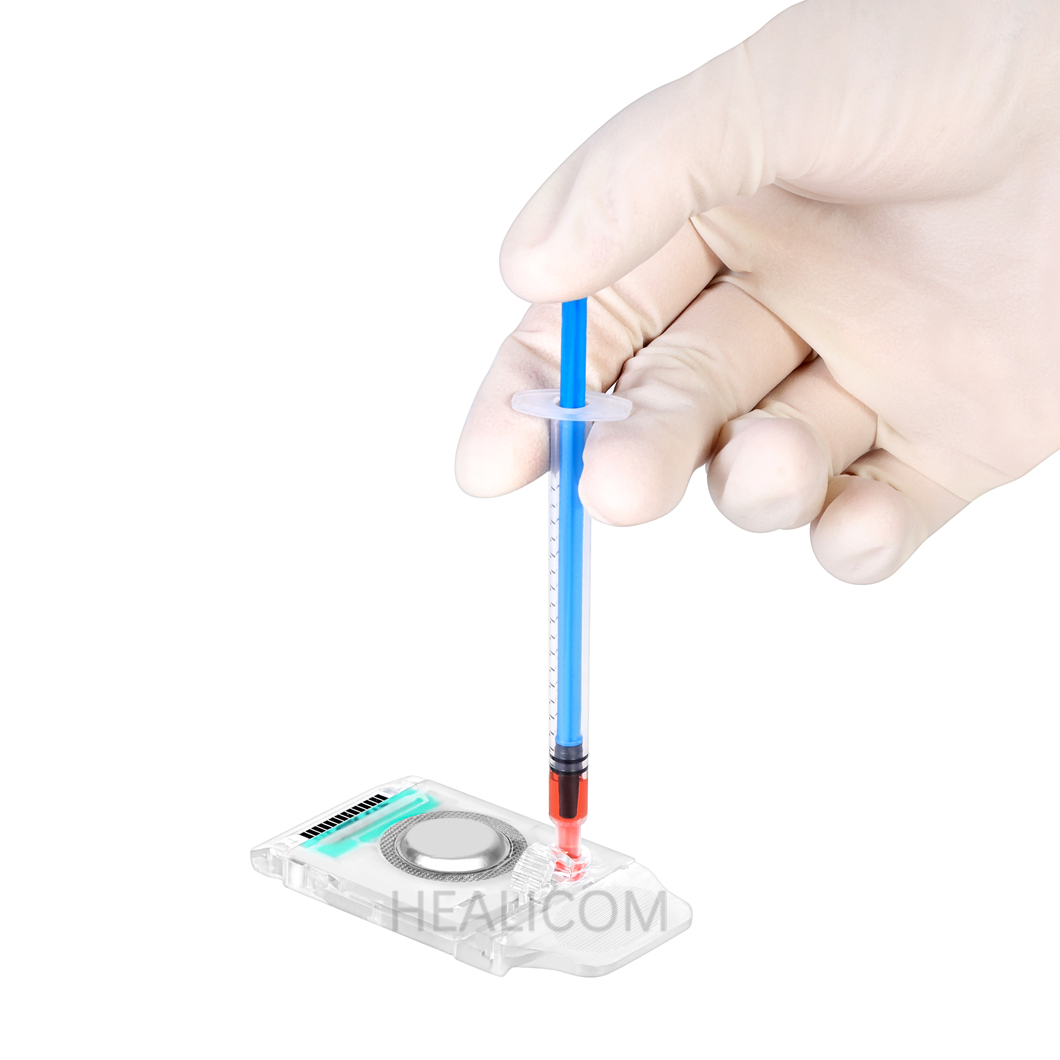

How to use
| Performance | ||||
| Parameter | Accuracy | Precision | Stability | Test Range (mmol/L) |
| K+ | ±3.0% | ≤1.5% | ≤2.0% | 1.0-15.0 |
| Na+ | ±3.0% | ≤1.5% | ≤2.0% | 100-200 |
| C1- | ±3.0% | ≤1.5% | ≤2.0% | 65-160 |
| iCA2+ | ±5.0% ±0.05% mmol/L | ≤1.5% | ≤3.0% | 0.25-4.00 |
| iMg2+ | ±5.0% ±0.05% mmol/L | ≤3.0% | ≤3.0% | 0.2-1.5 |

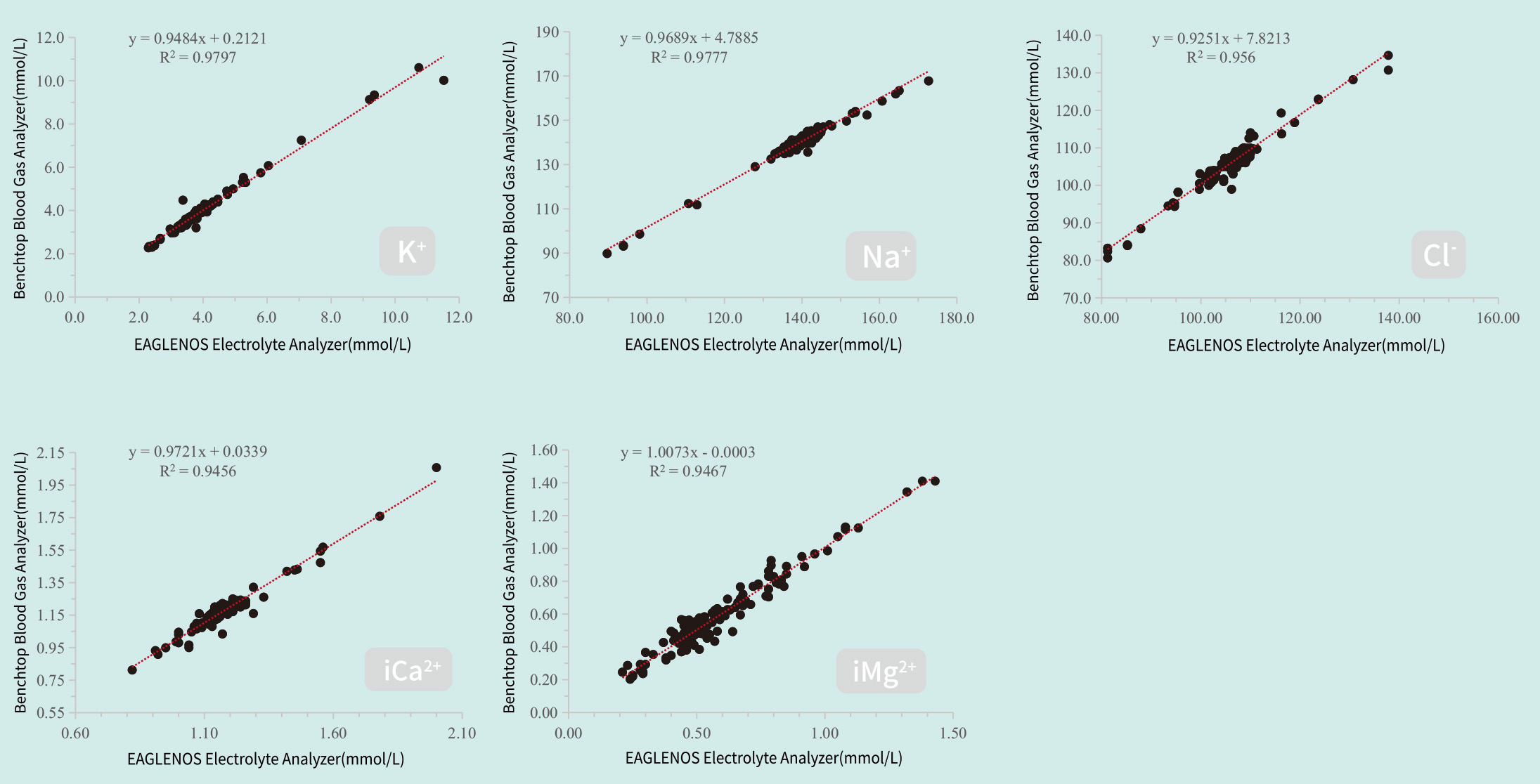

Accuracy Validation
The accuracy of Eaglenos Electrolyte Analyzer has been validated by linear regression analysis showing a strong positive, linear relationship between two analyzers (R2 > 0.94 for all parameters), demonstrating the accuracy of our analyzer for K+, Na+, Cl-, iCa2+ and iMg2+ measurements.
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
