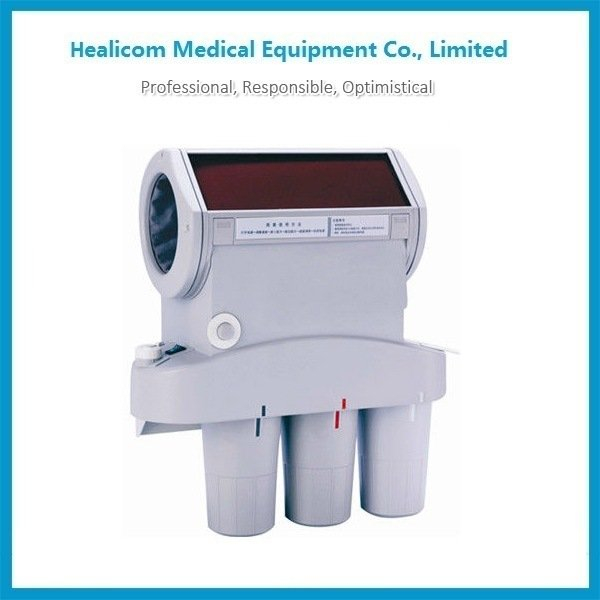

Product detail The product is oral X-ray film bath equipment, which is produced by our corporation with optimized and modified technology. It is produced strictly according to international standards, and its main parts are selected from products of the developed countries. The product has many characteristics such as small volume, safety and stability, rapid and convenient operation. This machine may be used in the condition of open rooms.
Introduction The oral automatic X-ray film bath equipment is a total automatic and wall mounted type. The film is bathed automatically through three steps: developing, fixing and bathing. The time developing films needed can be selected in the designing range. During the bathing process, delivery mechanism adopts anti-flaming ABS engineering materials. It has easy cleanliness and maintenance, stable running, small volume, operators do not touch the developers and fixers directly, convenient and safe operation and so on characteristics.
Main Technical parameters 1. Normal working conditions (a). Surroundings temperature: 10°C~30°C; (b). Relative humidity: ≤70%; (c). Atmospheric pressure: 700hPa~1060hPa; (d). Voltage of electrical source: 220V±10V; (e). Frequency of electrical source: 50Hz±1Hz. 2. Surroundings of transportation and reservation (a). Surroundings temperature range: -40°C~+55°C; (b). Relative humidity range: ≤93% (c). Atmospheric pressure range: 500hPa~1060hPa. 3. Performance Storage conditions: 5-40 degrees Celsius, relative Humidity (1) Processing time of film The time which develops films needed is 2min~8min, and can be accommodated continuously. The error is within±10%. (2) Light leaking During the bathing process, light leaking is not permitted. (3) The stability of film delivery The delivery mechanism of film should not lacerate or lock films. (4) The timing panel of transit film The timing panel of transit film adopts the number 1~12 represents month, each scale represents 10 days. 4. The product structure It is composed of Main body, Light-tight box, Delivery mechanism of film, Liquid cup and Screen and so on. 5. Input power: 4VA.
Nominal Input power
Film Run Through Time
Weight of unit
42× 19× 45(cm)
